Scan code: LN107898 Manufacturer code: B460M-A PRO

MSI Intel B460M-A PRO Micro-ATX Motherboard

MSI B460M-A PRO, Intel B460, S 1200, DDR4, SATA3, M.2, GbE, USB 3.2 Gen1, Micro-ATX

Thumbnail 1 : MSI Intel B460M-A PRO Micro-ATX Motherboard Thumbnail 2 : MSI Intel B460M-A PRO Micro-ATX Motherboard Thumbnail 3 : MSI Intel B460M-A PRO Micro-ATX Motherboard Thumbnail 4 : MSI Intel B460M-A PRO Micro-ATX Motherboard
Scan code: LN107898 Manufacturer code: B460M-A PRO
£69.98
Order now and get it tomorrow, Wed 30th Sep
Delivery Options
  • By DPD On 30th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

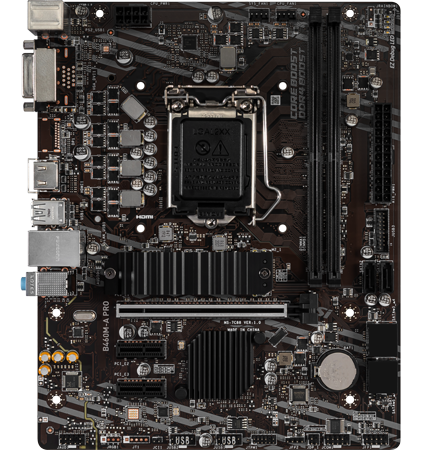

B460M-A PRO 10th Generation Intel M-ATX Motherboard from MSI

MSI B460M-A PRO

Conquer the Battlefield Introducing the all new B460M-A PRO Motherboard from MSI. PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Intel B460Chipset

LGA 1200CPU Socket

M-ATXForm Factor

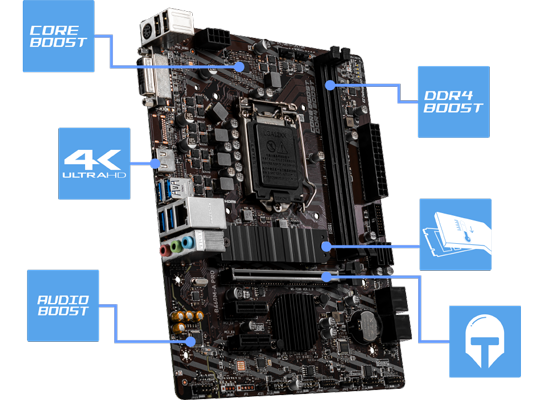

Special Features of the B460M-A PRO

Main Features
Core Boost

Core Boost TechnologyWith premium layout design, that is ready for unleashing the maximum performance.

Digital PWM

4K SupportOnboard HDMI supports up to 4K UHD resolution.

Audio Boost

Audio BoostReward your ears with studio grade sound quality for the most immersive gaming experience.

Steel PCIE Slots

PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

M.2 Shield Frozr

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

DDR4 Boost

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best performance and stability.

Experience Core Boost

b460 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI B460 motherboards are optimized to maximise the performance on the 10th Gen Intel ® Core™ processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

-->

Protecting your PCIe Slots

B460  PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition B469M-A PRO
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel® Smart Response Technology
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 236 x 192 mm
Note
Additional Information
Scan Code LN107898
Model Number B460M-A PRO
GTIN 4719072729356
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
MSI B460M-A PRO, Intel B460, S 1200, DDR4, SATA3, M.2, GbE, USB 3.2 Gen1, Micro-ATX is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from bad board for powerful cpu i do not recommend this board at all. the problems are too many to list here. 1 fan header 1 cpu header. no option for hydro cooler, only way to control fan speed is through bios, the software is useless for this board. even on full speed fan, you get cpu fan error. same fan installed on another board works fine but not on this one. it states it has rgb header, i dont see it anywhere. brought a case that has rgb fans and has the option to control rgb by board, but this is useless. stay away from this board if you use the pc for hard work.
