Gigabyte AMD Radeon RX 6800 GAMING OC 16GB Graphics Card
Gigabyte Radeon RX 6800 GAMING OC 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 3840 Streams, 1925MHz, 2155MHz Boost
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Gigabyte AMD Radeon RX 6800 Gaming OC 8G Graphics Card
The Latest powerful Graphics Card from AMDThe Radeon RX 6800 Gaming OC is built with the new RDNA2 Architecture and now include 16GB of GDDR6 Memory driving the card with a high bandwidth. Game at 4K performance on today's most demanding titles with ease and with the the new architecture you can run your card faster with lower power consumption than ever before. The RX 6800 series features new PCI Express 4.0 support with a throughput of 16GT/s and enables two times the bandwidth compared to PCI Express 3.0. By choosing a monitor with FreeSync and combining it with an AMD card of this caliber the results will be a stutter-free, tear-free and artifact-free smooth gaming experience.
WINDFORCE 3X Cooling System
Alternate Spinning reduces turbulence of adjacent fans and increases air pressure The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 6 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and ccreen cooling functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. The middle fan spins in reverse to optimize airflow for heat dissipation, enabling more efficient performance at lower temperatures.
Excellent Heat Transfer
UNIQUE BLADE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPEWith direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.

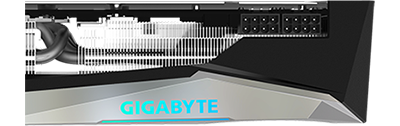

RGB Fusion 2.0 gives Amazing Effects
Interface for RGB SynchronizationWith 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
A Breakthrough Gaming Architecture
RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
Contrast Adaptive SharpeningOFF
Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
Shading Rate OverlayOFF
Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
Screen Space ReflectionsOFF
Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
|AMD Radeon RX Card Specifications|
|Model||RX 6900 XT||RX 6800 XT||RX 6800||RX 6700 XT||RX 5700 XT||RX 5600 XT||RX 5500 XT||RX 580||RX 570|
|Architecture||RDNA2||RDNA2||RDNA2||RDNA2||RDNA||RDNA||RDNA||GCN 4th||GCN 4th|
|GPU||Big Navi||Big Navi||Big Navi||Big Navi||Navi 10||Navi 10||Navi 14||Polaris XTX||Polaris 20 Pro|
|Reference Base Clock||2,015 MHz||2,015 MHz||1,815 MHz||2,321 MHz||1,605 MHz||1,420 MHz||1,607 MHz||1,257 MHz||1,168 MHz|
|Reference Boost Clock||2,250MHz||2,250 MHz||2,105 MHz||2,581 MHz||1,905 MHz||1,620 MHz||1,845 MHz||1,340 MHz||1,244 MHz|
|Memory||16GB GDDR6||16GB GDDR6||16GB GDDR6||12GB GDDR6||8GB GDDR6||6GB GDDR6||4GB/8GB GDDR6||4GB/8GB GDDR5||4GB/8GB GDDR5|
|Chipset||Radeon RX 6800|
|Manufacturing Process||7 nm|
|Cores & Clocks|
|Core Clock||1925 MHz|
|Boost Clock||2155 MHz|
|Video Memory (VRAM)|
|Memory Clock||16000 MHz|
|Memory Speed (Effective with DDR)|
|Memory Bus||256 Bit|
|Memory Bandwidth||16000 GB/s|
|Memory Data Rate|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE 3X|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16)|
|AMD CrossFire Support|
|AMD Freesync Support||No|
|AMD FreeSync Version|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays|
|Maximum Digital Resolution|
|Maximum Analog (VGA) Resolution|
|Peak Half Precision Compute Performance (FP16)|
|Peak Single Precision Compute Performance (FP32)|
|Peak Double Precision Compute Performance (FP64)|
|Power & Thermals|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||650 W|
|Maximum GPU Temperature|
|Low Profile Support|
|Dimensions||L=286 W=112 H=58 mm|
|Model Number||GV-R68GAMING OC-16GD|
