NanLite MixPanel 150 RGBWW LED Panel
NanLite MixPanel 150, RGBWW, LED Panel, 164W, 2700-7500K, CRI 95, TLCI 95, 13880 Lux, Location/Studio
- By DPD On 27th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
Nanlite - 'MixPanel 150 RGBWW LED Light Panel'
Take your projects to a brilliant placeThe Nanlite MixPanel 150 RGBWW LED Panel is a 48.2 x 41.4 x 82cm solution that uniquely combines three LED light sources into one housing. Able to switch between a traditional multi-LED panel for hard light, a diffused SMD LED Panel for soft light and a customisable RGB panel for colourful, creative effects with the push of a button. The MixPanel Series from Nanlite has an CCT range of 2700 to 7500K to seamlessly integrate into any ambient lighting or studio scenario, with a CRI/TLCI rating of 95 the MixPanel has the advanced colour accuracy needed for professional productions. Now you can do it all with one unit.
MixPanel 150 Key Features
CRI 95
TLCI 95
0-100% Dimming
43 Gel Presets
Tunable RGBWW LED Panel
Three Light sources in one compact panelNanlite MixPanels are capable of switching between a "traditional" multi-LED panel for hard light, a diffuse SMD LED panel for soft light and a Tunable RGB panel for colourful, creative effects at the push of a button.
Ultra-Bright 13880 Lux
Ultra-Bright OutputWhen using the hard light fixture in normal mode, the MixPanel 60 emits 4980 [email protected] 5600K while the 150 emits 11320 [email protected] 5600K. When shifted into boost mode, the output climbs even higher to 6600 Lux at 1m on the 60 and 14950 Lux at 1m on the150. Plus with dimming from 100% down to 1%, you can quickly adapt the MixPanel 60 to any scene without adding ND filters or diffusion
Easy to Use
intuitive User interfaceIf there is one thing an RGBWW LED panel can not be, it's cumbersome to use on set. That is why the MixPanel's operating system has been developed from the ground up to be efficient and intuitive to use. What's more, you can save your settings as presets to make your lighting consistent and repeatable.

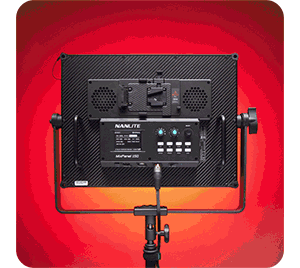

Built-in Gel Emulation and Special Effects
GEL EMULATION AND PRACTICAL EFFECTSThe MixPanel's gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor. Also, with nine pre-programmed and adjustable special effects, the MixPanel makes it possible to imitate lighting scenarios that can otherwise be tricky to recreate, such as hue loop, CCT loop, flash, pulse, storm, siren, TV, paparazzi, and candle/fire.

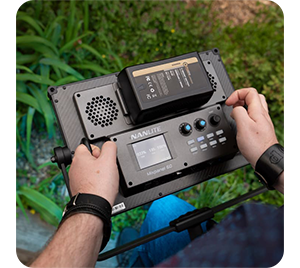

Multiple Power Options
POWER ANYWHEREOptimized for use in the studio or on location, MixPanels can run off either the included AC adapter or 14.8V (MixPanel 60) or 26w (MixPanel 150) V-Mount batteries (Not Included), so you can operate in any location regardless of power availability.
MixPanel 150 Specifications
| Features | Specification | Rated Power | 164W |
|---|---|
| Input Voltage/Current | DC 15V/7.5A Max AC 100-240V 50/60Hz |
| CRI | Average 95 |
| TLCI | Average 95 |
| CCT | 2700K-12000K (G/M) |
| Dimming | 0-100% |
| Control | On-board controller, 2.6G, DMX |
| Special Lighting Effects | HUE Loop, CCT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco |
| Dimensions | 482 x 435 x 82 mm |
| Weight | 4.1 kg |
Illumination (lux/fc)
| Colour | Distance | 2700K | 1m: 10460 lux / 966 fc 2m: 2869 lux / 268 fc 3m: 1327 lux / 124 fc 4m: 768 lux / 72 fc 5m: 507 lux / 47 fc |
|---|---|
| 3200K | 1m: 12330 lux / 1150 fc 2m: 3401 lux / 317 fc 3m: 1557 lux / 145 fc 4m: 904 lux / 84 fc 5m: 600 lux / 56 fc |
| 5600K | 1m: 13880 lux / 1294 fc 2m: 3731 lux / 3348 fc 3m: 1746 lux / 163 fc 4m: 1007 lux / 94 fc 5m: 663 lux / 62 fc |
| 7500K | 1m: 13280 lux / 1238 fc 2m: 3604 lux / 336 fc 3m: 1641 lux / 153 fc 4m: 957 lux / 89 fc 5m: 633 lux / 59 fc |
| R | 1m: 2841 lux / 265 fc 2m: 758 lux / 71 fc 3m: 347 lux / 32 fc 4m: 203 lux / 19 fc 5m: 135 lux / 13 fc |
| G | 1m: 6111 lux / 570 fc 2m: 1640 lux / 153 fc 3m: 758 lux / 71 fc 4m: 444 lux / 41 fc 5m: 296 lux / 28 fc |
| B | 1m: 1240 lux / 116 fc 2m: 330 lux / 31 fc 3m: 152 lux / 14 fc 4m: 89 lux / 8 fc 5m: 60 lux / 6 fc |
