Scan code: LN104937 Manufacturer code: JD-CSP027

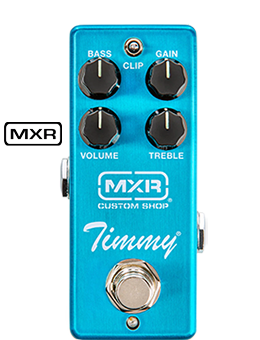

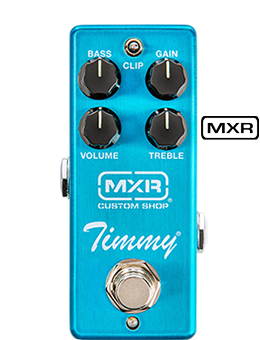

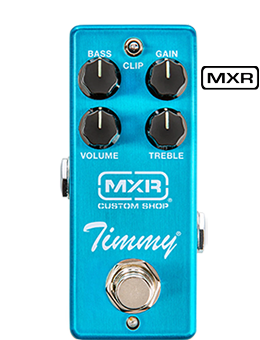

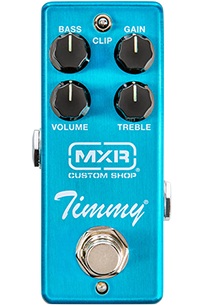

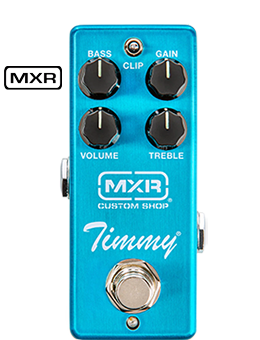

MXR CSP027 Timmy Overdrive Pedal

MXR CSP027 Timmy Overdrive Pedal, Designed with Paul Cochrane, MXR Mini Housing, 3 Clipping Styles

Thumbnail 1 : MXR CSP027 Timmy Overdrive Pedal Thumbnail 2 : MXR CSP027 Timmy Overdrive Pedal Thumbnail 3 : MXR CSP027 Timmy Overdrive Pedal Thumbnail 4 : MXR CSP027 Timmy Overdrive Pedal
Scan code: LN104937 Manufacturer code: JD-CSP027
£139.99
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and receive it between 14th Apr and 20th Apr
From £12.57 / month (APR 14.9%)
Monthly Payment: £24.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £145.76
Monthly Payment: £12.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £150.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 14th Apr To 20th Apr to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Add Paul Cochrane’s Celebrated Boutique 'Timmy' Overdrive
to your Pedalboard!

MXR Timmy Overdrive Pedal

legendary boutique overdrive Guitarists spanning all genres, will unanimously agree that there’s no finer feeling than finding that holy-grail of guitar tone, however, where do you turn when you need to add a little more overdrive, without tainting your hard-earned tone? Step forth veteran pedal builder Paul Cochrane.

Paul was one step ahead when it came to this predicament and decided to build an overdrive that would add girth to your tone, whilst preserving the characteristics of the original signal – and just like that, the original ‘Timmy’ overdrive was created. The original Timmy was fairly-priced and soon found itself to be one of the most desired boutique pedals around. Nowadays, in 2020 the only place to get your hands on one of the originals is searching long and hard on various online marketplaces, often priced way above it’s original RRP.

Boost your signal and retain your Tone

MXR Timmy Overdrive Pedal

3 unique clipping profilesFortunately, Mr Cochrane and the engineers at MXR’s custom shop have got together to bring the ‘Timmy’ to a new, wider audience.

Now you can add this infamous, highly sought after sound to your rig, designed to highlight the expressiveness of your guitar, whilst also giving you fantastic hands-on control over a multitude of tones and colours thanks to it’s 4 control knobs (Bass, Treble, Volume, and Gain).

Finally, the popular ‘Clip’ switch is present in MXR's version of the 'Timmy', featuring 3 unique clipping profiles to accommodate a whole range of playing styles. This feature makes the 'Timmy' one seriously versatile overdrive, and one that any guitarist would welcome on to their pedalboard.

Understanding & Controlling the MXR 'Timmy'

powerful tone shaping parametersAn important factor behind the Timmy’s popularity is arguably it’s tone controls. Upon first glance, you’ll notice ‘Bass’ and ‘Treble’ controls, nothing unusual you might think…however, these work counter-intuitively to how you may first presume, instead of boosting frequencies, these parameters only cut frequencies.

Furthermore, the treble control is placed before the drive circuitry and the bass is found after the drive. This allows the Timmy to mould your tone powerfully and with the utmost control, all without impairing your original signal. This is the true secret behind the magic of this pedal.

VolumeThis controls the overall output volume of the pedal.

BassAdjusting this parameter will cut low end frequencies from the pre-overdrive signal.

ClipUse the 'Clip' toggle switch to determine your preferred clipping style.

Left: - This position provides asymmetrical clipping with moderate saturation and compression for a wide, dynamic range of sounds.
Middle: - This position provides symmetrical clipping with light saturation, high headroom, and high definition for a big sound.
Right: - This position provides symmetrical clipping with heavy saturation and low headroom.

GainAdjusting this parameter determines the intensity of the overdrive.

TrebleAdjusting this parameter will cut high end frequencies from post-overdrive signal

The Tech Spec

Features Specification
Input Impedance 400 kΩ
Output Impedance 1 kΩ
Noise Floor* -115 dBV
Gain 3 dBV to 43 dBV
Bypass True Hardwire
Current Draw 2.2 mA
Power Supply 9 volts DC
