MSI Z270 Xpower Titanium Kaby Lake Gaming ATX Motherboard

MSI Z270 XPOWER GAMING TITANIUM, Intel Z270, S 1151, DDR4, SATA3, M.2, 2-Way SLi/4-Way CrossFire, Dual GbE, USB 3.1, ATX

FREE 16GB Intel Optane M.2 Memory with MSI X299/Z270
MSI
Scan code: LN78172 Manufacturer code: Z270 XPOWER GAMING TITANIUM Request call
£307.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £7.68 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

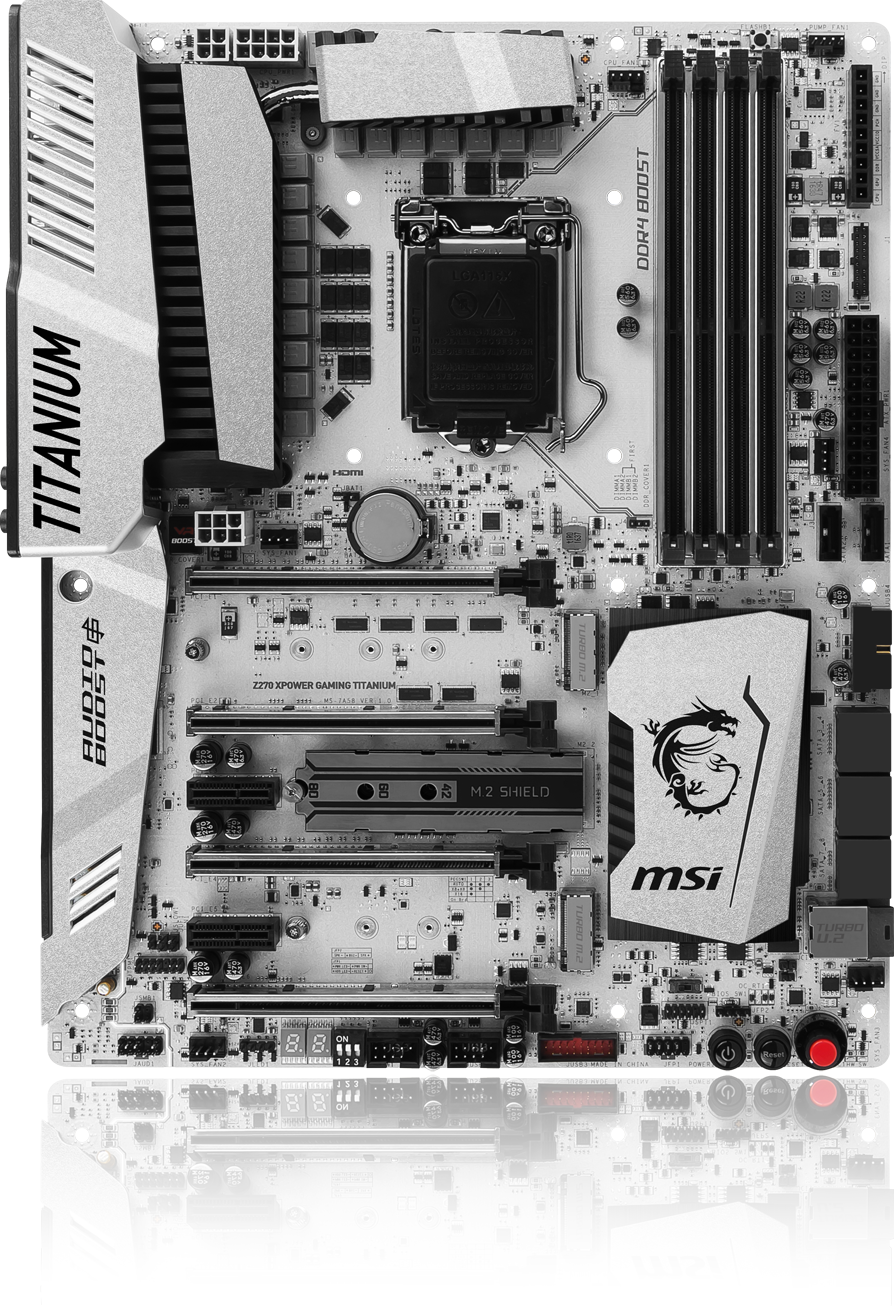

Kaby Lake XPOWER GAMING TITANIUM Z270 Motherboard

Gaming M7 Motheboard
Professional level gaming PCB from msi

Experience MSI’s BulletProof PCB, the XPOWER GAMING TITANIUM is a phenomenal all round motherboard built for the PC gamer in you. Enhancing your game quality in a multitude of areas such as Dual Intel GAMING LAN, VR Boost, GAMING Device Port and even the audio output through golden audio jacks with S/PDIF. Top end speeds are utilised with USB 3.1 Gen 2 and three on-board Turbo M.2 slots with Steel Armor - one of which features its own protection and cooling through MSI Shield technology. Plus, it features on-the-fly OC.

Intel Z270
Chipset

1151
CPU Socket

ATX
Form Factor

RGB LEDs from Mystic Light

Mystic Light
Control & Customize RGB LED with Mobiles

Customize and set up your own color scheme with RGB Mystic Light. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

Compatible Mystic Light Brands

Fan Preference Control

Fan Headers
manipulate Fan Headers with ease

MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Game-Boost Tech

Game Boosting Tech
Pushing your PC play further

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

Advancing Storage Potential

X-Boost and Optane
advanced results through Combine technology

XBoost - When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.
Intel Optane Ready - This new technological marvel brings game-changing performance to memory and storage devices. Allow Optane caching to boost your storage devices for an even faster gaming system!

Shield M.2 Slot Tech

M-2 Protection
MSI Shield tech will protect & cool

Connect your M.2 device safer & easier while keeping it cooler for the best performance using the unique M.2 Shield. MSI M.2 Shield features cooling pads to lower the temperature of your M.2 device and avoid any possible throttling, causing it to slow down. Be sure your system stays blazing fast with M.2 Shield!

Armoured U.2 Port

U-2 Protection
Next Generation SSD Ready

Next generation SSDs demand a next generation connector. U.2 delivers just that with performance up to 32 Gb/s per device. The U.2 connector on this MSI GAMING motherboard also features Steel Armor for enhanced protection.

VR Ready MSI PCB

VR Ready
Built to help maximize VR performance

VR Ready - Want the best of the best VR experience without any compromise? Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid, smooth and realistic experience in which content truly comes alive.
VR Boost - Traditional USB ports can suffer signal drops, significantly impacting performance of connected devices. VR Boost, only on MSI, is a smart chip that ensures a clean and strong signal to a VR optimized USB port, giving you an enjoyable VR experience.

Enhancing Game Audio

  • Isolated Audio with LED Line LED Line
  • Chemi-Con Audio capacitors Audio Capacitors
  • Nahimic 2 Sound Tracker Nahimic Sound Tracker
In-Game Audio Amplified with Audio Boost 4

Like a dedicated sound card Audio Boost offers two independent audio processors with dedicated amplifiers to allow gamers to play music on a speaker system, while playing in-game amplified sound on headphones at the same time!

Gaming LAN Speeds

Killer E2500 Tech
Be quicker than the rest with the lowest latency

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
Click image for more information

Boosting DDR4 Performance

DDR4 Memory Performance
The Purest of signals & the best Compatibility

Memory Signal Purity - MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Best Compatibility - Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

Overclocking the XPOWER

DDR4 Memory Performance
Z270 Overclocking made easy

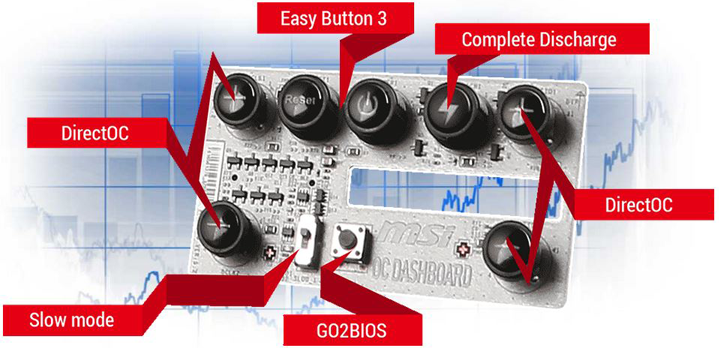

OC Dashboard features all the tools needed to break records; DirectOC +/-, Slow Mode, Fast Boot and more. Experience easier on-the-fly overclocking under the most extreme conditions without worrying about frozen onboard overclocking buttons.

Lightning USB Gen 2

DDR4 Memory Performance DDR4 Memory Performance
USB 3.1 + XBoost backing power

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
MSI Lightning USB see in RED other USB in GREY.

Armoured Component Protection

DDR4 Memory Performance
Longer lasting & protected components

Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.
MSI Steel Armor - Reinforced, heavy soldered connections
Others - No strengthening

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2600(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 4-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 0~5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • NVMe Boot (via U.2 Connector)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 2-pin OC retry connector
  • 1 x 2-pin Slow mode connector
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 6-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x RGB LED connector
  • 8 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x Water Pump Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 3 x USB 2.0
  • 4 x USB 3.1 Gen1 Type A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
MSI Z270 XPOWER GAMING TITANIUM, Intel Z270, S 1151, DDR4, SATA3, M.2, 2-Way SLi/4-Way CrossFire, Dual GbE, USB 3.1, ATX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Greath mobo...terrible design choice Overall very happy with the overall functionality and over clocking features, definitely worth splashing out for that. HOWEVER! Not happy at all with the bespoke screws and mini-tool, incredibly frustrating to affix on to your chassis, only managed screw in 4 of them and even then that was a chore. I was tempted to give it three stars just for that but I have to be fair as the product actually works.
Date published: 2017-05-13
