MSI Z270 Gaming Pro Carbon Kaby Lake ATX Motherboard

MSI Z270 GAMING PRO CARBON, Intel Z270, S 1151, DDR4, SATA3, M.2, 2-Way SLi/3-Way CrossFire, GbE, USB 3.1 Gen2 A+C, ATX

FREE MSI RGB LED Light Strip (400mm) with Z270/X370 GAMING PRO CARBON
MSI
Scan code: LN76985 Manufacturer code: Z270-GAM-PRO-CARBON Request call
£154.68Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

Get up to £94 cashback with MSI gamingWhen you purchase a select msi gaming graphics card and gaming motherboard. Purchasing period: 14th APR 2017 - 14th May 2017. Claiming period 30-60 days after purchase date.

To claim & read full details

GAMING PRO Z270 Motherboard with CARBON Design

Gaming M7 Motheboard
Professional level gaming PCB from msi

The PRO GAMING CARBON has been packed with an array of great tools to help buff different areas of your PC’s capabilities. Among boosting audio and graphic potential through multiple next-gen technologies the Z270 GAMING PRO features two M.2 slots, one of which features its own protective armour that helps keep its temperature down through cooling pads. Plus, this VR ready motherboard has various technologies specifically designed to push your gaming performance to the next level.

Intel Z270
Chipset

1151
CPU Socket

ATX
Form Factor

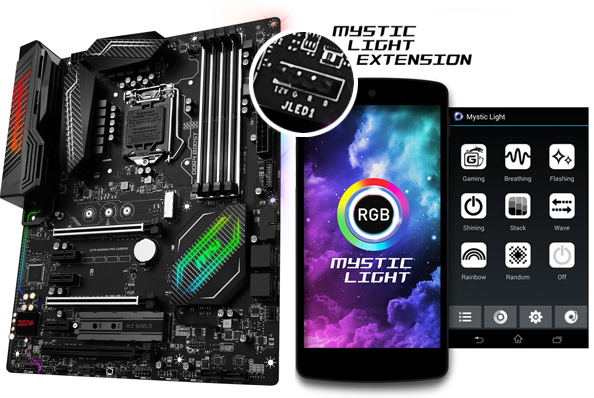

Mystic LED Lighting

Mystic Light
Control & Customize RGB LED with Mobiles

Customize and set up your own color scheme with RGB Mystic Light. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

Compatible Mystic Light Brands

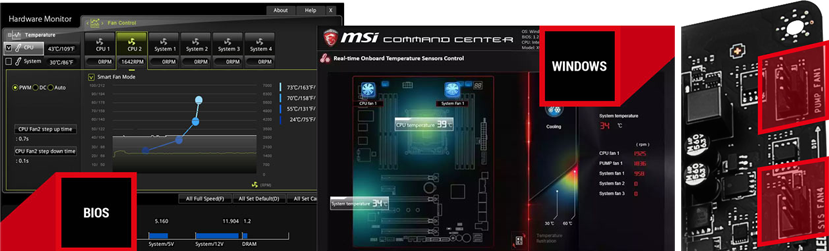

Fan Power Control

Fan Headers
easily manipulate Fan Headers to your preference

MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Game Boost Technology

Game Boosting Tech
enhance your gaming experience

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

Increased Storage Speeds

X-Boost and Optane
Combine technology for advanced results

XBoost - When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.
Intel Optane Ready - This new technological marvel brings game-changing performance to memory and storage devices. Allow Optane caching to boost your storage devices for an even faster gaming system!

M.2 Slot technology

M-2 Protection
Shield tech will protect & cool

Connect your M.2 device safer & easier while keeping it cooler for the best performance using the unique M.2 Shield. MSI M.2 Shield features cooling pads to lower the temperature of your M.2 device and avoid any possible throttling, causing it to slow down. Be sure your system stays blazing fast with M.2 Shield!

VR Ready MSI PCB

VR Ready
Built to help maximize VR performance

VR Ready - Want the best of the best VR experience without any compromise? Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid, smooth and realistic experience in which content truly comes alive.
VR Boost - Traditional USB ports can suffer signal drops, significantly impacting performance of connected devices. VR Boost, only on MSI, is a smart chip that ensures a clean and strong signal to a VR optimized USB port, giving you an enjoyable VR experience.

Game Worthy Audio

  • Isolated Audio with LED Line LED Line
  • Chemi-Con Audio capacitors Audio Capacitors
  • Nahimic 2 Sound Tracker Nahimic Sound Tracker
In-Game Audio Amplified with Audio Boost 4

Like a dedicated sound card Audio Boost offers two independent audio processors with dedicated amplifiers to allow gamers to play music on a speaker system, while playing in-game amplified sound on headphones at the same time!

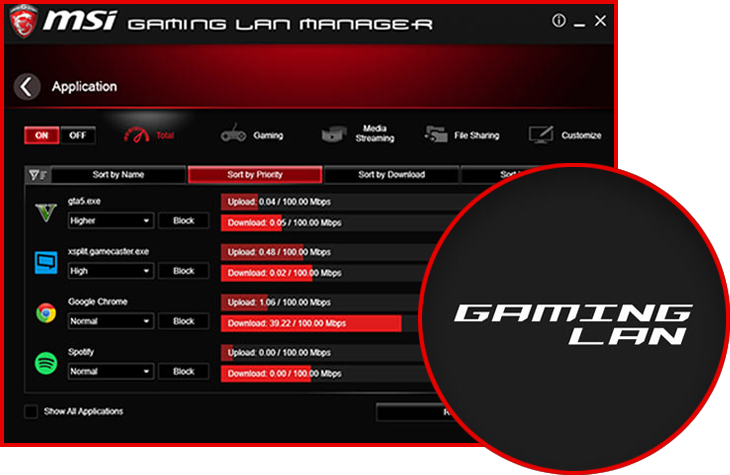

MSI Gaming LAN

Killer E2500 Tech
Be quicker than the rest with the lowest latency

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
Click image for more information

Boosting DDR4 Performance

DDR4 Memory Performance
The Purest of signals & the best Compatibility

Memory Signal Purity - MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Best Compatibility - Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

Lightning Speed USB

DDR4 Memory Performance DDR4 Memory Performance
USB 3.1 + XBoost backing power

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
MSI Lightning USB see in RED other USB in GREY.

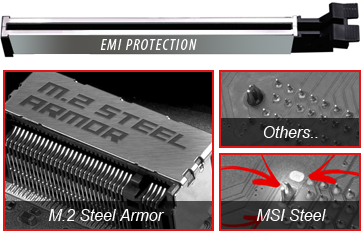

Armoured Components

DDR4 Memory Performance
Longer lasting & protected components

Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.
MSI Steel Armor - Reinforced, heavy soldered connections
Others - No strengthening

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2600(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3800(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 0~5 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x Water Pump Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
MSI Z270 GAMING PRO CARBON, Intel Z270, S 1151, DDR4, SATA3, M.2, 2-Way SLi/3-Way CrossFire, GbE, USB 3.1 Gen2 A+C, ATX is rated 4.8 out of 5 by 4.
Rated 5 out of 5 by from looks and works brilliantly this motherboard is beautiful in my setup its got rgb lighting that you control through a downloadable program ez pz. the bios for this motherboard are easy to use. the only draw back about this motherboard is you cant set the rgb to cycle through all the colours like you can on other rgb motherboards.
Date published: 2017-03-05
Rated 4 out of 5 by from Feature rich, stable and good looking The UEFI BIOS interface is nice and easy to use. The fan control is superb,you can even set all fans to be off unless a temperature has been reached. Easy to assemble and did not have any issues where the ports are located. The LED lightning is brilliant however you have to install an MSI app to control it. I have not tried to overclock my CPU yet, it is currently rock solid with an Intel Core i7 7700k and 16GB (2x8GB) of DDR4 @ 3000 MHz The motherboard has enough SATA ports for pretty much everyone's needs, My games (Battlefield 1, Resident Evil 7, Fallout 4) all run well too
Date published: 2017-02-24
Rated 5 out of 5 by from Great looking mobo I upgraded from a 2 year old, pretty much featureless mobo so this felt like a MASSIVE improvement, usb 3.0 and gen 2 as well, type C connections and various other stuff like sound improvements and just cool lighting effects, reinforced pcie and ram slots which definitely gave me confidence in its durability and quality. Pairing with an i7 7770k gtx 1080 and 16bg of DDR4 ram this felt like a monsters, absolutely crazy and this felt like the right choice to go for to finally have a great system that will hold me for at least another couple years. Overall its easy to use and packed with features, not exactly enthusiast level but in my opinion someone who just want to plug and play this is great.
Date published: 2017-01-29
Rated 5 out of 5 by from Great motherboard overall! This motherboard is great with its amazing feature compared to other rivals on this price range. It looks really nice on my new build with its RGB. This motherboard impressed me so much and made me so happy !
Date published: 2017-01-28
