MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Motherboard

MSI X670E GAMING PLUS WIFI, AMD X670, S AM5, DDR5, SATA3, PCIe 5.0, 4x M.2,2.5GbE/WIFI 6E, USB 3.2 Gen2x2, AMD EXPO, ATX

Thumbnail 1 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Motherboard Thumbnail 2 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Motherboard Thumbnail 3 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Motherboard Thumbnail 4 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Motherboard
Scan code: LN142898 Manufacturer code: X670E GAMING PLUS WIFI
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Was: £249.98
£229.99
Get it Tomorrow, 22 JunIn stock
FREE DELIVERY ON THIS ITEM
From £11.23 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £20.84
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £250.02
Monthly Payment: £11.23
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £269.52
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
MSI steam promotion

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard

MSI X670E Motherboard

Ready For the 8000 SeriesThe X670E GAMING PLUS WIFI employs stunning aesthetics, design and features to embellish its looks and power. Developed to unlock the full gaming potential of the AMD X670 chipset and brand-new 8000 series processors by combining elite hardware and premium durability, the GAMING PLUS WIFI boasts an enhanced 14+2+1 duet rail power system, a maximum of 4x M.2 connectors and M.2 Shield Frozr, 2.5G LAN, WIFI 6e connectivity and PCIe 5.0 support to help you get the maximum performance straight from your CPU.

AMD X670Chipset

AM5CPU Socket

AMD Ryzen™ 8000 SeriesCompatible CPU

ATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Extended Heatsink

Extended
Heatsink

Pump Fan Support

Pump
Fan Support

M.2 Shield Frozr

M.2
Shield Frozr

Heatsink with 7W/mK Thermal Pad

Heatsink with
7W/mK Thermal Pad

High-Speed Transmission

Connectivity options
10G

2.5G
LAN

Wifi 6e

WIFI
6E

Gen 5 slots

Lighting
Gen 5

Memory Boost

Memory
Boost

A Stable Cornerstone for Your System

protection
Steel PCIe slots

Steel PCIe
armor

2oz Thickened Copper

2oz
Thickened Copper

6 LAYER PCB

6 Layer
PCB

Digital PWM

14 Phase
Duet Power

Core Boost Technology

Core Boost
Technology

Massive Cooling Potential

1. Extended HeatsinksExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2. M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.

4. 7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Aggressive Power Design

Robust power design

14+2+1 DUET RAIL POWER SYSTEMUnleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI X670E GAMING PLUS WIFI motherboard is ready to sustain heavy gaming loadings.

Meet the Latest Generation

PCIE 5 slots

LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIe 5.0 SlotThe advanced SMT (Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI X670E GAMING PLUS WIFI motherboards supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

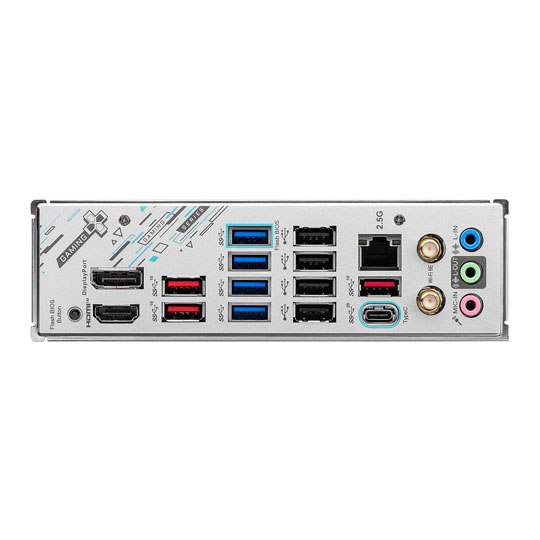

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: DisplayPort
2: USB 3.2 Gen 2 10Gbps (Type-A)
3: USB 3.2 Gen 1 5Gbps (Type-A)
4: USB 2.0 (Type-A)
5: 2.5G LAN
6: Flash BIOS Button
7: HDMI™
8: USB 3.2 Gen 2x2 20Gbps (Type-C)
9: Wi-Fi / Bluetooth
10: Audio Connectors

Specifications
Core Specifications
Edition MAG X670E GAMING PLUS WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD X670E
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600+(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 128GB
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x LED connector
  • 6 x System Fan header
  • 1 x TPM 2.0 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Rear Speaker Out
  • 4 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN142898
Model Number X670E GAMING PLUS WIFI
GTIN 4711377170345
