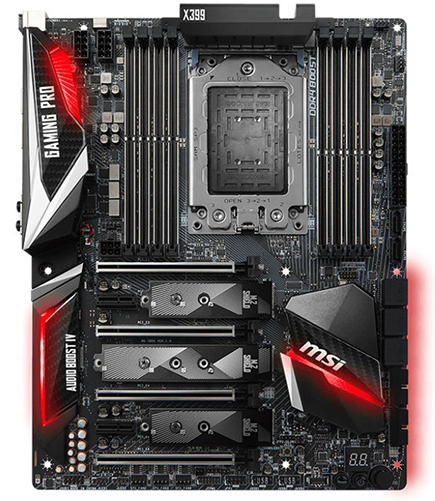

MSI AMD Threadripper X399 GAMING PRO CARBON AC TR4 ATX Motherboard

MSI X399 GAMING PRO CARBON AC, AMD X399, S TR4, DDR4, SATA3, Triple M.2, 4-Way SLi/CrossFire, GbE/WiFi, USB 3.1 A+C, ATX

MSI
Scan code: LN83525 Manufacturer code: X399 GAMING PRO CARBON AC Request call
£331.99
Pay on Scan Finance with a 10% deposit from just £8.29 / month (APR 15.9%)
review High End
Delivery options £11.50 By DPD On 15th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

ATX GAMING PRO Motherboard. MSI X399 with Threadripper Power

MSI X399 GAMING PRO CARBON Motherboard
GAMING PRO CARBON AC Motherboard from MSI

Revel in the power this pro gaming motherboard can produce. The X399 from MSI boasts a huge variety of features from customizing with Mystic Light and 3D mountable parts, to sound, visual, speed and connectivity. The cooling enhancements will allow you to keep going even on those extended gaming sessions, while the gaming features will help boost your performance and skill-level in-game. The X399 GAMING PRO CARBON AC is built to last with incredible component quality and is sure dominate anything you throw at it, including AAA and VR gaming!

ATX
Form Factor
TR4
CPU Socket
AMD X399
Chipset
DDR4
Memory Type

Keep a Cool PC While Gaming

FAN HEADERS
FULLY CONTROLLABLE FAN HEADERS

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

DC OR PWM MODE
DC OR PWM MODE WITH HYSTERESIS

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

CONTROL IN BIOS AND SOFTWARE
TOTAL CONTROL IN BIOS AND SOFTWARE

Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

WATER COOLING
OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One and custom water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

  • WATERPUMP HEADER
  • - Up to 2A support
  • - Speed control from BIOS and OS

Best PC Boot-Up Speeds and M2 Protection

M.2 SHIELD
M.2 SHIELD

Cooling your NMVe SSD delays throttling which results in higher overall performance. Additionally, M.2 Shield protects your M.2 device and makes it look cool.

2x TURBO M.2
2x TURBO M.2

Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection!

XBOOST STORAGE
XBOOST YOUR STORAGE PERFORMANCE

This great little tool is very simple to use and automatically detects your storage devices connected to the system. When enabled, X-Boost optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.

Stable, Secure and Fast Networking

WI-FI AC and BLUETOOTH
NEXT-GEN INTEL WI-FI AC and BLUETOOTH

Use your LAN port for online gaming while using WiFi for other online applications. This next-generation Intel Wi-Fi / Bluetooth solution uses smart MU-MIMO technology, delivering AC speeds up to 867Mbps without any cable limitation.

INTEL DUAL LAN
LOW LATENCY GAMING LAN POWERED BY INTEL

Experience smooth gaming with Intel LAN. Intel LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This means your CPU can be used more effectively, giving you more FPS when gaming.

MSI GAMING LAN MANAGER
MSI GAMING LAN MANAGER

MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

LAN PROTECT
LAN PROTECT TO SHIELD YOUR SYSTEM AGAINST POWER SURGES

Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, the LAN Protect connector is designed to give you a reliable networking experience.

Professional Sound Quality

Audio Boost 4
Amplify your game with Audio Boost 4

Audio Boost 4 is powered by an EMI-shielded High Definition audio processor with built-in DAC, making sure you enjoy the purest sound quality in both stereo and surround sound. Audio Boost operates like a dedicated soundcard by being physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal possible. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

Audio amplifier
Dedicated Headphone amplifier that auto-detects impedance

The built-in dedicated headphone amplifier rewards audiophiles with headphones up to 600Ω impedance by delivering studio-grade sound quality from your gaming PC. Audio Boost 4 automatically detects the optimal impedance for your headphones and adjusts the output for the best sound quality.

Audio capacitors
Chemi-Con Audio capacitors for a warmer sound

By dedicating golden audio capacitors to the front output, a high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured. The Chemi-Con audio capacitors are widely considered to be one of the great choices for the best sound output.

nahimic2
Nahimic: sound that pushes the limits of reality

Nahimic Sound Technology has been famed for its quality and precision in projects undertaken by the Military and the Aeronautics Industry. Their experience in reflecting surround sound at the most immersive level allows you as a gamer to experience the next level in sound and gameplay. Unique features, including a sound tracker which visually shows where the enemies are making noise in game, truly allow you to get the upper hand on the battlefield.

X399 GAMING PRO Memory Performance

OPTIMIZED MEMORY LAYOUT
ENHANCED STABILITY WITH OPTIMIZED MEMORY LAYOUT

Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files.

STABILITY AND COMPATIBILITY
EXTREME STABILITY and COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

A-XMP
EASY A-XMP

Enable A-XMP with ease using a single option in the BIOS to gain performance and create a perfectly stable system.

GAMING PRO Motherboard USB Maximized

DOUBLE BANDWIDTH
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.1 GEN2

Using multiple USB 3.1 devices has never been faster! Featuring the Lighting ASmedia 3142 USB 3.1 Gen2 controller, MSI motherboards offer never before seen USB speeds when connecting multiple USB devices at the same time. The Lightning USB connectors are covered with gold to ensure a bitter signal and performance.

TYPE-C
TYPE-C REVERSIBLE CONNECTOR FOR NEXT-GEN USB

Get all the performance benefits from USB 3.1 combined with the convenience of the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

FRONT SIDE USB
Front side USB faster than ever with USB 3.1 and Type-C

Ready for next generation cases and perfect to use with the latest smartphones, the onboard front side USB connector now offers ultra-high speed through USB 3.1 gen 1 Type-A and USB 3.1 Gen 2 Type-C (up to 10 Gb/s).

X-BOOST USB
X-BOOST YOUR USB PERFORMANCE

When enabled, X-Boost optimizes your devices for even better transfer speeds and can provide up to 30% increase in USB performance, saving a lot of time when transferring data. This handy tool is very easy to use and automatically detects and optimizes the USB devices connected to your system.

Apps To Greatly Improve Efficiency

X-BOOST STORAGE
X-BOOST YOUR STORAGE

This unique and exclusive software allows you to boost the performance of any storage or USB device connected to your system. Simply use X-BOOST’s Easy or Advanced mode to tune your system for up to 20% increased speeds, higher system responsiveness and faster loading of in-game levels.

COMMAND CENTER
TAKE COMMAND OF YOUR SYSTEM

MSI’s Command Center software is the perfect tool to get the most out of your motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.

LIVE UPDATE
Always Up-To-Date with MSI live

Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your game.

"...the best update package available on any motherboard." - Anandtech

MSI RAMDISK
SSD not fast enough? Try MSI RAMDISK

MSI motherboards include RAMDisk, allowing you to create a virtual drive from your system RAM memory. Instantly load your software, speed up your browser or your page file to significantly speed up your system!

  • Speed up system, over 25x faster than SATA SSD
  • Speed up games, apps and browser
  • Increase SSD lifespan

Built with MSI Everlasting Motherboard Quality

PCI-E STEEL ARMOR
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for a pure gaming experience and even higher overclocking.

MSI Steel Armor protects your DDR4 modules, from physical harm. It also ensures a clean data signal between the motherboard and connected components by shielding against electromagnetic interference (EMI). Steel Armor helps to deliver a smooth gaming experience.

QUALITY COMPONENTS
SUPER STABLE WITH THE HIGHEST QUALITY COMPONENTS

MSI uses Military Class 6 components, which is the latest evolution of the industries’ highest quality standard. These high quality components are shielded by the best protection to make sure your system runs smoothly under the most extreme gaming conditions.

  • ESD PROTECTION
  • CIRCUIT PROTECTION
  • HUMIDITY PROTECTION
  • TEMPERATURE PROTECTION
  • EMI PROTECTION
CERTIFIED FOR GAMING
CERTIFIED FOR GAMING

Each model is tweaked to deliver the best FPS for a stutter-free gaming experience. Tested in 24-hour on- and offline gaming sessions with the most popular gaming gear by the world’s best eSports players, so you can enjoy top performance and reliability in the world’s most popular games.

MSI's User-Friendly BIOS

EASY MODE BIOS
EASY MODE FOR QUICK TWEAKS

When you just want to get back to work, EZ-mode presents you with basic BIOS settings and functions for some quick adjustments. If you feel like spending more time fine-tuning options to boost your system’s performance, the Advanced mode is the way to go.

EASY SEARCH and FAVORITES
EASY SEARCH and FAVORITES

Can't find a specific BIOS setting? Don’t worry, a permanent search option in the top right corner can be used to find what you need. Want quick access to important settings? My Favorites gives easy access to selected Favorite settings, supporting up to 5 groups of Favorites.

HARDWARE MONITOR
HARDWARE MONITOR WITH FAN CONTROL

Hardware monitor lets you take control of your system and check your primary system vitals in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Your MSI PC Gaming Advantage

PC GAMING HOTKEYS
TOTAL FREEDOM, MAXIMUM EASE

Easily program your most-used commands and execute them with a single keystroke. You’re free to choose any key you want, so choose wisely.

Simply assign functions to any key whether to launch your favorite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! User-friendly, easy-to-use application. Launch your favorite game with a single button.

PORTS FOR GAMING
DEDICATED PORT FOR GAMING PERIPHERALS

The GAMING Device Port is optimized to deliver the best connectivity for high-end gaming peripherals to fully utilize their features and responsiveness. Customize your mouse DPI to enhance accuracy or program macro combinations using the easy-to-use Mouse Master software to perform multiple commands with just one click.

GAME BOOST TECH
1-SECOND OVERCLOCKING!

Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

MULTI GPU
WANT MORE PERFORMANCE? TRY MULTI GPU!

Gaming enthusiasts are always looking for more performance to get the ultimate experience. Using multiple graphics cards is a great way to find out just how good it gets. MSI GAMING motherboards fully support multi GPU technologies and have optimal PCI-E slot placement for the best thermal performance.

VR BANNER
GET READY TO BE OVERWHELMED BY THE REALMS OF VR

From the start of Virtual Reality, MSI has been deeply involved in making VR Ready hardware in each of its product lines. Whether it's a feature-rich motherboard, a framerate boosting graphics card or a blazing fast complete gaming system, a huge set of VR-supporting features awaits you.

Specifications
Core Specifications
Form Factor ATX
CPU Socket TR4
Chipset AMD X399
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933(OC)
  • DDR4 - 3066(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600+(OC)
Max. Memory Capacity 128GB (8x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 4-Way SLi
Crossfire Support 4-Way CrossFire
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 2 x PCIe 2.0 x1
  • 4 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x LED demo connector
  • 1 x OC button
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 8 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (867Mbps)
  • 1 x Intel® I211 (Gigabit LAN)
Rear I/O Connectors
  • 2 x Audio I/O
  • 1 x BIOS FLASHBACK+ Button
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 1 x SPDIF Out (Optical)
  • 1 x USB 2.0
  • 1 x USB 2.0 BIOS FLASHBACK+ port
  • 8 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
