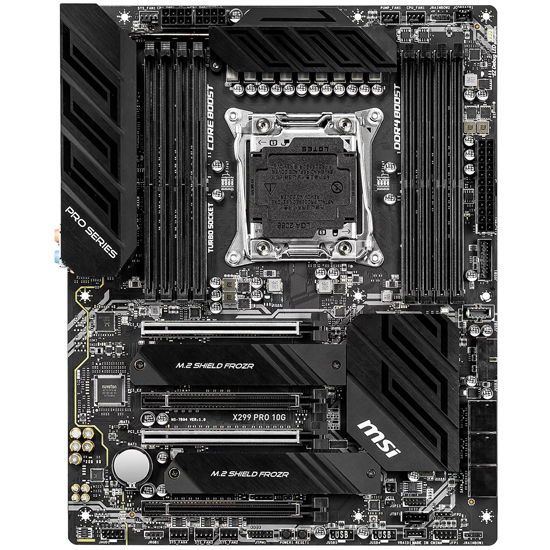

MSI X299 Pro 10G Intel-X Series ATX Motherboard

MSI X299 Pro 10G, S 2066, DDR4, SATA3, 2x M.2, SLi, CrossFire, 10GbE, USB 3.2 Type A+C, ATX

Thumbnail 1 : MSI X299 Pro 10G Intel-X Series ATX Motherboard Thumbnail 2 : MSI X299 Pro 10G Intel-X Series ATX Motherboard Thumbnail 3 : MSI X299 Pro 10G Intel-X Series ATX Motherboard Thumbnail 4 : MSI X299 Pro 10G Intel-X Series ATX Motherboard
Scan code: LN103739 Manufacturer code: X299PRO10G
£322.99
From £13.46 / month (APR 0%)
Monthly Payment: £53.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £322.99
Total inc. interest: £322.99
Monthly Payment: £26.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £322.99
Total inc. interest: £322.99
Monthly Payment: £17.95
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £322.99
Total inc. interest: £322.99
Monthly Payment: £13.46
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £322.99
Total inc. interest: £322.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.07 / month (APR 15.9%)
Delivery Options
  • By DPD On 17th Dec To 19th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Next Level Network Speed with the MSI X299 Pro 10G Intel Motherboard

MSI X299 PRO 10G MOTHERBOARD

Inspired from architectural design with the extended heatsink The stronger than steel MSI X299 Pro 10G Intel-X Series motherboard is designed for enthusiast gamers ready to be on the battlefield, while making life smoother for businesses and office use. With Twin Turbo M.2, you can experience maximized performance with X299 Series, and lightning fast USB 20G powered by ASMedia for the fastest USB speeds with stability. Includes an M.2 XPANDER-Z add-in card, which houses two extra M.2 slots to add more high-speed SSDs to your system. Get incredible data transfer speeds with the included 10G Super LAN Card, plus onboard Dual LAN maximises your online experience and provides a efficient network solution. MSI boasts high quality design with an extended heatsink and innovative technologies such as Core Boost to give you an unmatched performance than ever before.

Please Note: The Intel X299 chipset supports LGA 2066-socket Intel® Core™ X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.2 Gen 1 ports, 8 SATA 6 Gbps ports and up to 32 Gbps M.2 support for faster data retrieval.

Intel X299Chipset

LGA 2066CPU Socket

Intel X-SeriesCompatible CPUs

ATXForm Factor

Super Stable Gaming with High Quality Components

build quality

WITH INDUSTRY-LEADING COMPONENTS Using premium quality components whilst integrating the latest technological innovations, the MSI X299 Pro 10G Intel-X Series delivers the best possible professional experience. This motherboard has undergone rigorous quality testing to ensure you have a super-reliable, long-lasting component for your PC. A wealth of armors for your PCI-E and double ESD protection also guarantee your X299 works to the finest and safest standard.

Craft a System that's Truly your Own

DIY build

DIY FRIENDLY FOR GREAT BUILDS MSI motherboards have been finely crafted with tons of smart features for convenient setup and usage, such as a pin-header keep out zone, friendly SATA & USB locations and multiple cooling solutions. This means DIY users can pick and choose any gaming or creating components they want for their system and know that they'll work perfectly.

MSI Provides Quality Features for your System

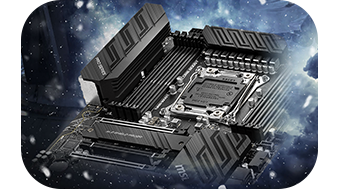

cooling

COOLING This MSI motherboard offers an impressive power design with a solid and larger heatsink for more cooling and heat dissipation. X299 is optimized for water cooling options with a dedicated PIN header providing up to 2A current and Auto-detect DC or PWM mode with Hysteresis.

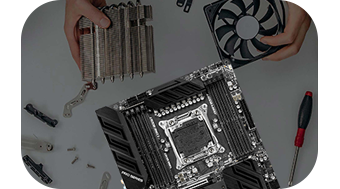

hardware

HARDWARECountless system tuning tools are at your disposal to push your system to new heights. Makes it so easy to install your own motherboard without any issue. Utilize a range of debug and bios functions for smooth and user-friendly operation.

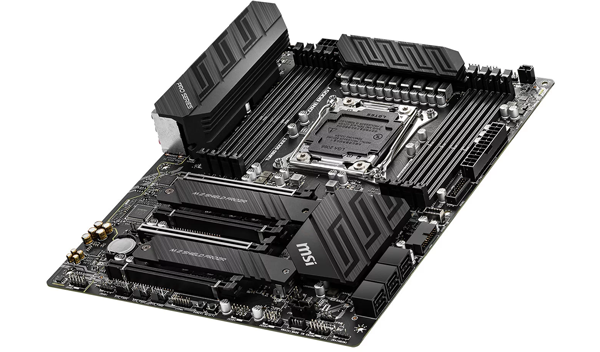

components

COMPATIBILITYEnjoy a whole range of components and devices with your motherboard. Such as DDR4 Boost, a pin-header keep out zone, and friendly SATA & USB locations for better compatibility. MSI X299 motherboards perfectly support latest Intel® Core X-series processors. Combining MSI Core Boost technology, you can release maximum performance no matter what CPU you use.

BIOS

BIOS and SOFTWAREUse the intuitive BIOS 5 to get the most out of your motherboard. Fine-tune your settings with ease with EZ and Advanced modes, smart fan control, optimized settings and more. Take control of advanced motherboards features and unleash endless possibilities with MSI Dragon Center.

Built on Everlasting Quality

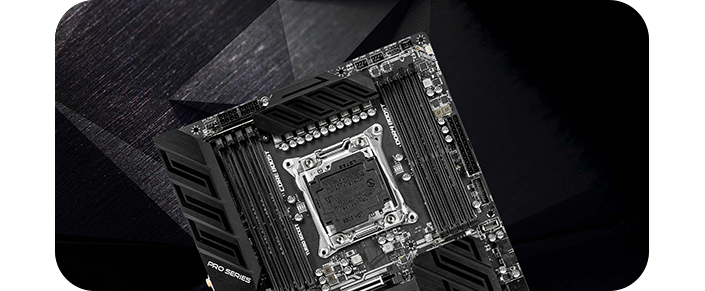

enhanced performance

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI use only the finest quality components and the latest innovative technologies to deliver the optimum professional experience. Furthermore, quality testing is key as MSI put their motherboards to the test in the most extreme conditions guaranteeing super durable, long-lasting and high performance motherboards. MSI Steel Armor is reinforced with heavy soldered connections to support the weight of heavy graphics cards. MSI uses the high quality components, which is shielded by the best protection to make sure your system runs smoothly under the most extreme conditions. Compatible with Multi-GPU supports 3-Way SLI / Crossfire™.

Back up your PC with Superior Hardware

CPU

CPUHigh quality materials and smart fan optimizations contribute to cooling all of your essential components. X299 Pro 10G features exclusive Double 8 pin CPU power connectors onboard and Core Boost technology utilizes the optimized power design, not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

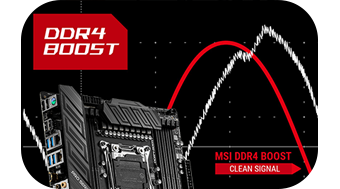

memory

MEMORYMSI featured an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers. Select the default XMP profile in CLICK BIOS 5 and automatically overclock compatible DDR memory. Supports DDR4 Memory, up to 4200+(OC) MHz.

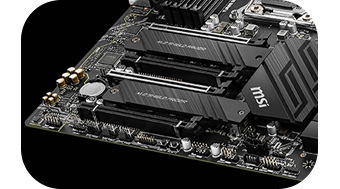

storage

STORAGEMSI's X299 supports all the latest storage standards, meaning you can connect any ultra-fast storage device. The X299 Pro 10G features Twin Turbo M.2 with M.2 Shield Frozr and supports up to 32 Gb/s NVMe devices, ready for Intel® Optane™ memory, thermal enhancement design for M.2 devices.

USB

USBFeaturing the Lighting ASmedia 3242 USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance.

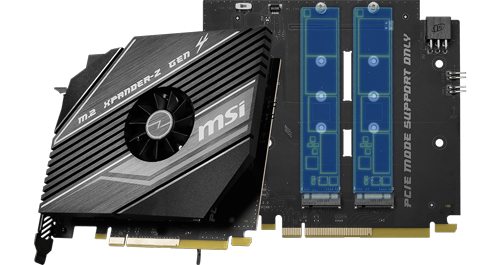

Extra High Speed SSDs with the Included M.2 XPANDER-Z

M.2 XPANDER-Z add in card

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD MSI X299 Pro 10G motherboard includes an M.2 XPANDER-Z add-in card, which offers two extra M.2 slots with latest Gen 4 solution to increase your storage capacity at maximum speed, while the exclusive graphic card level thermal solution delivers maximum performance. Enjoy the hgih performance of an SSD on your HDD by pairing it with the new Intel® Optane™ Memory device. Save time loading or transferring data with Storage Boost, when enabled this clever little tool automatically detects your storage devices when connected to your PC. X-Boost then optimizes your SSDs to keep your system rapid while also maximising storage performance. Setting up multiple M.2 and U.2 SSDs in RAID 0 is simple with the brilliant feature of M.2 Genie, which is easier with fewer steps to set up.

Secure Networking with the 10G Super LAN Card

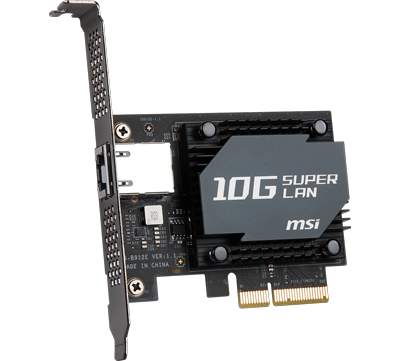

10G Super LAN card

ENHANCE YOUR SPEED FOR THE FASTEST DATA The MSI X299 Pro 10G Intel-X Series motherboard includes the 10G Super LAN Card which delivers next level network speed, secure networking with fastest data throughput to improve efficiency.

The Best Operation from the Comfort of your Home

studio

IN-STUDIO ADVANTAGE Utilize the most fascinating in-studio advantages that are designed to streamline any professional workflow. Immerse yourself in great audio and enjoy a stable network connection with MSI Audio & LAN, which will give you expert sound quality and an uninterrupted online experience from the comfort of your in-home office or room.

A Superb Performance for Professional Workflow

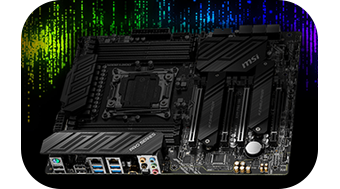

audio

AUDIOExperience the finest audio quality that's delivered through premium audio components for the most immersive sound experience. Enjoy breathtaking, game-changing sound with Audio Boost 4. MSI X299 Pro Series feature separated audio layers for clean left and right channels.

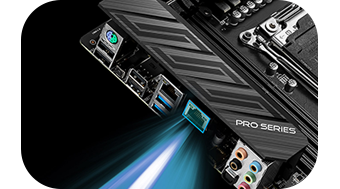

connectivity

CONNECTIVITY MSI X299 Pro 10G Series features high-bandwidth and low-latency dual Ethernet networks providing stable, secure and fast networking. With onboard 2.5Gbps connectivity this offers unparalleled data transfer. Equipped with a premium network solution from Intel® optimized for professional and multimedia use.

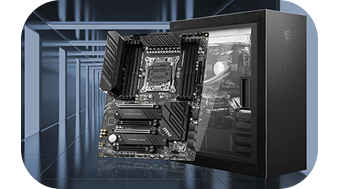

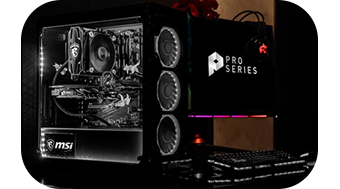

design

INDUSTRIAL DESIGNPro Series motherboards combine stable functionality and high quality assembly for clever business solutions offering an unmatched performance. Designed to satisfy any professional workflow, Pro Series motherboards make life easier for businesses and office use.

MSI Inspire Gamers to Personalise

inspired design

EXHILARATING AND UNIQUE STYLING Every MSI motherboard is built based on every persons individuality and style. It also adopts a modern style through the extended heatsink design that makes it sleek, simple, but also powerful. Combined with neutral colours like black, grey and silver, MSI boards make a perfect fit for different RGB LED lighting effects that can truly show off your style and personality.

Specifications
Core Specifications
Edition X299 Pro 10G
Form Factor ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4200(OC)
Max. Memory Capacity 256GB (8x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 3-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 4 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM (Trusted Platform Module)
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
  • 1 x Virtual RAID on CPU Connector
External Connectivity
Network Interface Type
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x AQUANTIA AQC-107 (10GbE LAN)
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Realtek RTL8125-CG (2.5G LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN103739
Model Number X299PRO10G
GTIN 4719072678654
