MSI AMD Radeon RX 5700 XT GAMING X 8GB GDDR6 RDNA PCIe 4.0 Graphics Card
MSI Radeon RX 5700 XT GAMING X 8GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2560 Streams, 1730MHz GPU, 1980MHz Boost
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
MSI AMD Radeon RX 5700 XT Gaming X Graphics Card
Brand new Architecture for the new AMD Radeon GPUsAMD have launched their latest Graphics Cards the Radeon RX 5700 Series, the new cards are based on the new RDNA Architecture and now include 8GB of GDDR6 Memory driving the card with a high bandwidth of up to 448GB/s. Game at 1440p performance on today's most demanding titles with ease and with the the new architecture you can run your card faster with lower power consumption than ever before. The RX 5700 series features new PCI Express 4.0 support with a throughput of 16GT/s and enables two times the bandwidth compared to PCI Express 3.0. By choosing a monitor with FreeSync and combining it with an AMD card of this caliber the results will be a stutter-free, tear-free and artifact-free smooth gaming experience.
2560Stream Processors
8GBGDDR6 Memory
1730 MHzBase Clock
1980 MHzBoost Clock
MSI's Twin FROZR 7 Thermal Design
A Stable and Silent Gaming Experience The 7th generation of the famous MSI TWIN FROZR Thermal Design brings the most advanced technology for ultimate cooling performance. It features the new TORX FAN 3.0 combined with ground-breaking aerodynamic feats. This means stable performance and a silent experience are guaranteed thanks to low temperatures.

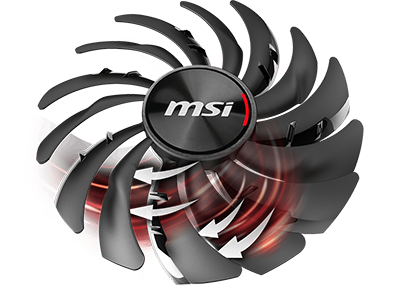

MSI's TORX FAN 3.0 Technology
Award winning COOLING PERFORMANCE A brand new version of the iconic MSI TORX fan pushes the limits of thermal performance yet further than before. The new trims clearly visible on the traditional fan blade create a focused airflow which in turn is pushed down by the dispersion fan blades for increased static pressure.
Dispersion Fan BladesTORX 3.0 Fans have a special curved blade which accelerates the airflow, increasing its effectiveness.
Traditional Fan BladeA Traditional Fan Blade pushes down a steady airflow to the massive heatsink below.
Zero FROZR Stay Undetected
Intelligent Fans Keep Audio Levels Down First introduced in 2008 by MSI, ZERO FROZR technology stops the fans completely when temperatures are relatively low, eliminating all fan noise when no cooling is needed. When the heat is on during gaming, the fans will automatically start spinning again to keep your powerhouse cool.
Fans SpinningDuring intense gaming or benchmarking.
Fans StopCompletely silent during idle, multimedia or light gaming.
Tweak your GPU with MSI Afterburner
Gain a performance boost to your system MSI Afterburner is the world's most recognized and widely used graphics card Overclocking software. It gives you full control of your graphics card and enables you to monitor your system’s key metrics in real-time. The latest version of MSI Afterburner features OC Scanner for RTX 20 series graphics cards. OC Scanner is an automated function that will find the highest stable overclock settings for your card. Giving you a free performance boost for a smooth in-game experience thanks to higher FPS.

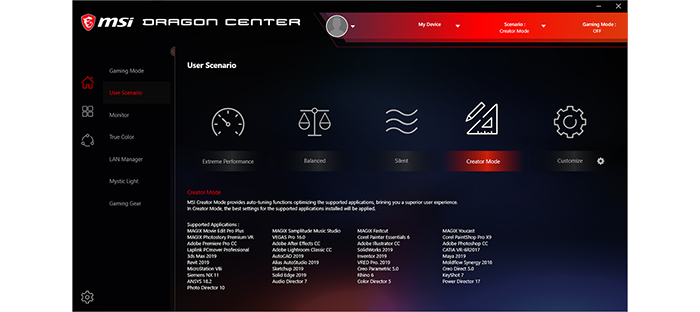

It All Comes Together with MSI Dragon Centre
Control to Showcase your style Eventually Dragon Centre will be the only MSI software you need to install for full functionality of your MSI Desktop, Graphics Card, Motherboard or even Gaming Gear. Thanks to a modular concept, the application will automatically detect new MSI hardware once added. Based on the hardware in your system it will offer the relevant software drivers for your specific setup.
Brand New RDNA Architecture with 7nm Process
Reduces latency and provides higher bandwidthThe Radeon RX 5700 Series GPUs are powered by the new RDNA architecture, the heart of advanced 7nm technology process. RDNA features up to 40 completely redesigned Compute Units delivering incredible performance and and a multi-level cache hierarchy designed to provide reduced latency, higher bandwidth and lower power. Delivering up to 1.25X higher performance-per-clock and up to 1.5X higher performance-per-watt compared to the previous-generation Graphics Core Next architecture.
Featuring the First AMD GDDR6 PCIe 4.0 Graphics Cards
Super-fast performance for todays demanding titlesEquipped with 8GB of advanced GDDR6 memory to provide high bandwidth of up to 448 GB/s, enabling 1440p performance for today’s most demanding games. Radeon RX 5700 series features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
Superior Gaming Performance with FreeSync Monitors
Smooth Refresh Rate so you can Game at your Best Pair your new AMD Radeon GPU with a large selection of FreeSync gaming monitors. With such a wide array of monitors equipped with Radeon FreeSync or Radeon FreeSync2 HDR available you can enjoy choosing monitors that are styled and run how you want, but by choosing a monitor with FreeSync and combining it with an AMD card of this caliber the results will be a stutter-free, tear-free and artifact-free smooth gaming experience.
AMD Graphics Card Specifications
| AMD Radeon RX Card Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | RX 5700 XT | RX 5700 | VII | RX Vega 64 | RX Vega 56 | RX 590 | RX 580 | RX 570 | RX 560 | RX 550 | |||||||||
| Architecture | RDNA | RDNA | GCN 5th | GCN 5th | GCN 5th | GCN 4th | GCN 4th | GCN 4th | GCN 4th | GCN 4th | |||||||||
| GPU | Navi 10 | Navi 10 | Vega 20 | Vega 10 | Vega 10 | Polaris | Polaris XTX | Polaris 20 Pro | Baffin | Baffin | |||||||||
| Stream Processors | 2,560 | 2,304 | 3,840 | 4,096 | 3,584 | 2,304 | 2,304 | 2,048 | 896/1024 | 512/640 | |||||||||
| Reference Base Clock | 1,605 MHz | 1,465 MHz | 1,400 MHz | 1,247 MHz | 1,156 MHz | 1,469 MHz | 1,257 MHz | 1,168 MHz | 1,175 MHz | 1,287 MHz | |||||||||
| Reference Boost Clock | 1,905 MHz | 1,725 MHz | 1,750 MHz | 1,546 MHz | 1,471 MHz | 1,545 MHz | 1,340 MHz | 1,244 MHz | 1,275 MHz | 1,287 MHz | |||||||||
| Memory | 8GB GDDR6 | 8GB GDDR6 | 16GB HBM2 | 8GB HBM2 | 8GB HBM2 | 8GB GDDR5 | 4GB/8GB GDDR5 | 4GB/8GB GDDR5 | 4GB GDDR5 | 4GB GDDR5 | |||||||||
| Memory Controller | 256-bit | 256-bit | 4096-bit | 2048-bit | 2048-bit | 256-bit | 256-bit | 224-bit | 128-bit | 64/128-bit | |||||||||
| TDP | 225W | 225W | 300W | 295W | 210W | 225W | 185W | 150W | 60-80W | 50W | |||||||||
