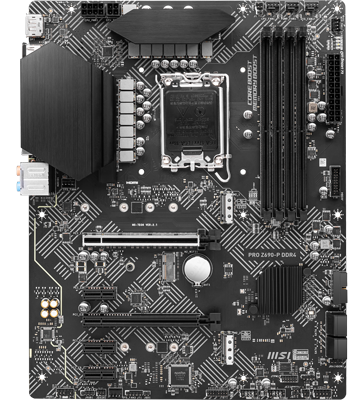

PRO Z690-P DDR4 12th Generation Intel ATX Motherboard from MSI

MSI Z690

Business Elegance Redefined Meet the Pro Z690-P DDR4; here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MSI Z690 Pro-P is perfect for both daily users and performance enthusiasts and is filled with the latest technologies including; the very latest 5th generation PCI-e solution, superb storage options with 2x m.2 slots (2x PCIe Gen4x4), lightning 20G USB connectivity, Core & DDR4 Memory boosts, extended heatsink design, Ez debug LEDs, Frozr AI cooling and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

ATXForm Factor

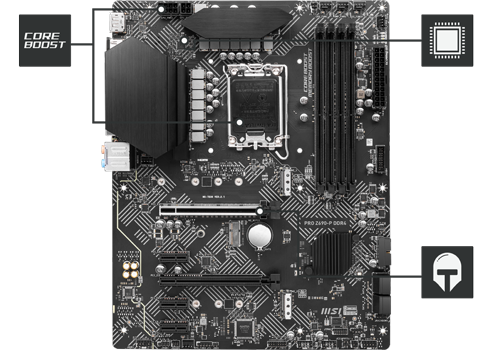

Special Features of the Pro Z690-P

4K Recording
down

Core Boost
Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

up

Digital
PWM
High quality digital power IC ensures your system runs smoothly even under extreme loads.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

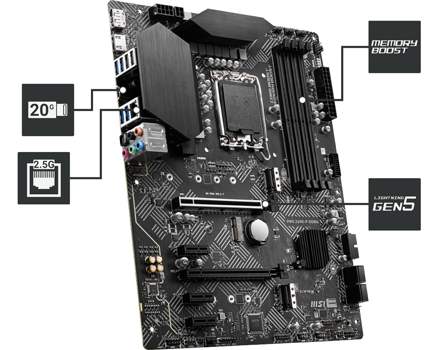

Next Generation Connectivity with MSI

4K Recording
down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivering a better network experience.

up

Lightning USB 20GBuilt-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

up

Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

up

All-New PCI-e 5.0 The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

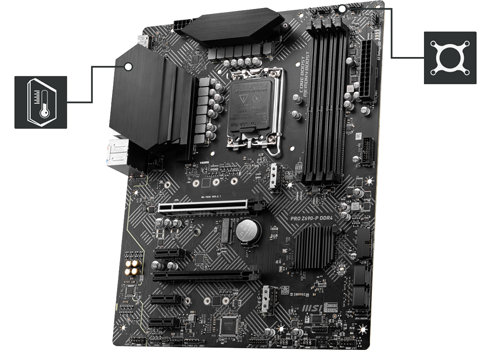

Premium Thermal Solution

4K Recording
up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

up

Enlarged HeatsinkMSI extended PWM heatsink and enhanced circuit design ensures even high-end processors can run at full speed.

Additional Thermal Protection

4K Recording

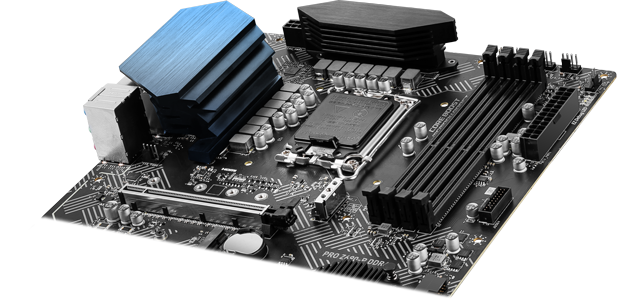

Extended HeatsinkThis all metal extended heatsink increases the overall available surface area of heat dissipation, ensuring that heat is removed quickly and efficiently from your motherboard allowing your CPU to take on the highest of demands.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Incredible Storage Options

4K Recording

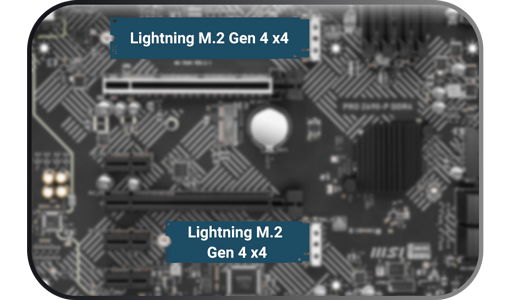

LIGHTNING GEN 4 M.2 The Z560 Pro-P DDR4 is capable of housing two M.2 storage drives running at PCIe Gen4 giving you double the bandwidth of it's predecessor, however it remains backwards compatible if you don't yet own a newer drive.

The Next Generation

4K Recording

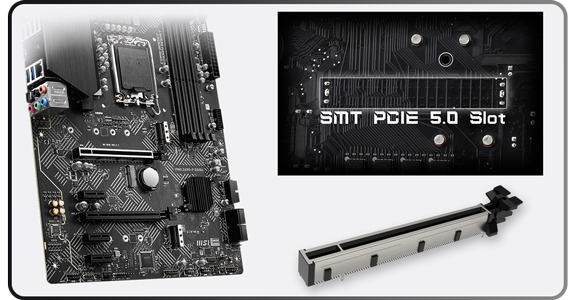

Lightning Gen 5 PCI-EMSI Lightning Gen 5 PCI-E takes the theoretical bandwidth of a x16 interface to whopping 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot reduces any interference and electrical noise, fully supporting the higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

Fortify Your System

4K Recording

MSI Steel PCIe ArmourMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points are capable of supporting even the weight of the heaviest graphics cards. Plus when every advantage in games counts, Steel Armor protects the point of contact from external electromagnetic interference.

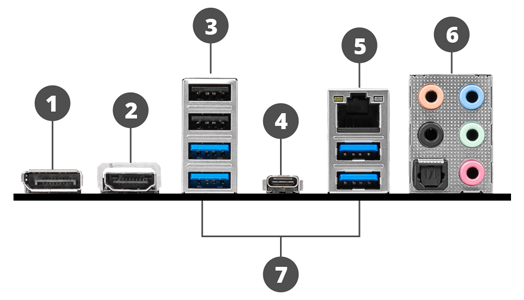

A Fully Comprehensive I/O

4K Recording

1. DisplayPort

2. HDMI

3. 2x USB 2.0

4. 1x USB 3.2 Gen2x2 Type-C

5. RJ-45

6. HD Audio Connectors

7. 4x USB 3.2 Gen1 Type-A

Specifications
Core Specifications
Edition PRO Z690-P DDR4
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5200+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 1.4b
  • 1 x Headphone-Out
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN120176
Model Number PRO Z690-P DDR4
GTIN 4719072902940
