MSI PRO DP20Z 5M AMD AM4 Barebone Mini PC

MSI PRO DP20Z 5M-001BEU Barebone PC, AMD Socket AM4, DDR4, HDMI/DisplayPort, ac WiFi/BT4.2, GbE, 2x M.2 / 2.5" SATA

Thumbnail 1 : MSI PRO DP20Z 5M AMD AM4 Barebone Mini PC Thumbnail 2 : MSI PRO DP20Z 5M AMD AM4 Barebone Mini PC Thumbnail 3 : MSI PRO DP20Z 5M AMD AM4 Barebone Mini PC Thumbnail 4 : MSI PRO DP20Z 5M AMD AM4 Barebone Mini PC
Scan code: LN122419 Manufacturer code: 936-B0A211-001
£143.99
Order now and get it tomorrow, Fri 21st Jan
From £12.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £12.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £143.99
Total inc. interest: £143.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

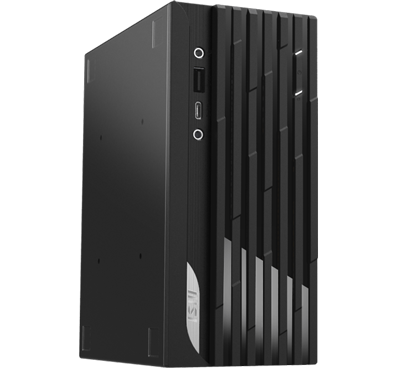

MSI PRO DP20Z Business and Productivity Mini PC

MSI PRO DP20Z

Be your window to the world Ready for various scenarios the PRO DP20Z 5M from MSI is built for business. MSI always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

Be Productive & Effective

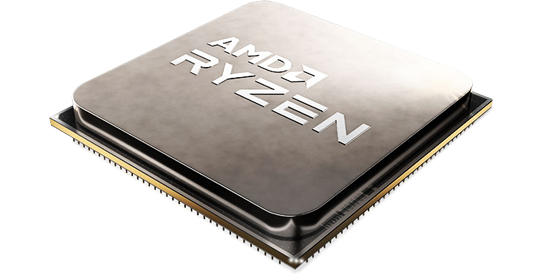

Ryzen

A performance you can rely on It is indispensable to have a stable and efficient power for you and your business. The latest AMD Ryzen™ 5000 Series Socket AM4 Processors deliver the ultimate in high performance, whether you are crunching scientific data or designing your business logo, you are always in the lead.

Up to Ryzen™ 7 5700GAMD Processor

Up to 64GBDual Channel Memory

Windows 10 ProSupport

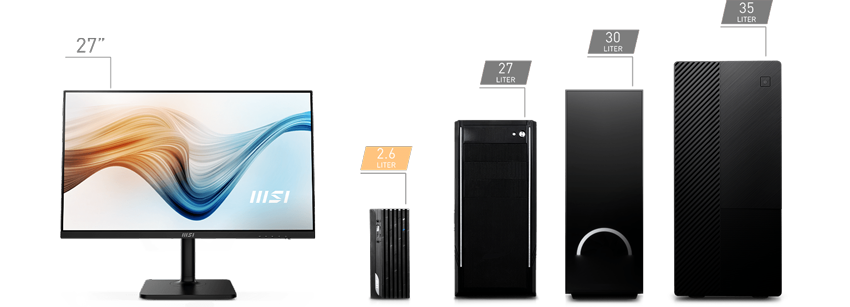

Small but Powerful

power

Built for a Supreme Performance The same performance as a big rig but in a only 2.6L chassis so you can take it anywhere. Users can easily upgrade two M.2 SSD, two 2.5” HDD/SSD and two SO-DIMM by disassembling the side covers. Made PRO DP20Z an even flexible desktop and also reduce the time wasting on upgrading.

Visual Intensity Delivered to you

4K

Support Up To 4K Resolution PRO DP20Z supporting [email protected] allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

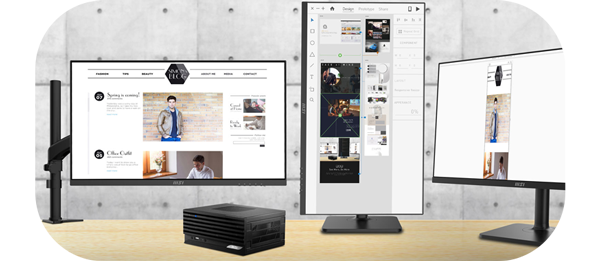

See More, Do More

Display

Support for more monitors With one DP-out, one HDMI-out and a VGA port, PRO DP20Z 5M allows you to extend three monitors to pre-view your E-commerce content & data at home or in the office that enhance the efficiency for you.

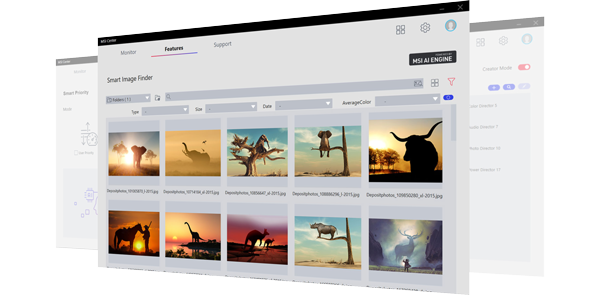

MSI Center

center

Support for more monitors The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
* The interface and functionality may differ due to version change.
Please download the latest MSI Center APP through Microsoft Store.

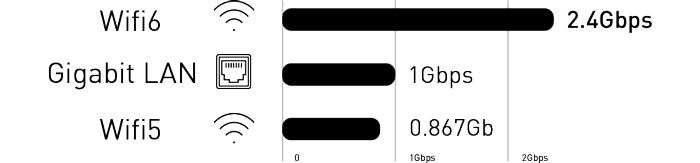

Wi-Fi 6 Technology

wifi

3X FasterProcessor

75%Latency

Up to 2.4Gbps

Reliable connections Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous gen. With Wi-Fi 6 technology, the connectivity to the world will be unlimited.

features

USB 3.2 GEN 2 Type-C & Type AWith data transfer speeds up to 10Gbps, two USB 3.2 Gen 2 Type A and one Type C ports offer twice the bandwidth of the older USB 3.1 Gen 1 ports, effectively halving any data delay or waiting time. The reversible Type-C connector allows for effortless connecting of USB devices.

features

FW TPM SUPPORTFW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

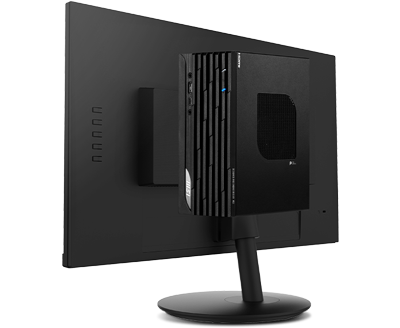

VESA Mount Support

vesa

Versatile design VESA Mountable design allows users to hook PRO DP20Z 5M up anywhere you like or mount it with PRO MP242 Series. Not only improve the flexibility of using PRO DP20Z, but also let users make good use of their space at home or at office.

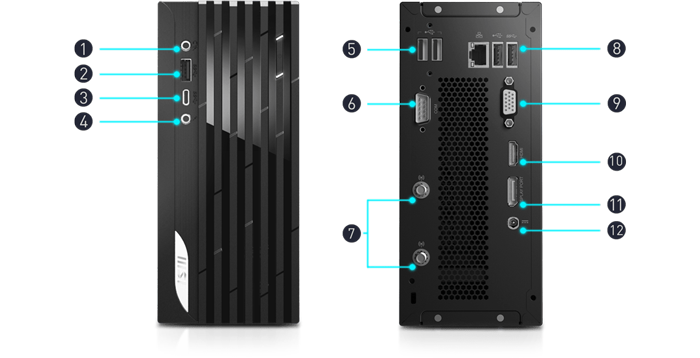

Various IO Ports

ports

connect to your devices With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.

Front: 1. 1x Mic-in/Headphone-out
2. 1x USB 3.2 Gen2 Type A
3. 1x USB 3.2 Gen2 Type C
4. 1x Mic-in

Rear: 5. 2x USB 2.0 Type A
6. 1x COM Port (optional)
7. 2x Wi-Fi Antenna
8. 1x USB 3.2 Gen2 Type A / 1x USB 2.0 Type A / 1x RJ45
9. 1x VGA out
10. 1x HDMI out (2.0)
11. 1x DP out
12. 1x DC Jack

Specifications
Edition DP20Z 5M-001BEU
Form Factor
CPU Included No
CPU Type
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket AM4
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 3200
Max. Memory Capacity 64GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 2 x M.2, 22-80, PCIe Gen3x4
  • 2 x SATA 6GB/s
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays 2 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O
  • 2 x M.2
  • 2 x SATA III - 6Gb/s
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ac WiFi + BT4.2
  • 1 x Realtek RTL8111H (Gigabit LAN)
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Mic In
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Back Panel
  • 1 x D-Sub (VGA) Out
  • 1 x DC-In Jack
  • 1 x DisplayPort
  • 1 x HDMI 2.0
  • 1 x RJ-45
  • 3 x USB 2.0
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x WiFi 802.11ac/BT4.2 Module
  • 2 x WiFi Antenna connectors
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 120 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 85 x 193.3 x 160.55 (mm WxHxD)
Weight 2.34 kg
Includes
Notes
Additional Information
Scan Code LN122419
Model Number 936-B0A211-001
GTIN 4719072812652
