Scan code: LN122433 Manufacturer code: PRO B660M-A WIFI DDR4

MSI Intel B660 PRO B660M-A WIFI DDR4 mATX Motherboard

MSI PRO B660M-A WIFI DDR4, Intel B660, S 1700, DDR4, SATA3, PCIe 4.0, Dual M.2, 2.5GbE, ax/BT5.2, USB 3.2 Gen1 A, mATX

Thumbnail 1 : MSI Intel B660 PRO B660M-A WIFI DDR4 mATX Motherboard Thumbnail 2 : MSI Intel B660 PRO B660M-A WIFI DDR4 mATX Motherboard Thumbnail 3 : MSI Intel B660 PRO B660M-A WIFI DDR4 mATX Motherboard Thumbnail 4 : MSI Intel B660 PRO B660M-A WIFI DDR4 mATX Motherboard
Scan code: LN122433 Manufacturer code: PRO B660M-A WIFI DDR4
Order now and get it tomorrow, Thu 26th May
Was: £144.98
£139.98
Get it Tomorrow, 26 MayIn stock
From £12.04 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £12.04
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £139.98
Total inc. interest: £144.38
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

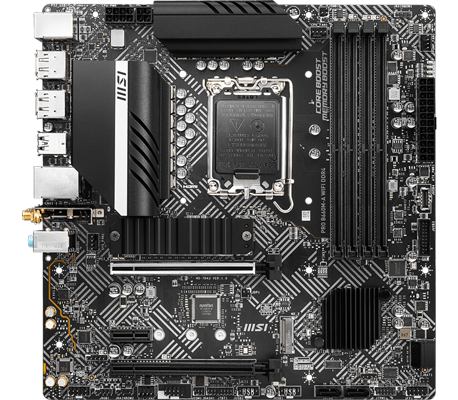

PRO B660M-A DDR4 WIFI Intel 12th Gen M-ATX Motherboard from MSI

MSI B660M Pro-A WIFI Intel M-Atx Motherboard

Business Oriented Design MSI have returned with the Pro B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The PRO B660M-A DDR4 WIFI is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset that includes ample RAM capacity. The PRO B660M-A DDR4 features PCIe 4.0 technology, Dual Gen4 M.2 support, Core & DDR4 Memory boosts, a thorough cooling solution M.2 Shield Frozr and Frozr AI cooling, EZ Debug LEDs, front panel Type-C connectivity, Wifi 6 support and a fully comprehensive rear I/O. The PRO B660M-A DDR4 WIFIcombines all of these features with incredible durability and stunning aesthetics, creating the perfect motherboard for daily usage and PC enthusiasts.

Intel B660Chipset

LGA 1700CPU Socket

12th generation IntelCompatible CPUs

M-ATXForm Factor

Experience The Boundaries Of Modern Performance

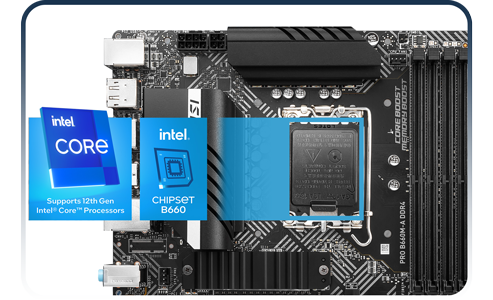

12th Gen Intel

Supports Intel Core 12th Gen ProcessorsThe PRO B660M-A DDR4 WIFI motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.-

Experience Core Boost

core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Designed To Keep Your Components Cool

VRM HeatsinksEnsure excellent thermal dissipation under heavy loading.

PCB CoolingPrinted circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

core boost

Chipset HeatsinkProvides passive cooling.

Frozr AI CoolingAutomatically adjusts system fan settings based on CPU & GPU demand.

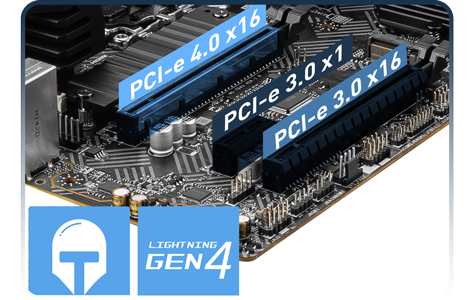

The Next Generation

PCIe Gen4

FORTIFIED PCI-E 4.0 X16MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

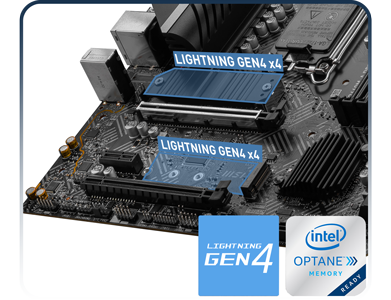

Fast and Future-Ready Storage

Gen4 Storage

2 x Gen4 x4 64Gb/s slotsMSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

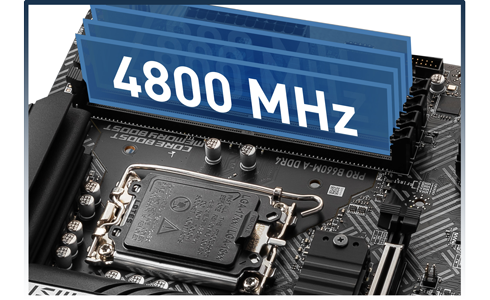

Maximise Your Memory

Memory XMP

4 X DDR4 DUAL CHANNEL MemoryA fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimised memory speed and stability.

Super Speed Your Network

Memory XMP

WiFi 6 ConnectivityThe WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

Specifications
Core Specifications
Edition PRO B660M-A WIFI DDR4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2666
  • DDR4 - 3200
  • DDR4 - 3600+(OC)
  • DDR4 - 4000+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TBT connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN122433
Model Number PRO B660M-A WIFI DDR4
GTIN 4719072912444
