PRO B660M-A DDR4 Intel 12th Gen M-ATX Motherboard from MSI

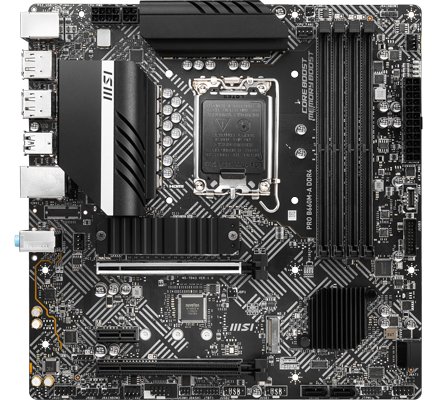

MSI B660M Pro-A Intel M-Atx Motherboard

Business Oriented Design MSI have returned with the Pro B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The PRO B660M-A DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset that includes ample RAM capacity. The PRO B660M-A DDR4 features PCIe 4.0 technology, Dual Gen4 M.2 support, Core & DDR4 Memory boosts, a thorough cooling solution M.2 Shield Frozr and Frozr AI cooling, EZ Debug LEDs, front panel Type-C connectivity and a fully comprehensive rear I/O. The PRO B660M-A DDR4 combines all of these features with incredible durability and stunning aesthetics, creating the perfect motherboard for daily usage and PC enthusiasts.

Intel B660Chipset

LGA 1700CPU Socket

12th generation IntelCompatible CPUs

M-ATXForm Factor

Experience The Boundaries Of Modern Performance

12th Gen Intel

Supports Intel Core 12th Gen ProcessorsThe PRO B660M-A DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.-

Experience Core Boost

core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.

Designed To Keep Your Components Cool

VRM HeatsinksEnsure excellent thermal dissipation under heavy loading.

PCB CoolingPrinted circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

core boost

Chipset HeatsinkProvides passive cooling.

Frozr AI CoolingAutomatically adjusts system fan settings based on CPU & GPU demand.

The Next Generation

PCIe Gen4

FORTIFIED PCI-E 4.0 X16MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Fast and Future-Ready Storage

Gen4 Storage

2 x Gen4 x4 64Gb/s slotsMSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

Maximise Your Memory

Memory XMP

4 X DDR4 DUAL CHANNEL MemoryA fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimised memory speed and stability.

Specifications
Core Specifications
Edition PRO B660M-A DDR4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 4000(OC)
  • DDR4 - 4600+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Connector
  • 2 x M.2
  • 1 x MONO out header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SMBus header
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM (Trusted Platform Module)
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen 2 Type-A
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 3 x Audio I/O
  • 1 x D-Sub (VGA)
  • 2 x DisplayPort 1.4
  • 2 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-In (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
