Scan code: LN122432 Manufacturer code: PRO B660-A DDR4

MSI Intel B660 PRO B660-A DDR4 ATX Motherboard

MSI PRO B660-A DDR4, Intel B660, S 1700, DDR4, SATA3, Dual M.2, CrossFire, 2.5GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : MSI Intel B660 PRO B660-A DDR4 ATX Motherboard Thumbnail 2 : MSI Intel B660 PRO B660-A DDR4 ATX Motherboard Thumbnail 3 : MSI Intel B660 PRO B660-A DDR4 ATX Motherboard Thumbnail 4 : MSI Intel B660 PRO B660-A DDR4 ATX Motherboard
Scan code: LN122432 Manufacturer code: PRO B660-A DDR4
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£144.98
Get it Tomorrow, 22 MayIn stock
From £12.47 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £12.47
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £144.98
Total inc. interest: £149.53
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

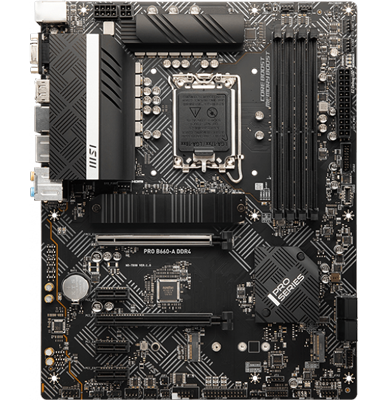

PRO B660-A DDR4 Intel 12th Gen ATX Motherboard from MSI

MSI B660 Pro-A Intel ATX Motherboard

Business Oriented Design MSI have returned with the Pro B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The PRO B660-A DDR4 is a business-oriented ATX motherboard featuring the latest Intel B660 chipset and delivering an efficient and productive experience via high-quality assembly and stable functionality. The PRO B660-A DDR4 features PCIe 4.0 technology, Dual Gen4 M.2 support, Core & DDR4 Memory boosts, a thorough cooling solution through MSI exclusive extended heatsink design, M.2 Shield Frozr and Frozr AI cooling, EZ Debug LEDs, front-panel type-c connectivity and a comprehensive rear I/O. The PRO B660-A DDR4 combines all of these features with incredible durability and stunning aesthetics, creating the perfect motherboard for daily usage and PC enthusiasts.

Intel B660Chipset

LGA 1700CPU Socket

12th generation IntelCompatible CPUs

ATXForm Factor

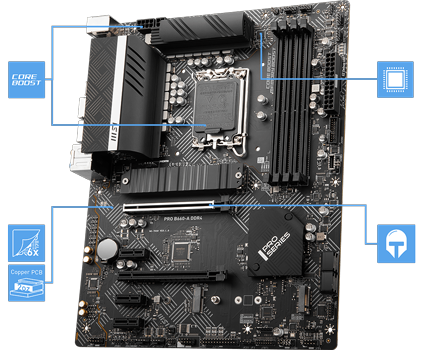

An incredible Feature-Set

down

CORE BOOSTCombining 1 x 8 + 1 x 4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

Digital PWM12 Duet Rail CPU Power System with high quality digital power IC design for multi-core CPU.

6 Layer PCB with 2oz Thickened Copper6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

PCI-E Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

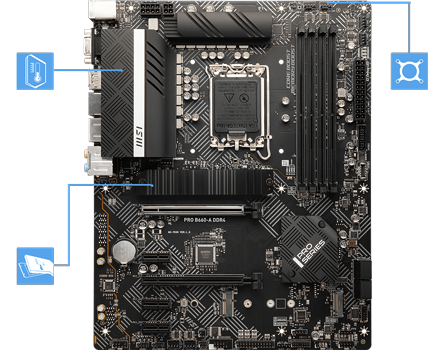

Robust and Powerful Cooling

down

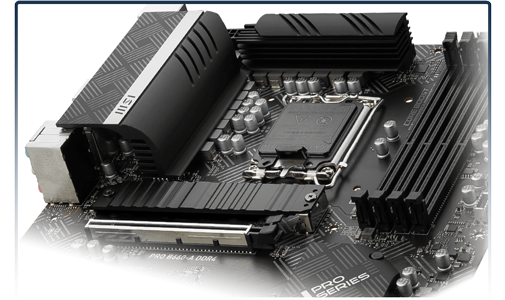

Extended HeatsinkMSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

M.2 FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

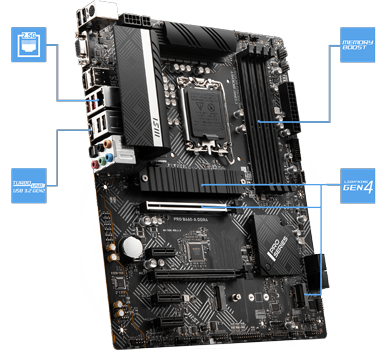

Next Generation Connectivity

down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

Turbo USB 3.2 Gen 2Featuring the Turbo USB 3.2 Gen 2, with reversible Type-C connector.

Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

A Thermal Solution to Control Breathtaking performance

12th Gen Intel

Supports Intel Core 12th Gen ProcessorsWith more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

The Next Generation

PCIe Gen4

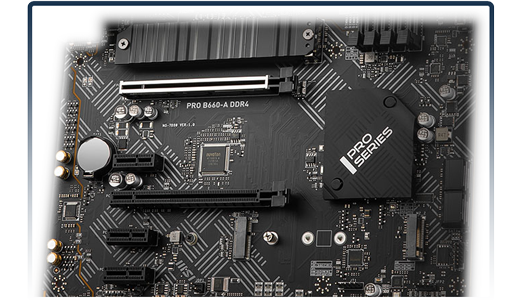

LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

LIGHTNING GEN 4 M.2Utilising 12th Gen Intel Core processors, MSI PRO B660-A DDR4 motherboard features latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

Maximise Your Memory

Memory XMP

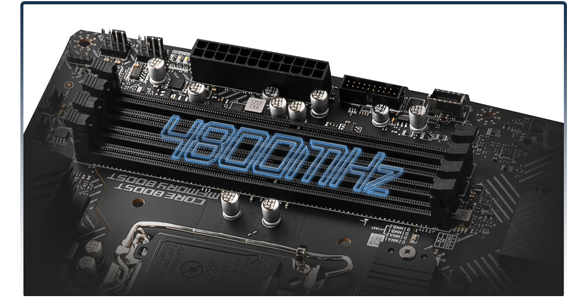

4 X DDR4 DUAL CHANNEL MemoryA fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimised memory speed and stability.

Specifications
Core Specifications
Edition PRO B660-A DDR4
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2666
  • DDR4 - 3200
  • DDR4 - 3600+(OC)
  • DDR4 - 4000+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 5 x System Fan header
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x 2.5 Gigabit LAN
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN122432
Model Number PRO B660-A DDR4
GTIN 4719072912451
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
