MSI AMD Ryzen PRO B650M-A WIFI6E AM5 PCIe 4.0 DDR5 MicroATX Motherboard
MSI AMD Ryzen PRO B650M-A WIFI6E AM5 PCIe 4.0 DDR5 MicroATX Motherboard
Scan code: LN129285 Manufacturer code: PRO B650M-A WIFI
£161.99
Add To Basket
Get it Tomorrow, 21 MayIn stock
  • Thumbnail 1 : MSI AMD Ryzen PRO B650M-A WIFI6E AM5 PCIe 4.0 DDR5 MicroATX Motherboard
  • Thumbnail 2 : MSI AMD Ryzen PRO B650M-A WIFI6E AM5 PCIe 4.0 DDR5 MicroATX Motherboard
  • Thumbnail 3 : MSI AMD Ryzen PRO B650M-A WIFI6E AM5 PCIe 4.0 DDR5 MicroATX Motherboard
  • Thumbnail 4 : MSI AMD Ryzen PRO B650M-A WIFI6E AM5 PCIe 4.0 DDR5 MicroATX Motherboard

MSI AMD Ryzen PRO B650M-A WIFI6E AM5 PCIe 4.0 DDR5 MicroATX Motherboard

MSI PRO B650M-A WIFI, AMD B650, AM5, DDR5, PCIe 4.0, SATA3, 2x M.2, 2.5GbE/WiFi 6E, AMD EXPO, MicroATX
MORE INFO
MORE INFO

Scan code: LN129285 Manufacturer code: PRO B650M-A WIFI
£161.99
£5.48 Next day delivery
Order now and get it tomorrow, Wed 21st May
Add To Basket
Get it Tomorrow, 21 MayIn stock
Pay in 3 interest-free payments of £54.00

Email me when the availability or price changes

  • By DPD On 21st May Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Frequently Bought Together

MSI PRO B650M-A WIFI AM5 m-ATX Motherboard

MSI B650 Motherboard

Ready For the 7000 SeriesMSIs pro series is tailored to professionals from all walks of life, featuring impressive performance, impeccable durability and a stunning user experience the PRO B650M-A WIFI has been crafted to boost multi-tasking and efficiency across the board. The PRO B650M-A WIFI boasts a smaller m-ATX form factor, exclusive MSI Core Boost technology, a maximum of 2x M.2 connectors for impressive storage (2x Gen4), a premium cooling solution including, 7W/mK thermal pads and M.2 Shield Frozr technology, Lightning Gen4 PCIe, DDR5 memory, WiFi 6E connectivity and a D.I.Y friendly design ensures extraordinary performance and style. Created by professionals for professionals, trust in MSI PRO series.

AMD B650Chipset

AM5CPU Socket

AMD Ryzen™ 7000 SeriesCompatible CPU

M-ATXForm Factor

Outstanding Cooling Solution

Incredible Features
2.5G LAN

2.5G Network Solution

WIFI 6E Support

Wifi 6E

M2 Shield Frozr Technology

M2 Shield Frozr

PCIe Gen 4.0 Support

Lightning Gen4

DDR5 Memory Ready

DDR5 Memory Support

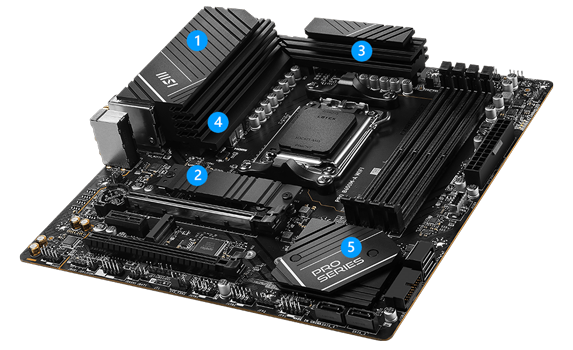

Massive Cooling Potential

1. Extended HeatsinksLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.

Massive Cooling heatsinks

3. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat.

4. 7W/mK Thermal Pad & Additional Choke Pad High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

5. Chipset Heatsink The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

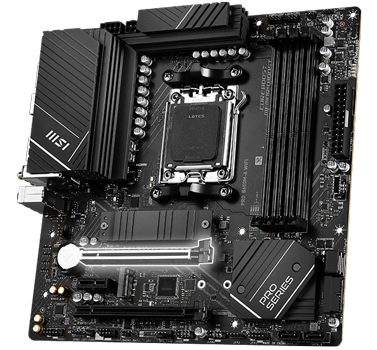

Embrace Lightning Speeds

PCIE 4 slots

LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI Steel Armor SlotMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Maximise Your Storage Capabilities

Future Ready Storage

Fast and future ready storageMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

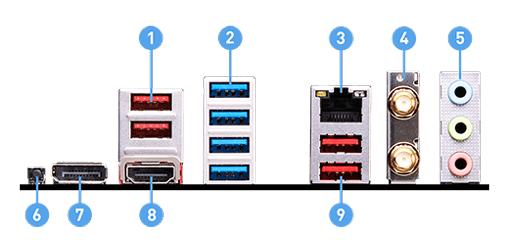

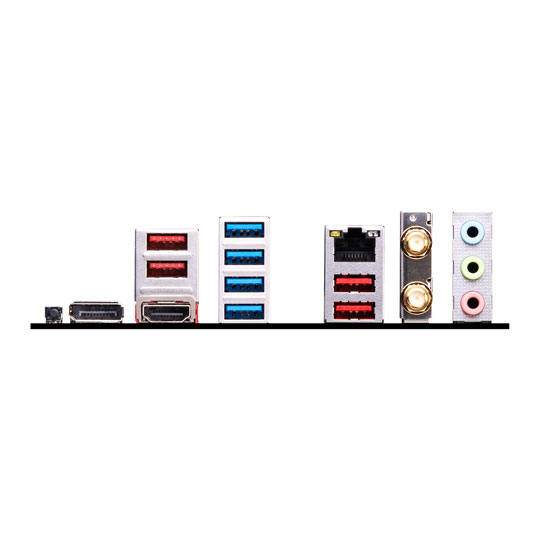

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: USB 3.2 Gen 2 10Gbps (Type-A)
2: USB 3.2 Gen 1 5Gbps (Type-A)
3: 2.5G LAN
4: Wi-Fi / Bluetooth
5: Audio connectors
6: Flash BIOS Button
7: DisplayPort
8: HDMI™
9: USB 3.2 Gen 2 10Gbps (Type-A)

Specifications
Core Specifications
Edition PRO B650M-A WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x Serial (COM) Header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 2 x USB 3.2 Gen 2 Type-A
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out
  • 4 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84mm x 243.84mm mm
Note
Additional Information
Scan Code LN129285
Model Number PRO B650M-A WIFI
GTIN 4711377010160
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
