MSI MPG Intel Z690 EDGE WIFI DDR5 ATX Motherboard
MSI MPG Z690 EDGE WIFI, DDR5, Intel Z690, S 1700, SATA3, PCIe 5.0, 4x M.2, WiFi 6E, 2.5GbE, USB 3.2 Gen2x2, ATX
|Instalment Rate:||9.9% p.a. (fixed)|
|Cost of purchase:||£309.98|
|Total inc. interest:||£326.12|
|Instalment Rate:||9.9% p.a. (fixed)|
|Cost of purchase:||£309.98|
|Total inc. interest:||£341.50|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 10th Aug
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

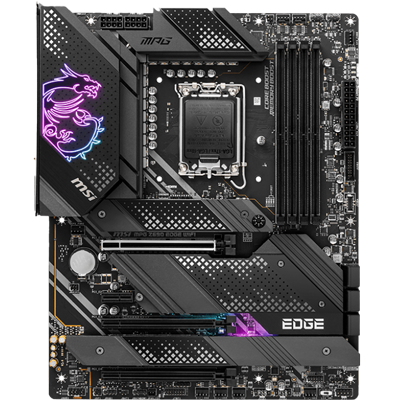

MPG Z690 Edge (WIFI) 12th Generation Intel ATX Motherboard from MSI
Blur The Line Between Performance and Aesthetics Take a step into the future. MSI have returned with the MPG Z690 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MSI Z690 Edge Wi-Fi is filled with premium tech and bolstered with an arsenal of top-shelf modern features like; the very latest 5th generation PCI-e solution, DDR5 memory, huge storage options with 4x m.2 slots (4x PCIe Gen4x4), lightning 20G USB connectivity, Audio/Core & DDR5 Memory boosts, a premium thermal design with heavy plated MOSFET heatsinks, high quality thermal pads, onboard M.2 Shield Frozr, Wi-Fi 6E support delivering speeds of up to 2400 Mbps and a fully comprehensive rear I/O. The Z690 Edge WiFi combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.
Special Features of the Z690 Edge WiFi
TechnologyCombining 2x 8 pin power connectors and premium layout design, ready for unleashing maximum performance.
PWMAn aggressive digital VRM power design with digital PWM IC and direct 16 phase power system with 75A Smart Power Stage.
PCB6 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability with no compromise.
Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.
Boost 5Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.

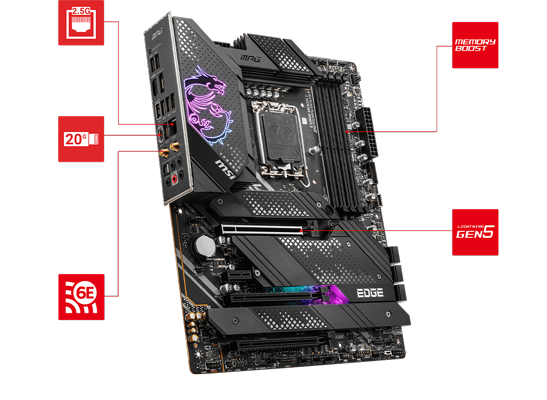

Next Generation Connectivity with MSI
2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.
Lightning USB 20GBuilt-in USB 3.2 Gen 2x2 port, offers up to 20Gbps transmission speeds, 4X faster than USB 3.2 Gen 1.
Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
All-New PCI-e 5.0 The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.
Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Premium Thermal Solution
Premium Thermal DesignAluminium covered heatsink with heat-pipe, high quality 7W/mK mosfet thermal pads and extra choke thermal pads ensure all cores run at top form.
M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan SupportControl watercooling pump speeds for best flow and noise control.
Enlarged Chipset HeatsinkLarger heatsink for chipset ensures better heat dissipation and cooling effects.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
Aggressive Power Design
2x 8PinCPU Power connectors
16 Direct Power Phases
1 PhaseGT Power
1 PhaseAUX Power
Digital PWM IC
DIRECT 16 + 1 +1 PHASE POWER DESIGNUnleash, squeeze and sustain maximum CPU performance with an aggressive VRM design built with a total of direct 16+1+1 power phases. Combining 2x 8-pin power connectors and exclusive MSI Core Boost technology, MPG series motherboards are ready to sustain heavy daily loads.
The Next Generation
Lightning Gen 5 PCI-EMSI Lightning Gen 5 PCI-E takes the theoretical bandwidth of a x16 interface to whopping 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot reduces any interference and electrical noise, fully supporting the higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

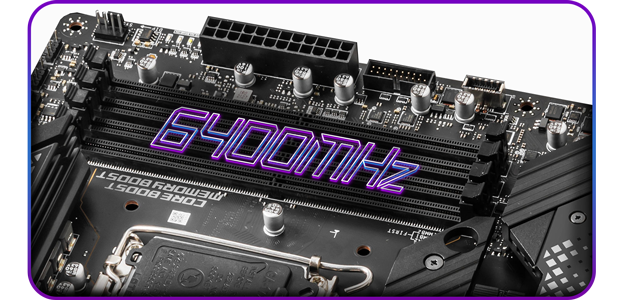

Get The Most from Your Memory
Brand-New DDR5 MemoryA huge step forwards for DDR performance enhancement with the latest DDR5 memory. Combined with the dedicated SMT welding process and MSI exclusive Memory Boost technology, MPG Z690 EDGE WIFI is ready to deliver world class memory performance.
Take Your Network To The Next Level
WI-FI 6EThe latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
Amp' Up Your Audio Experience
High Quality Capacitors
Dedicated Headphone Amplifier
MSI Audio boost 5 Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by an ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
High Quality Audio Jacks
ALC 4080 Audio Processor
Fortify Your System
MSI Steel PCIe ArmourMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points are capable of supporting even the weight of the heaviest graphics cards. Plus when every advantage in games counts, Steel Armor protects the point of contact from external electromagnetic interference.
A Fully Comprehensive I/O
4. HD Audio Connectors
5. Flash Bios
6. 2x USB 2.0
8. 5x USB 3.2 Gen2
9. 1x USB 3.2 Gen2x2
|Edition||MPG Z690 EDGE WIFI|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)|
|Memory Type (R/U)|
|Memory Speed (Mhz)||DDR5 - 6400+(OC)|
|Max. Memory Capacity|
|Audio||8-Channel(7.1) HD Audio with Audio Boost|
|Primary GPU Interface||PCIe 5.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||Supported|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||None|
|RAID Support via|
|Storage Mode Support|
|Internal I/O||6 x SATA III - 6Gb/s|
|Network Interface Type||
|Rear I/O Connectors||
|Model Number||MPG Z690 EDGE WIFI|
