MSI Intel MPG Z590M GAMING EDGE WIFI Micro-ATX Motherboard
MSI MPG Z590M GAMING EDGE WIFI, Intel Z590, S 1200, DDR4, SATA3, PCIe 4.0, M.2, 2.5GbE, USB 3.2 Gen2x2, Micro-ATX
|Instalment Rate:||0% p.a. (fixed)|
|Cost of purchase:||£189.98|
|Total inc. interest:||£189.98|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

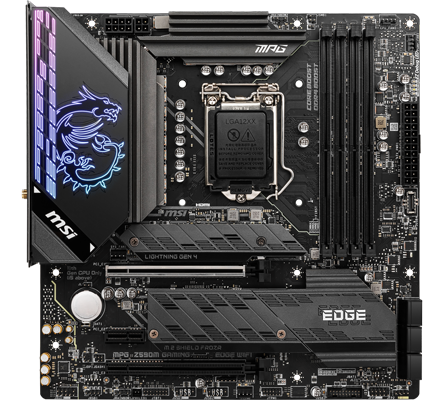

MPG Z590M GAMING EDGE WIFI 11th Generation Intel M-ATX Motherboard from MSI
Built on Solid Foundations Ready to experience the future of gaming? The MSI Z590M Gaming Edge Wifi is here to support the very latest 11th Generation Intel processors; Bolstered with an arsenal of top-shelf features including; an enhanced digital power design, outstanding cooling solution including an enlarged heatsink with heatpipes, MOSFET thermal pads, additional choke thermal pads and 2x M.2 Shield FROZR to ensure extreme performance with low temperatures, 2x M.2 connectors for maximum storage with one lightning PCIe 4.0 solution. Next generation connectivity is handled by an onboard 2.5G LAN and the latest Wi-Fi 6E support and in order to ensure maximum product longevity the motherboard itself has been fitted with a 6 layer PCB, plus a preinstalled I/O shield. Finally with support for MSI Mystic Light software, you have access to up to 16.8 Million covers and 29 different lighting effects for you to control and customise your lighting to fit you. Go on add a little bit of style. The Z590M GAMING EDGE WIFI has what it takes to ensure you receive a high performance immersive gaming experience. Can you handle it?

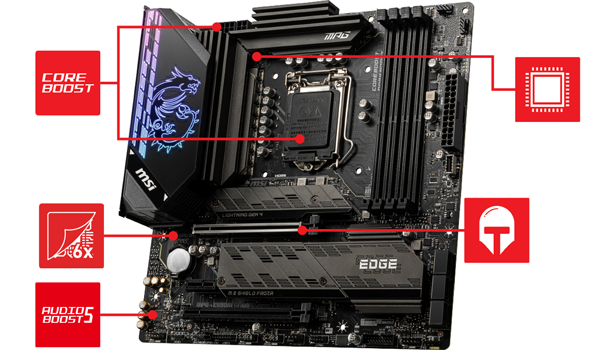

Special Features of the Z590M GAMING EDGE
PCB DesignMulti-layer printed circuity optimises power delivery increasing system stability and thermal efficiency.
PWMAn aggressive digital VRM power design with digital PWM IC and 12 Duet Rail CPU Power System with 60A DrMOS, make sure your system runs smoothly under the most extreme conditions.
BoostCombining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.
BoostIsolated audio with a high quality audio processor & amp for the most immersive gaming experience.

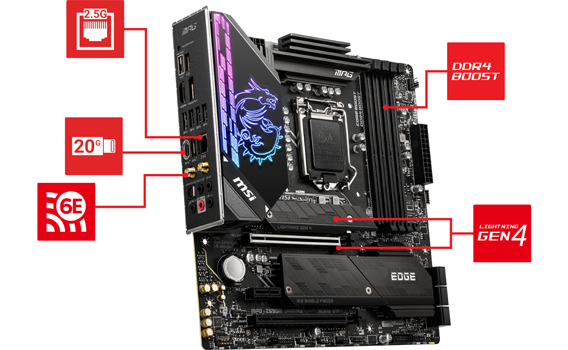

Next Generation Connectivity with MSI
2.5G LANGet ready to crush your enemies on the battlefield with MSI LAN Manager. Onboard 2.5G LAN delivers a supreme online experience without worrying about lag.
Lightning USB 20GBuilt-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Lightening Gen4The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Premium Thermal Solution
Premium Thermal DesignHeavy plated mosfet heatsink with heat-pipe, high quality 7W/mK mosfet thermal pads and extra choke thermal pads ensure all cores running in high performance.
M.2 FrozrOnboard m.2 thermal solution helps to prevent throttling keeping your M.2 SSDs safe and allowing them to run at maximum performance.
Pump Fan SupportControl watercooling pump speeds for optimum flow and noise control.
Enlarged Chipset HeatsinkA larger heatsink for the chipset ensures better heat dissipation and cooling effects.

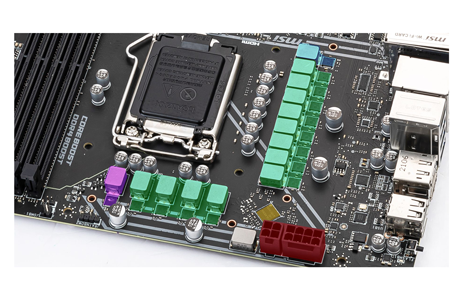

Unbelievable Power Solution
8+4 PinCPU Power Connectors
12Duet Rail CPU Power
1 PhaseSA Power
1 PhaseGT Power
Digital PWM IC
12 + 1 + 1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 Duet Rail Power System(DRPS). Combining 8 +4 pin power connectors and exclusive Core Boost technology, MPG series motherboards are ready to sustain heavy daily usage.
The Future is Now

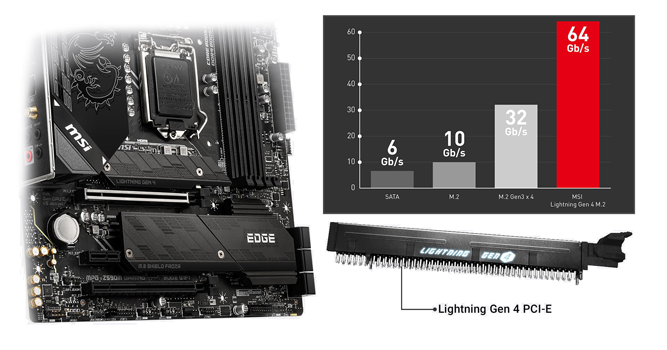

LIGHTNING GEN 4 SOLUTIONUtilising 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
Fast and Future Ready Storage
Maximum Storage SupportThe MPG Z590 GAMING EDGE series motherboard features dual M.2 connectors for maximum storage performance. The Industry leading design maximises bandwidth to fully utilise professional graphics cards and high-end storage devices, providing multiple configurations for demanding gamers and power users.
Unmatched Memory Performance
Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MPG Z590M GAMING EDGE WIFI supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
Professional Gaming Audio
Amplify your game with Audio Boost 5 Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.p>
Next Generation Connectivity
Wi-Fi 6e SupportUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

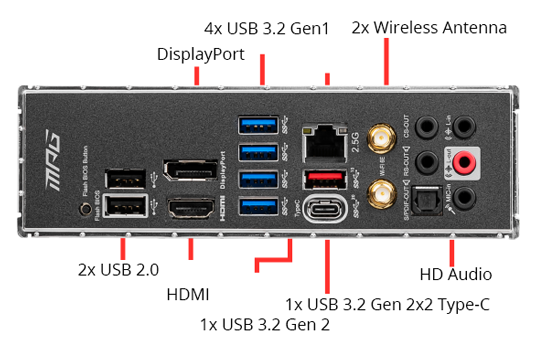

A Fully Comprehensive I/O
|Edition||MPG Z590M GAMING EDGE WIFI|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB|
|Audio||7.1 Channel HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|RAID Support via|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Board Dimensions||24.4 x 24.4 mm|
|Model Number||MPG Z590M GAMING EDGE WIFI|
