Scan code: LN92789 Manufacturer code: MPG Z390 GAMING PLUS

MSI MPG Intel Z390 GAMING PLUS 9th Gen ATX Motherboard

MSI MPG Z390 GAMING PLUS, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX

Thumbnail 1 : MSI MPG Intel Z390 GAMING PLUS 9th Gen ATX Motherboard Thumbnail 2 : MSI MPG Intel Z390 GAMING PLUS 9th Gen ATX Motherboard Thumbnail 3 : MSI MPG Intel Z390 GAMING PLUS 9th Gen ATX Motherboard Thumbnail 4 : MSI MPG Intel Z390 GAMING PLUS 9th Gen ATX Motherboard
Scan code: LN92789 Manufacturer code: MPG Z390 GAMING PLUS
£133.49Item currently awaiting an ETA
Pre order
From £11.99 / month (APR 14.9%)
Monthly Payment: £23.17
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £133.49
Total inc. interest: £138.98
Monthly Payment: £11.99
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £133.49
Total inc. interest: £143.79
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

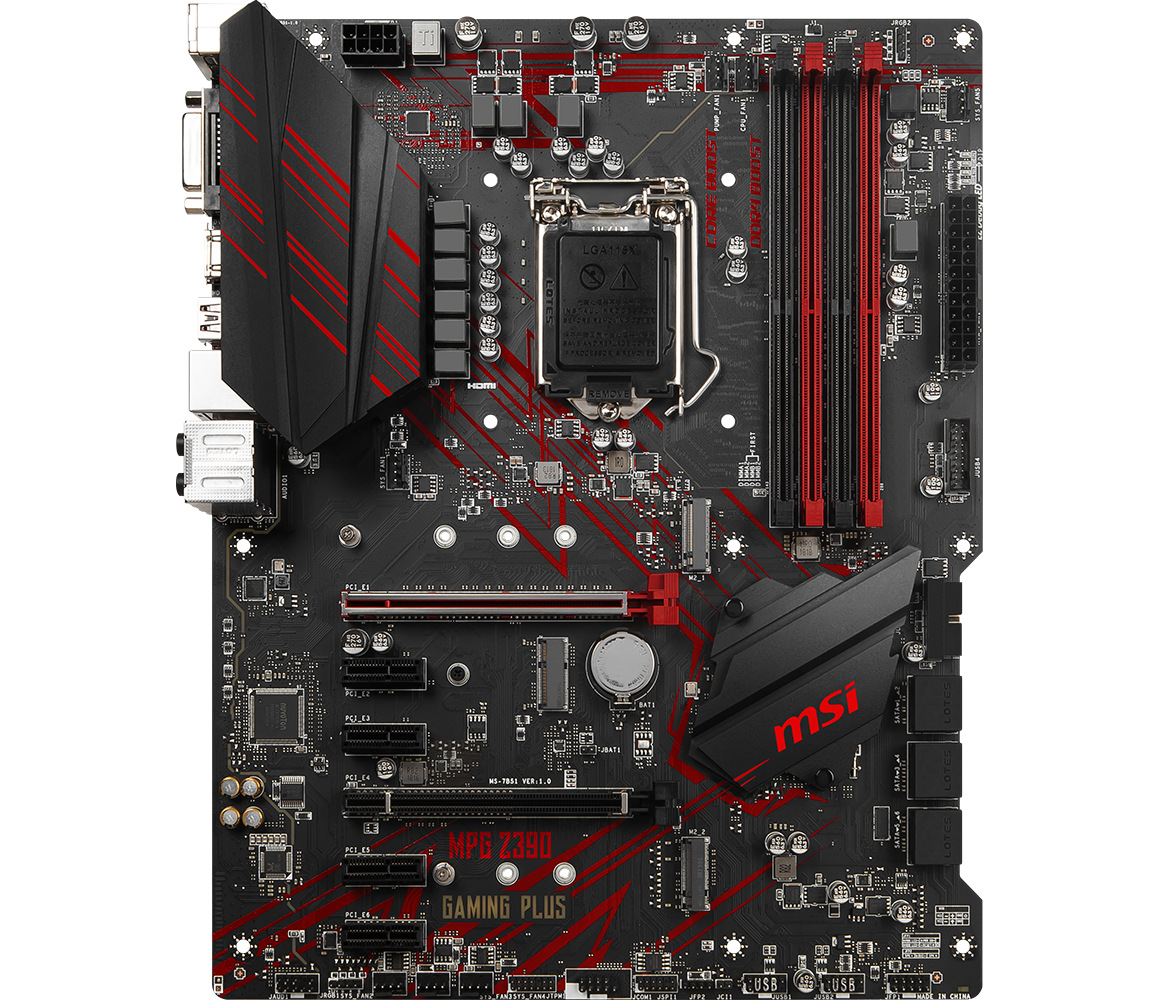

MSI MPG Z390 Gaming Plus - Intel 9th Gen Pro Gaming Motherboard

MSI Z390 Gaming Plus

BUILT FOR CONTENT CREATORS AND PROFESSIONALSGet serious gaming performance with the Z390 GAMING Plus and its arsenal of game enhancing abilities. GAMING LAN, Twin Turbo M.2, optimized gaming audio and great cooling with a striking red and black theme, are just a few of many empowering aspects. The Z390 Gaming Plus makes use of the Extended heatsink design combined with PCI-e lane armouring whilst boosts to other areas such as the DDR4 memory power help push this motherboard above others. Plus, you can be sure it will last thanks to the high-quality components used in construction. The irregular PCB design arranges SATA and USB cables simply and easily.

Please note: Z390 Motherboards are compatible with Intel 8th Gen 'Coffee Lake' and 9th Gen CPUs. Although these Intel Z390 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

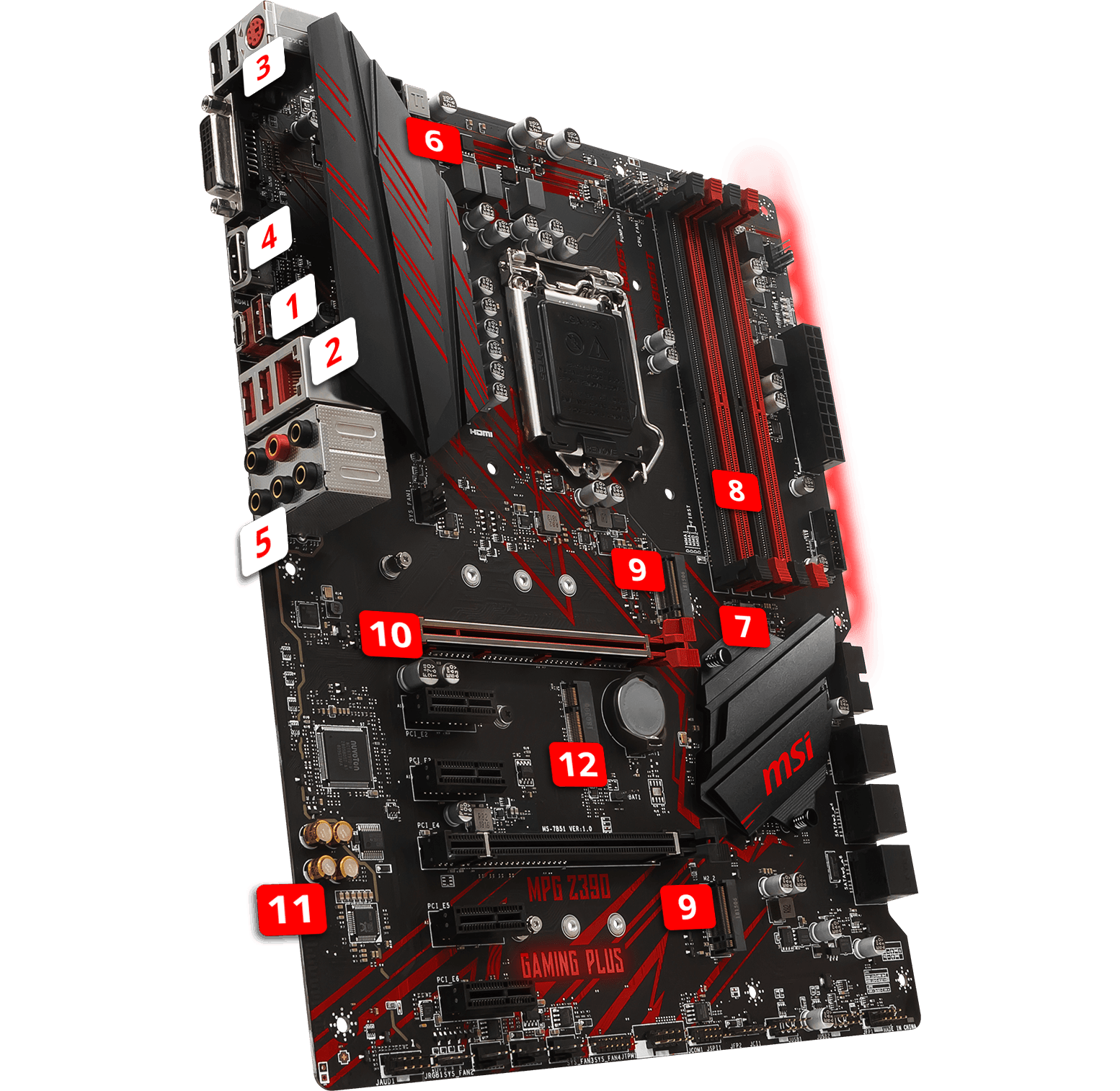

Features on the Z390 Gaming Plus

Z390 Gaming Plus features

1 Intel Turbo USB 3.1 Gen2  2 Intel LAN  3 Keyboard / Mouse  4 HDMI  5 Golden audio jacks  
6 Extended Heatsink Design - Leading heatsink design, extended for maximum cooling and performance
7 Gaming heatsinks with Passion Red scheme - for maximum cooling and performance
8 DDR4 Boost - Optimized traces and isolated memory circuitry
9 Twin Turbo M.2 - NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, ready for Intel ® Optane™ memory
10 PCI-E Steel Armor - Protecting VGA cards against bending and EMI
11 Audio Boost with amplifier - Optimized gaming audio using best components
12 Intel CNVi Ready - Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2

Experience Core Boost

Z390 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI Z390 motherboards are optimized to maximize the performance on the 9th Gen Intel ® Core™ processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

4K UltraHD with Multi GPU

MSI Multi GPU

Get More Performance Gaming enthusiasts are always looking for more performance to get the ultimate experience. Using multiple graphics cards is a great way to find out just how good it gets. MSI Gaming motherboards fully support multi GPU technologies and have optimal PCI-E slot placement for the best thermal performance. Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.

Experience Gaming Hotkey

m.2

TOTAL FREEDOM, MAXIMUM EASE Gaming hotkey lets you simply assign functions to any key whether to launch your favorite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! Easily program your most-used commands and execute them with a single keystroke. You’re free to choose any key you want, so choose wisely. Launch your favorite games with a single button

Overclock Your System in One Second!

m.2

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Ultrafast M.2 Connectivity

m.2

Speed up with onboard M.2 up to 32Gbps Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection.

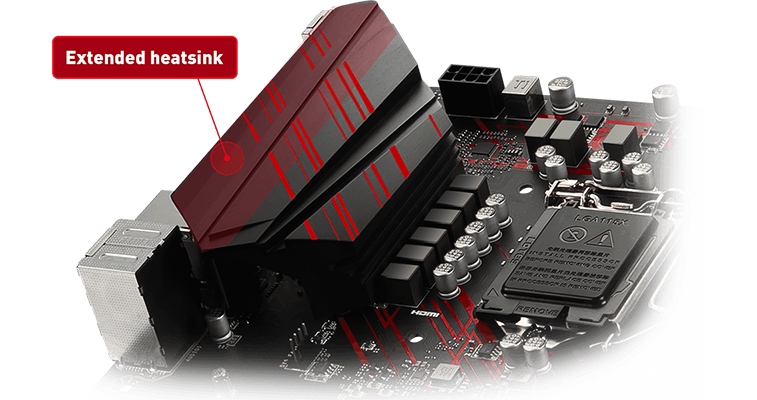

Extended Heatsink for Lower Temperatures

MSI Z370 Gaming Plus Heatsink

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE Having more cores in a processor means the thermal and power design is essential to make sure the temperature stays as low as possible. MSI extended PWM and enhanced circuit design ensures even high-end i7 CPU to run in full speed with MSI motherboards.

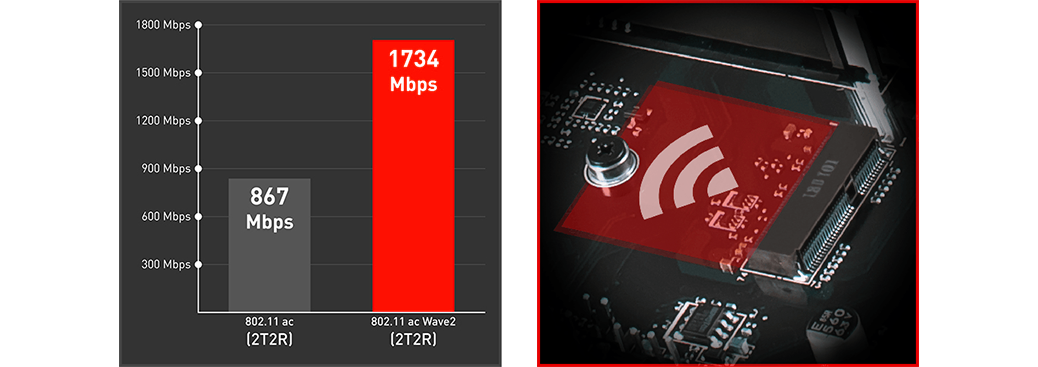

Intel CNVi Ready

Z390 Gaming Plus CNVi

Architecture for wireless connectivityCNVi allows you to experience faster wireless network connection! Integrated Intel ® Wireless-AC (CNVi) Wi-Fi supports IEEE 802.11 AC Wave2, providing a high speed up to 1.73Gbps. Breaking the barrier with Intel CNVi WiFi while playing games and watching videos. This means no more loading while playing games online.

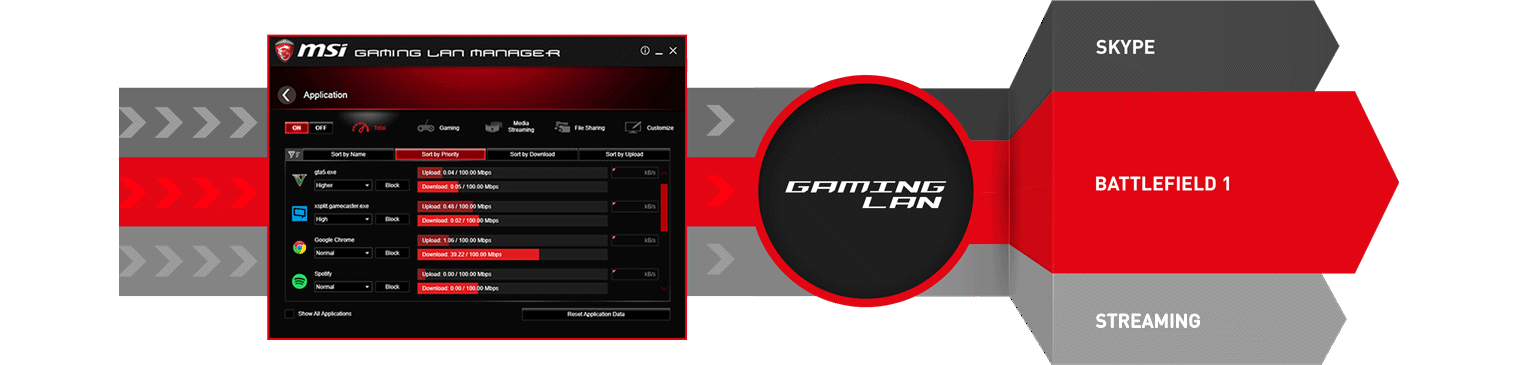

Low Latency Intel Lan

Z390 Gaming plus Lan

INTELLIGENT NETWORKINGThis model comes equipped with a premium network solution from Intel®. Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Immerse Yourself into Virtual Worlds

VR

Complete your Immersion From the start of Virtual Reality, MSI has been deeply involved in making VR Ready hardware in each of its product lines. MSI are known to integrate the very best of cutting edge technologies onto the hardware which provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through extensive research with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Maximize Your USB Device Performance

usb

lightning-fast transfer speeds! Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

Specifications
Core Specifications
Edition MPG Z390 GAMING PLUS
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 4400(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Socket 1 for Intel CNVi Wireless Module ONLY
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 6 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Note Refer to manual for M.2 SATA configuration support.
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
