Scan code: LN119647 Manufacturer code: MPG X570S EDGE MAX WIFI

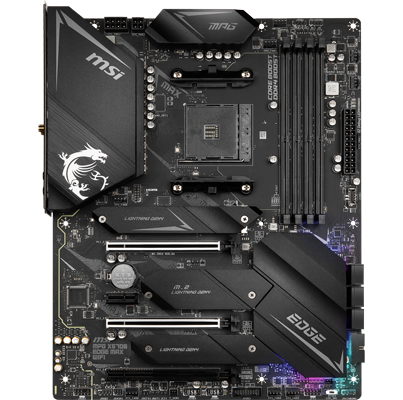

MSI MPG EDGE MAX WIFI X570S AM4 PCIe 4.0 ATX Motherboard

MSI MPG X570S EDGE MAX WIFI, AMD X570,S AM4, DDR4, PCIe 4.0, SATA3, 3x M.2, CrossFire, 2.5GbE, ax/BT5.2, ATX

MORE INFO
MORE INFO
Thumbnail 1 : MSI MPG EDGE MAX WIFI X570S AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : MSI MPG EDGE MAX WIFI X570S AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : MSI MPG EDGE MAX WIFI X570S AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : MSI MPG EDGE MAX WIFI X570S AM4 PCIe 4.0 ATX Motherboard
Scan code: LN119647 Manufacturer code: MPG X570S EDGE MAX WIFI
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Was: £259.99
£229.98
Add To Basket
Get it Tomorrow, 28 MayIn stock
From £10.17 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £19.77
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £229.98
Total inc. interest: £237.19
Monthly Payment: £10.17
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £229.98
Total inc. interest: £243.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI X570S EDGE MAX WIFI 3rd Gen Ryzen ATX MPG Series Motherboard

MSI X570S Edge Max

A step into the Future Take a step into the future with The MSI X570S EDGE MAX Wifi, here to support the very latest AMD Ryzen processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2 technologies, Type-C connectivity, DDR4 Memory boosts, a premium thermal design including aluminium cover, VRM heatpipes and MOSFET baseplate Plus onboard M.2 Shield Frozr and incredible Wi-Fi 6e technology. The MSI X570S motherboards have what it takes to push the boundaries of performance into unknown territories, so buckle up and get ready for the ride of your life.

AMD X570SChipset

AM4CPU Socket

3rd Gen AMD Ryzen™ ReadyCompatible Processors

ATXForm Factor

.

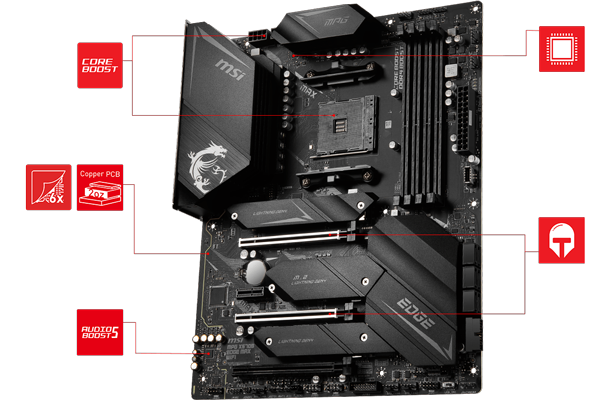

Special Features of the X570S EDGE MAX WIFI

Main Features
Core Boost

Core Boost TechnologyMSI's premium layout design, is ready to unleash maximum performance.

Digital PWM

Digital PWMAn aggressive digital VRM power design with digital PWM IC and 14 Duet Rail CPU Power System with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions

Core Boost

6 layer PCB6 layer PCB provides higher performance and long-lasting system stability without any compromise.

Steel PCIE Slots

PCIe Steel ArmorProtecting VGA cards against bending and electromagnetic interference for better performance, stability and longevity.

2oz Copper PCB

2oz Thickened Copper PCBAn enhanced PCB design improves heat dissipation and performance reliability.

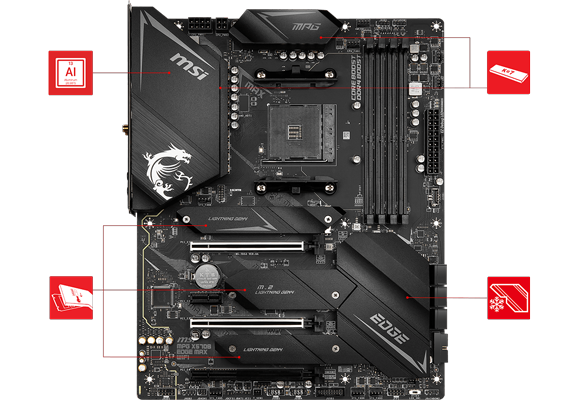

Premium Thermal Solution

Temperature Features
Premium Thermal Design

Aluminium CoverAll-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors can run at full speed.

m.2 Shield

7W/mk Thermal Pads7W/mK MOSFET thermal pad and extra choke thermal pads provide better heat transfer to the heatsink.

m.2 Shield

Silent CoolingEnlarged chipset heatsink with fanless heatsink design prevents dust and noise as well as maintaining high heat dissipation efficiency.

m.2 Shield

M.2 Shield FrozrUpdated built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, Allowing them to run faster.

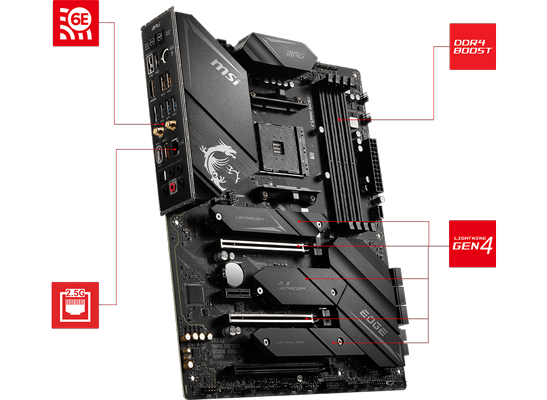

Next Generation Connectivity

Networking Features
Turbo USB

Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

DDR4 Boost

DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

PCIe 4.0

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

2.5g LAN

2.5G plus Gigabit LANFeaturing 2.5G, Gigabit LAN with LAN manager delivers better network experience.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

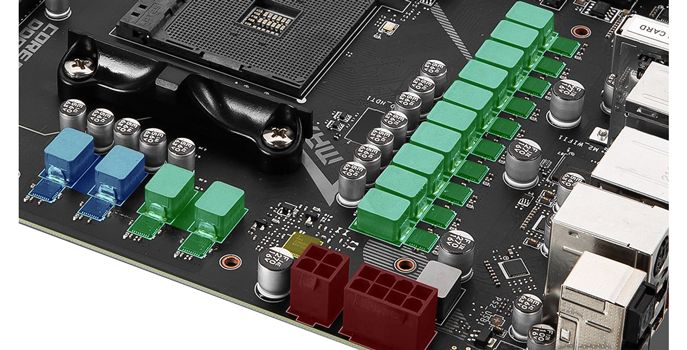

Aggressive Power Design

4K Recording

8+4 PinCPU Power Connectors

12 PhaseDuet Rail CPU Power System

2 PhasesSOC Power

Digital PWM IC

14 + 2 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 Duet Rail Power System(DRPS). Combining 8+4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.

Experience Core Boost

b550 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.

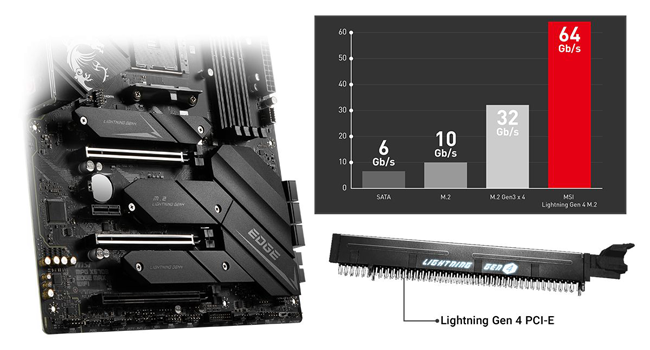

Give yourself a Lightning Fast Experience

4K Recording

LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Fast and Future Ready Storage

4K Recording

Triple M.2The MSI X570S Edge Max features triple onboard M.2 connectors for maximum storage performance. The Industry leading design maximises bandwidth to fully utilise high-end storage devices, providing multiple configurations for demanding gamers and power users.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds when compared to other brands. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what and with optimised memory traces you don't need to worry about your system crashing under load!

Protecting your PCIe Slots

B550 PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MPG X570S EDGE MAX WIFI supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Incredible Connectivity

4K Recording

WI-FI 6E & BLUETOOTHUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

Professional Gaming Audio

audio

Amplify your game with Audio Boost Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

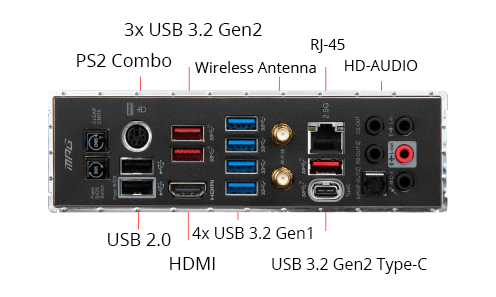

Connections at your Fingertips

X570S I/O
Specifications
Core Specifications
Edition MAG X570S EDGE MAX WIFI
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3066
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4733(OC)
  • DDR4 - 5100(OC)
  • DDR4 - 5300(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 2-pin Thermal Sensor Header
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 6 x System Fan header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2
  • 1 x Realtek RTL8111H (Gigabit LAN)
  • 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN119647
Model Number MPG X570S EDGE MAX WIFI
GTIN 4719072872182
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
