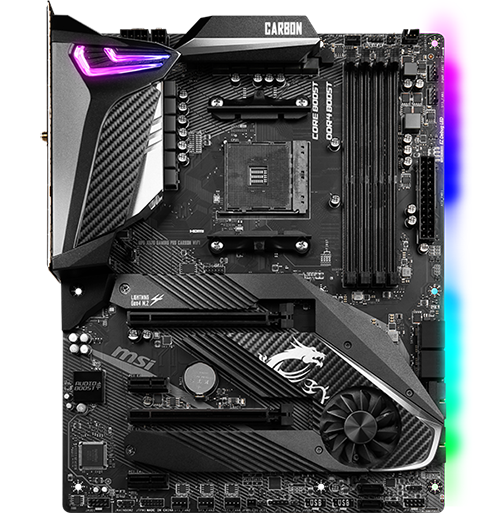

MSI AMD Ryzen MPG X570 GAMING PRO CARBON WIFI AM4 PCIe 4.0 ATX Motherboard

MSI MPG X570 GAMING PRO CARBON WIFI, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, GbE/WiFi, USB 3.2, ATX

Thumbnail 1 : MSI AMD Ryzen MPG X570 GAMING PRO CARBON WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen MPG X570 GAMING PRO CARBON WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen MPG X570 GAMING PRO CARBON WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen MPG X570 GAMING PRO CARBON WIFI AM4 PCIe 4.0 ATX Motherboard MSI AMD Ryzen MPG X570 GAMING PRO CARBON WIFI AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1 MSI AMD Ryzen MPG X570 GAMING PRO CARBON WIFI AM4 PCIe 4.0 ATX Motherboard : video thumbnail 2
Scan code: LN99488 Manufacturer code: X570 GAMING PRO CARBON WIFI
£259.99
From £12.48 / month (APR 14.9%)
Monthly Payment: £45.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £270.69
Monthly Payment: £23.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £280.09
Monthly Payment: £16.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £289.67
Monthly Payment: £12.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £299.50
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

MSI MPG X570 Pro Carbon Wi-Fi - AMD X570 Motherboard with PCIe 4.0

MSI X570 Pro Carbon Wi-fi

perfect balance between appearance and performance with Extended Heatsink DesignThe X570 Pro Carbon WIFI by MSI is inspired by the curve and shape of supercars, offers colourful customization with MSI Mystic Light RGB and Ambient Link. The Frozr heatsink is designed with the patented fan and double ball bearings to enhance performance. PCIe 4.0 in conjunction with lightning Gen4 M.2 with shield Frozr provide a lightning fast gaming experience. Mystic light extension supports both RGB and Rainbow LED strips for you to experience 16.8 million colours / 29 effects controlled in one click. Wi-Fi 6 adopts latest technologies delivering ever faster transmission speeds.

Please note: Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 socket

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

Generation 4 Solution with M.2 Shield FROZR

MSI X570 Pro Carbon Wi-fi

faster data transfer for M.2 devicesThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield FROZR is the next generation M.2 Thermal solution avoiding this by offering the best thermal protection to make sure the SSD maintains maximum performance.

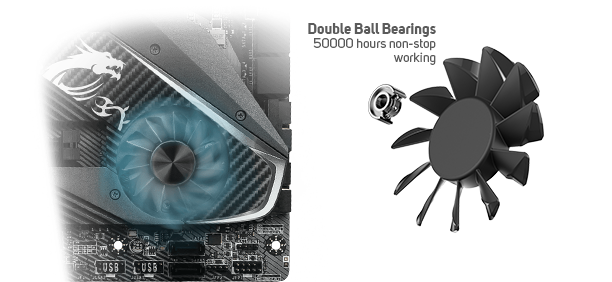

FROZR Heatsink Design

x570 Pro Carbon wifi core boost

PATENTED DESIGN PROVIDES BETTER AIRFLOWHigher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers. The MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU'S to run in full speed with MSI motherboards ensuring you get the best out of your system.

Personalize Your Gaming Rig with Mystic Light

Mystic Light x570

MILLIONS OF MARVELOUS COLORS, GREAT SELECTION OF EFFECTSPersonalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device. With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.

Experience Core Boost

x570 Pro Carbon core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.MSI X570 motherboards are optimized to maximize the performance on the AMD® Ryzen™ 3000 series processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Perform Tasks Instantly with Gaming Hotkey

MSI Gaming Hotkey

TOTAL FREEDOM, MAXIMUM EASE Gaming hotkey lets you simply assign functions to any key whether to launch your favorite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! Easily program your most-used commands and execute them with a single keystroke. You can choose any key you want, so choose wisely. Launch your favorite games with a single button.

Overclock Your System in One Second!

MSI x570 Gameboost

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Extra Power for Extreme Overclocking

8+4 Power Design

PUSH Y0UR SYSTEM TO THE LIMITS 8+4 pin connectors delivering adequate power supply for multi-core CPU, unleash the ultimate performance with the most reliable motherboard for best gaming experience and extreme overclocking.

The Next Generation of Wi-Fi

wifi6

Faster transmission speeds with wifi 6 Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.

Amplify your Game with Audio Boost 4

audio

powered by Nahimic Like a dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Immerse Yourself into Virtual Worlds

VR

Complete your Immersion Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.

Server Grade Quality for your Motherboard

Server Grade PCB

Server grade PCB offers up to three times heat resistance To fully support the latest PCI-E Gen 4 solution which features twice the transfer speed and bandwidth, MSI X570 motherboards adopt server grade PCB that provide reliable and long-lasting system performance for the lengthiest of gaming sessions, prevents PCB bending by stronger construction for the system foundation and reduces up to 30% signal loss for the better performance.

A New Way to Control your Cooling

rgbstrip

BOOST mode

phone

Balance mode

rgbstrip

Silence mode

MSI FROZR Heatsink design combines the power of MSI’s exclusive ZERO FROZR and AI tuning technology to auto-adjust fan speed according to the chipset’s temperature. You can also select from one of three modes (Boost / Balance / Silent) mode with your according to your preferences via Dragon center or MSI UEFI BIOS and enjoy the best performance without compromise.

Features of the X570 Pro Carbon Wi-Fi

rgbstrip

Core Boost TechnologyCombining 8+4 pin power connectors and premium layout design, ready for unleashing the maximum performance.

phone

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

rgbstrip

Server-grade PCBServer-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.

phone

IR Digital PWMHighest quality component IR digital power makes sure your system runs smoothly under the most extreme conditions.

phone

Zero Frozr TechnologyAI tuning system that auto-adjust fan speed by chipset temperature and eliminates fan noise by stopping the fans.

rgbstrip

Frozr DesignDesigned with a patented fan and double ball bearings to provide the best performance for you.

phone

AMD Turbo USBFeaturing the TURBO USB 3.2 GEN2, with reversible Type-C connector.

rgbstrip

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

phone

Lightning Gen4The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

rgbstrip

PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications
Core Specifications
Edition MPG X570 GAMING PRO CARBON WIFI
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 2-pin LED Demo Connect
  • 1 x 24-pin (Power)
  • 1 x 3-pin CORSAIR connector
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Flash BIOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 304 x 243 mm
Note
Additional Information
Scan Code LN99488
Model Number X570 GAMING PRO CARBON WIFI
GTIN 4719072652470
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Loading Please Wait

Please wait . . .

Reviews
MSI MPG X570 GAMING PRO CARBON WIFI, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, GbE/WiFi, USB 3.2, ATX is rated 5.0 out of 5 by 9.
Rated 5 out of 5 by from The saviour of all upgrades MSI Saved my build! After going through multiple motherboards MSI came out as the king! The unlimited ram compatibility made sure my Corsair RGB DDR4 sticks worked and over preformed them! Reaching my XMP of 3200mhz without a hitch! Furthermore the mobo boosted my clock speed to the max 4.2GHZ using their easy to use utility Dragon Software. Installation was easy and safe and keeps my m.2 boot drive always cool! Wifi is blazing fast as a steal to be bundled in with the board! Fan headers could be improved a bit in terms of position to the right side of the board as well as put all of the SATA ports together. Also ashamed there's no front USB-C ports... Overall a fantastic board for any RYZEN 3rd Gen User!
Date published: 2019-08-23
Rated 5 out of 5 by from The price to performance King Summary; I WOULD buy this again if i was building a pc. WHY! I bought this motherboard over the x570 godlike due to its price and well... it just did everything i could ask for. This is the 2500k motherboard equivelant of today, the x570 price to performance king, and it works out of the box with the AMD 300 series of cpu's so easily beats the 3-4 series boards on ease of use. Whats Included! Inside the very nicely printed box is as follows; The driver CD (who even uses these anymore? a nice cheap MSI branded USB wouldnt have gona a miss as it wouldnt even have to be large memory wise) , an MSI sticker ( not the nice metalic looking ones of old but still not bad) , very sleek Wi-Fi antenna, SATA cables ( 1x straight 1x angled), M.2 screws (silver on a black motherboard? but cant be seen anyway), Corsair RGB cable, RGB Y cable, Rainbow RGB cable, twelve SATA cable sticky labels, . Bios! The bios from msi is very simple to use Lots of fan profiling features and XMP was VERY easy to setup, basicaly one click which for people who arent familiar with pcs is very handy. General layout! Really well built motherboard great design and clean aesthetics, i built my system inside a corsair icue 220t and pretty much all my cables are hidden due to the case and the Power delivery and VRMs on this mobo are very good, and the heat spreaders and thermal pads for the m.2 exc is very nice feature theres 2 PCIE 4.0 M.2 slots, and both have said heat sinks, the included twin frozr fan built onto the board is silent aswell no hight pitched whiny noises and it even sits idle in the bios, the inclusion of the EZ debug section of the motherboard was very handy during setup also. Wireless! The included wireless is fantastic (wifi 6), I even use this over the ethernet at the moment (even though thats fantastic aswell as its intel Gigabit Lan so great driver support) and the fastest bluetooth ive ever seen (bluetooth 5.0) The Audio! Heres a quote from MSI; "A dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy." Now thats the usual gamer speak but let me tell you, i do alot of audio produciton and most of the time use my Focusrite or Behringer umc22 audio interfaces and to tell you the truth the sound card is absolutely FANTASTIC this is the one area i feel i can share my experience and to put it simply ive not seen audio done this well on a motherboard before this really is a big well done from me MSI. The RGB! The Rgb has a strip down the side thats a bit harder to see when your RGB case fans are on and theres a very nicely thought out rgb light near the rear IO, this synced very easily to the dragon centre software and now i have all my fans ram cpu cooler and motherboard running in tandom which lets face it is very nice to have as it saves hassle.
Date published: 2019-08-16
Rated 5 out of 5 by from This is the best X570 motherboard in it's price range I started my initial venture into Ryzen with an X470 motherboard which unfortunately died within 2 months of use. After the unveiling of the X570 lineup, I decided to purchase an X570 over a new X470 motherboard. The prices of the X570 motherboards are understandably higher than their X470 predecessors but for PCIE 4.0 and PBO2 and XFR2, I believe it's worth the premium. I was turned off the brand which had failed me last time and was stuck between two brands; of which had relatively identical specs. In the end I chose the MSI X570 Pro Carbon WiFi over the other competitor because of aesthetics, the carbon fibre accenting and sleek VRM heat sinks really looks incredibly appealing. Upon receiving the product, it was bundled with atypical motherboard accessories, SATA cables, M.2 screws, a driver disk (which would be better as a USB drive) and a MSI stickers etc. A nice detail I noticed was the black SATA cables which matched the black aesthetic of the motherboard greatly, the consistency and attention to detail is quite impressive, the inclusion of the EZ debug LED was also very nice. This motherboard is undoubtedly the easiest installation of any motherboard I have ever fitted prior. The lack of a proprietary IO shield makes seating the motherboard flush with the rear IO area of my case ridiculously easy and was always a pain with previous motherboard installations. Upon powering my motherboard on everything was detected instantly and my 3200mhz Corsair RAM ran flawlessly on it's A-XMP 2 profile. MSI and other competitors have a stigma around bad BIOSes but it pleases me to say that MSI really created a great BIOS, everything was quite easy to navigate to and easy to modify, one feature I would like added is a SPD Write option under RAM settings but that is a rather small nitpick. Overall, if you are considering a motherboard in this price range, I would say it would be rather a foolish endeavour to purchase anything other than this product.
Date published: 2019-08-10
Rated 5 out of 5 by from Best value mid-tier x570 board Very happy with my purchase. I needed an AMD board after deciding to purchase a Ryzen 3700x CPU. After a lot of research I decided on this board and have not been disappointed. What's in the box? The details on the website listing are a bit sparse in this regard, but apart from the motherboard itself you also get: Full manual, Quick start guide, DVD with BIOS drivers/utilities, WiFi antenna, 2 x M.2 screws (always handy), 2 x SATA cables (1x straight, 1x angled), RGB cables, decorative MSI case sticker and some useful cable stickers to allow for easy labelling/cable management. I always think including a CMOS jumper is a nice touch (missing here), but a screwdriver works just as well if needed. Installation was very easy; the manual is user-friendly if you need it, but the board is well laid out and everything is marked for easy identification. The board looks good and you can easily turn off the RGB in the BIOS menu if it's not your thing. Pros: - 2 x PCIE 4.0 M.2 slots, each with heatshield & heatsink including fan - WiFi 6 - Intel Gigabit Lan - ALC1220 audio - High quality VRMs - BIOS user-interface is really intuitive and feature packed for the novice (e.g., preset memory overclocks & 'Game boost' for CPU) whilst having all the options an experienced OCer needs - Plenty USB 3.x ports front and rear - BIOS flashback functionality - just plug a USB in the back panel, push a button and away it goes. Cons: - No Clear CMOS button on the rear I/O panel - No fan header around the rear I/O panel area; meaning if you have a typical exhaust fan placement then you need to run the cable down to the bottom of the board, not a huge issue but not ideal - Not a con as such, but be mindful if you have a M.2 SATA SSD that only the bottom M.2 slot supports this, the top M.2 slot does not Prior to purchase I was a bit concerned about the x570 boards coming with chipset fans, but I can honestly say that noise has not been an issue - you're not going to hear the fan so just don't factor it in to your buying equations. Temperatures haven't been a problem either and my case is kept in a 'sub-optimal' location. This seems a good board for OC and MSI VRMs have a good reputation. I've easily been able to get my Crucial 3000mhz DDR4 CL15 running at 3600mhz CL14 which plays very nicely with Ryzen 2nd gen and the corresponding boost to Infinity Fabric frequency. All in all, if you want an x570 board I think this is the sweet-spot in terms of price/performance; if you go any cheaper then you compromise with some/all of the following: Realtek LAN, not enough USB/SATA ports, no/worse Wifi, lower quality audio codecs and/or VRMs etc. Any more expensive and I think you begin paying for features that are rarely needed or where the specs are overkill for the requirements. Would buy again
Date published: 2019-08-06
Rated 5 out of 5 by from One of the X570 boards for it's money I paired it with a 3700X and since I believe that no motherboard should cost more than the CPU you are buying, this was the ONLY choice for me alongside a few other factors. I like it's monochromatic looks (RGB aside), because I would like to be able to make my computer glow with any color I want without any pre-painted colors to ruin the color scheme. Some other motherboards have painted stripes or shapes on them with set colors which is counter intuitive bearing in mind they also sport RGB. Another thing that I really like about this motherboard is that the chipset fan turns off when it's not needed which makes my PC even quieter. Not that it makes a lot of noise anyway. The VRM temperatures are in check and even when stress testing it doesn't break a sweat. The UEFI is one of the good ones out there and coming from a Gigabyte X370 board the step up is very noticeable, both in build quality and usability.
Date published: 2019-08-06
Rated 5 out of 5 by from Great choice for a long term future proof build Delivery was on time with DPD. Got emails of each delivery process step. Installation: Built-in IO shield made it so much easier compared to previous builds of putting it in manually especially if you are forgetful. Screw Holes were in decent positions for me to screw into my case however the one in the middle had a bit of trouble due to M.2 heatsink blocking so small screwdriver may be recommended for this bit. Everything is labelled on the motherboard and the instructions are very clear for where to connect the cables. Probably PC case fault but I can't get to the first 2 SATA ports and USB 3.2 internal connectors on the side because of the side edge inside my case poking out. This means I can't connect my USB 3.0 internal cable connector and I can only use 4 SATA ports but I'm ok with this since my case is old which will be upgraded and I don't need them. CPU installation bracket was already installed so made it really easy for me to install Wraith Prism Cooler which only requires to clip in. Though you should always be careful to not push down on the CPU. The layout of the ports was designed perfectly even with my old PC case Cooler Master N300. My cable management is able to go around the outside of the motherboard. I haven't installed any M.2 NVMe SSDs yet but it's nice to have 2 gen 4 slots ready since my case only has one SSD slot XD Also it comes with heatsinks so that future gen4 m.2 ssds I am going to buy will be cheaper since I can then get the ones without heatsinks. Weirdly what I noticed was the the second graphics card slot has rusted. This is ok for me since I only use one graphics card currently but potentially I see myself using 2 for monitor compatibilities and streaming reasons so this was a shame to see. Obviously I assume it should still function properly. Performance: Currently using Ryzen 3700X and Corsair 3200Mhz 2x8GB RAM. In terms of performance fans are pretty quiet enough for me. I have the MSI dragon center installed which allowed me to tune the fans with just one click and in a few minutes it automatically adjusted the smart fan speeds. Easy to know when to open up the BIOS and navigation of overclocking my RAM to 3200MHZ was easy. Mouse is very slow though on the BIOS but I don't mind. Gaming and streaming has been great using the x264 option in OBS where my CPU usage would be less than 50% and CPU temp peaking to 80°C and motherboard peaking 45°C ish. It's been 3 weeks and I have had no problems. Details about my choice: In terms of brand I didn't really want to spend my time looking at every single motherboard so I focused on a brand lineup and MSI attracted me with their availability in stock, clear tiers in pricing, features and their promotional period of a free liquid cooler when registering your product. Other motherboards I could have went with my budget is: MSI X570 GAMING PLUS, X570 A PRO and MPG X570 GAMING EDGE WIFI. My final decision was based on Edge vs Carbon so I paid £50 more because of these reasons: These ones have 2 M.2 NVMe SSD slots but only one supports gen 4 where as Carbon supports this in 2 of them. They don't have Wifi 6 or some with no wifi at all. I wanted Bluetooth 5.0 where as gaming edge provides only 4.2. Carbon comes with 2 m.2 heatsinks but these don't or with just one. Next choice for me was MEG X570 ACE but this is £100 more than the carbon and I don't need 3 M.2 and video card slots. However the 2.5G LAN was tempting.
Date published: 2019-08-04
Rated 5 out of 5 by from Great job MSI This motherboard is perfect to combine with a Ryzen 3000 CPU, in my case a Ryzen 3700x. The choice of a motherboard can be confusing as there is so much choice, but after much research I decided for the Gaming Pro Carbon, as also owner of a 2080 MSI gaming trio on which I found myself very well. Everything worked out of the box. Installation instructions were clear and simple. The motherboard is solid and strong to the touch. The chipset fan is very quiet and the chipset temperatures are low due to the heat and layout design. The heat and the MSI Frozr fan are very favorably compared to brands.  The BIOS has many pre-programmed memory ranges if you want to try overclocking. It's great if you're not an overclocking expert. The memory results will obviously differ depending on the sticks chosen. The new Dragon Center software is one of the best bundled software packages I've used. It contains all the programs that control the functionality of the motherboard (LEDs, fans, updates, Wifi, performance monitors, network monitors and tools). All of these are in one place, rather than having to install 5 different programs The card also had a complete feature set that corresponds to some more expensive cards. Wifi, Bluetooth, high power VRM, metal heatsync for chipset and NVMe units, error LEDs, a large number of ports and connectors. I am really satisfied with this motherboard, so much so that I got other friends to take a Gaming Plus and an Ace
Date published: 2019-07-26
Rated 5 out of 5 by from Super happy with this motherboard! I purchased this to go together with the newly released Ryzen 3000 CPU series. I currently have a 3900X, although I am considering getting a 3950X later down the line once that releases. I did a lot of research on motherboards prior to this purchase, looking at B450, X470, and X570 boards. Obviously, I decided on this product after all of that research. In this review, I'll go over my experience with this board. Packaging and Installation: The motherboard arrived in a beautiful and high quality box, with a colourful design on the front and all the specification details on the back. Inside, the motherboard is safe and sound inside an anti-static bag, and below that you'll find all the bundled goodies. You get a manual, info leaflets, driver CD, Wi-Fi antenna, SATA cable (straight), SATA cable (angled), two M.2 screws, Corsair RGB cable, RGB Y cable, Rainbow RGB cable, twelve SATA cable sticky labels, and a beautiful MSI logo sticker. Installation was a breeze in my Fractal Design Meshify C case. I didn't encounter any problems with setup. The only complaint I have is that the mouse cursor seems somewhat laggy in the BIOS, but there's a very minor niggle! Features: This motherboard is jam-packed with features, and should have more than enough to satisfy most enthusiasts. As far as core components go, the board uses a server-grade PCB, performant VRMs with 10+2 phases, and an isolated DDR memory circuit. It includes PCIe 4 support, Intel LAN, Wi-Fi 6, a great audio chip, four PCIe slots, six SATA ports, two M.2 slots with heatsinks, several USB ports, and more. Aside from all of the above features, there are two key reasons why I selected this board, instead of buying a competing brand. Those key features are memory overclocking and the chipset fan, which I'll detail below. Memory overclocking: MSI is known for having one of (if not the) best memory overclocking support. Even Buildzoid, the hardcore overclocker, is quoted as saying "I'd say their daisy chains are really really good". High praise! Given how the Zen architecture is sensitive to memory speed, and AMD has officially said that DDR4-3600 CL16 is the recommended price/performance config, I really wanted a board with good memory support. I was not disappointed: MSI delivers this. I'm able to easily run my Ballistix RAM at 3600 CL16, and expect I could push it much further! Chipset fan: As you may or may not know, the X570 platform heralds the return of the chipset fan, a little fan on the motherboard that provides active cooling. This appears to be a requirement of X570, due to increased power and heat. All the X570 motherboards have these chipset fans, and there are various concerns with this: extra noise, ventilation issues, and a risk of mechanical failure. MSI's boards appear to have better chipset fans than competing products, as they utilise MSI's patented Frozr design from their graphics cards. This should help with noise and reliability. Additionally, competing products have the chipset fan directly next to the graphics card slot, which means that hot air expelled from there will go straight into the chipset - there are even reports of competing motherboards overheating as a result! MSI's boards have the chipset fan placed much further down, which avoids this issue entirely. I can say I don't have any problem with temperatures or noise - in fact, the fan stays off most of the time as it only spins up when needed! Aesthetics: This board is absolutely gorgeous, and I'll admit, that was a factor in my decision to get it. MSI's X570 line-up is interesting, in that all of their boards look good but have different styles to appeal to different tastes. For example, the X570-A-PRO has a professional look with classy silver stripes, while the X570 Godlike has heavy RGB lighting to appeal to people who something more flashy. This motherboard, the X570 Gaming Pro Carbon, has a little bit of RGB lighting, but not so much that it overwhelms. The heatsinks look very elegant with their dark grey colour, carbon texture, and angular lines, making them both functional and attractive. This is obviously very subjective, but for me personally, this is one of the most beautiful motherboards I've ever owned! Cost: At £260, this motherboard represents exceptional value for the X570 platform. It is a bit pricey compared to past motherboards, but the X570 boards are simply more expensive across all brands. For reference, the lowest-end X570 boards are around £170, while the highest-end boards get up to a whopping £770! Compared to the lowest-end, this X570 Gaming Pro Carbon offers the superior Intel LAN (compared to Realtek), built-in Wi-Fi 6 support, the superior ALC1220 audio chip, additional fast USB ports, and better VRMs to drive more powerful CPUs. If you're going with a high-end CPU like the 3900X or 3950X, or especially if you hope to upgrade to new CPU generations in the future, then those better VRMs will be important. I feel like the X570 Gaming Pro Carbon strikes a good balance between price and features. Aside from the above, at the time of writing, MSI is running a promotion called "I Love Ryzen 3000", where they're giving away CPU coolers, Steam vouchers, and NVMe SSDs to buyers of these new motherboards. This obviously increases the value proposition even further, and simply makes this purchase a no-brainer! Conclusion: After spending some time with this motherboard, I'm happy to say that I'm completely satisfied with it. For the price point, MSI has delivered excellent value. I give it 5/5 stars!
Date published: 2019-07-25
