Scan code: LN108112 Manufacturer code: B550 GAMING CARBON WIFI

MSI AMD B550 MPG GAMING CARBON WIFI ATX Motherboard

MSI MPG B550 GAMING CARBON WIFI, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, 2.5GbE, ax/BT5.1, ATX

Thumbnail 1 : MSI AMD B550 MPG GAMING CARBON WIFI ATX Motherboard Thumbnail 2 : MSI AMD B550 MPG GAMING CARBON WIFI ATX Motherboard Thumbnail 3 : MSI AMD B550 MPG GAMING CARBON WIFI ATX Motherboard Thumbnail 4 : MSI AMD B550 MPG GAMING CARBON WIFI ATX Motherboard
Scan code: LN108112 Manufacturer code: B550 GAMING CARBON WIFI
£214.99
Order now and get it tomorrow, Tue 14th Jul
From £10.32 / month (APR 14.9%)
Monthly Payment: £37.31
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £214.99
Total inc. interest: £223.83
Monthly Payment: £19.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £214.99
Total inc. interest: £231.60
Monthly Payment: £13.31
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £214.99
Total inc. interest: £239.54
Monthly Payment: £10.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £214.99
Total inc. interest: £247.64
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 14th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

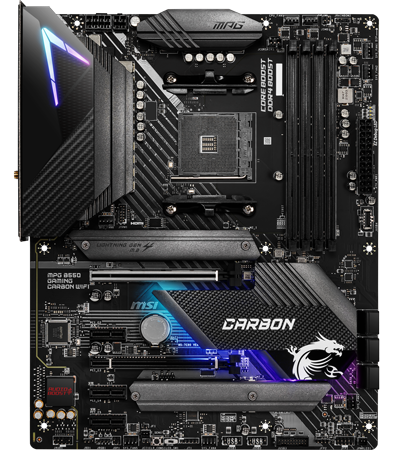

MPG B550 Gaming Carbon (Wi-Fi) 3rd Generation Ryzen ATX Motherboard from MSI

B550 Gaming Carbon

Game in Style Introducing the all new MPG B550 Gaming Carbon Motherboard from MSI. Express yourself with the latest addition to the MPG series of motherboards. The MPG B550 Gaming Carbon (Wi-Fi) supports 3rd Gen AMD Ryzen Processors and with the addition of PCIe 4.0 technology you can expect a lightning fast gaming experience plus with Wi-Fi 6 you have access to next generation networking which is up to 3x faster than it predecessor. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications and with MSI Mystic Light gain access to 16.8 million colours and 29 different LED effects, transform your equipment to be the center of attention and top competetitive leaderboards in style.

AMD B550Chipset

AM4CPU Socket

ATXForm Factor

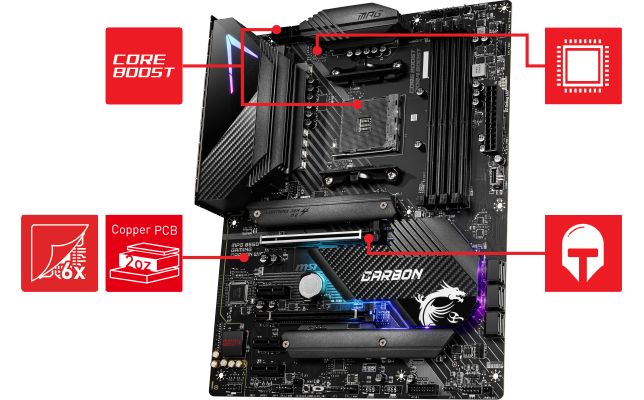

Special Features of the B550 Gaming Carbon

4K Recording
down

Core Boost
Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

up

Digital
PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

up

6 layer
PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.

up

2oz Thickened
Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

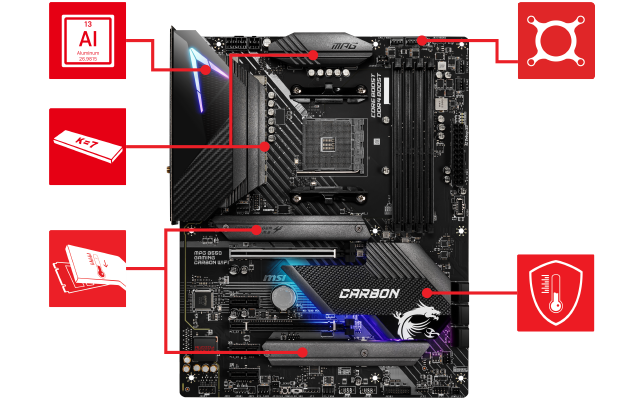

Unprecedented Thermal Dominance

4K Recording
down

Aluminum CoverAll-metal extended heatsink cover enlarges the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

up

7W/mK Choke Thermal Pad7W/mK thermal pad improves heat transfer to the heatsink.

up

M.2 Shield FrozrThe Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for better flow and noise control.

up

Enlarged Chipset HeatsinkLarger heatsink for chipset ensures better heat dissipation and cooling effects.

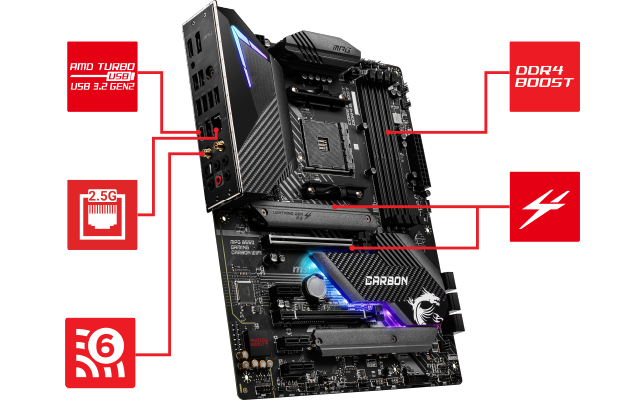

Next Generation Connectivity with MSI

4K Recording
down

Turbo USBFeaturing the TURBO USB 3.2 Gen 2, 10Gbps with reversible Type-C connector.

up

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager to deliver better network experience.

up

DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

up

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

up

Intel Wi-Fi 6The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

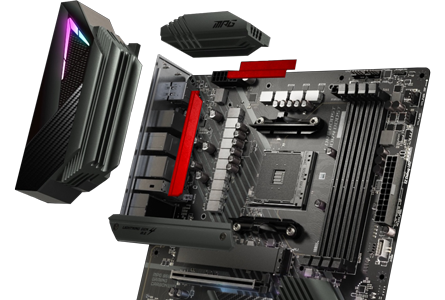

Protect your Sensitive Components During Installation and Beyond

4K Recording

Extended Heatsink and Pre-installed IO ShieldThe MSI MPG Carbon features a pre-installed I/O shield to make installing your motherboard simpler and safer and also protects your I/O ports from electrostatic discharge damage and with an all-metal extended heatsink with additional 7W/mk thermal pads to enlarge the surface area you can also expect more efficient heat dissipation allowing your 3rd generation AMD Ryzen CPU to perform as it should.

Experience Core Boost

Z390 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI B550 motherboards are optimized to maximise the performance on the 3rd Generation AMD Ryzen processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

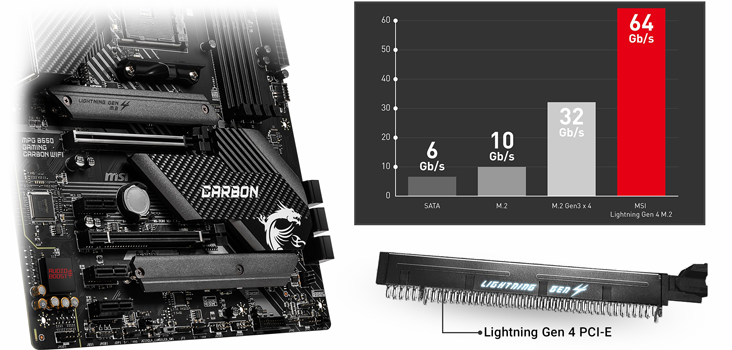

Give yourself a Lightning Fast Experience

4K Recording

LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

Z490 ACE Cooling features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MPG B550 GAMING CARBON WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

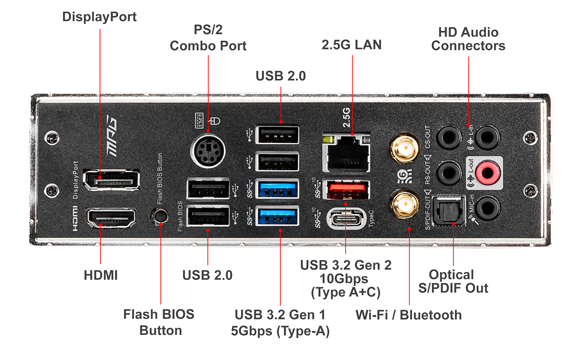

Connections at your Fingertips

IO Panel

Overclock Your System in One Second!

MSI Z390 Gameboost

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Experience Next Gen Networking

MSI Z390 Gameboost

WI-FI 6 & BLUETOOTH Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition MPG GAMING CARBON WIFI
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3066
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 6 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x CORSAIR Addressable RGB LED Strip 5V Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x Rainbow 5050 RGB LED 5V connector (JRAINBOW1)
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 1 x SMA antenna connectors
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 304 x 244 mm
Note
Additional Information
Scan Code LN108112
Model Number B550 GAMING CARBON WIFI
GTIN 4719072731892
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
MSI MPG B550 GAMING CARBON WIFI, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, 2.5GbE, ax/BT5.1, ATX is rated 5.0 out of 5 by 1.
