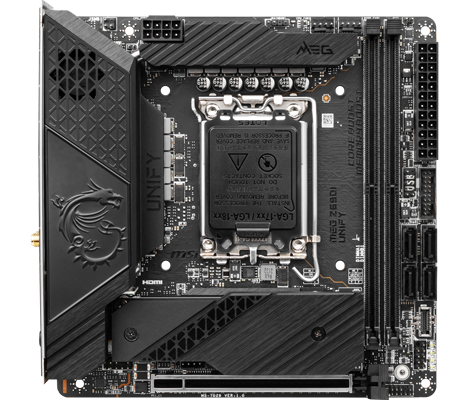

MSI MEG Z690I UNIFY DDR5 mITX Motherboard

MSI MEG Z690I UNIFY, Intel Z690, S 1700, DDR5, PCIe 5.0, SATA3, 3x M.2, 2.5GbE, ax/BT5.2, TB4, Mini-ITX

Thumbnail 1 : MSI MEG Z690I UNIFY DDR5 mITX Motherboard Thumbnail 2 : MSI MEG Z690I UNIFY DDR5 mITX Motherboard Thumbnail 3 : MSI MEG Z690I UNIFY DDR5 mITX Motherboard Thumbnail 4 : MSI MEG Z690I UNIFY DDR5 mITX Motherboard
Scan code: LN121320 Manufacturer code: MEG Z690I UNIFY
£389.99Item overdue since 22 June 2022
Pre order
From £17.24 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £33.52
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £389.99
Total inc. interest: £402.24
Monthly Payment: £17.24
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £389.99
Total inc. interest: £413.78
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £9.74 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MEG Z690I UNIFY 12th Generation Intel M-ITX Motherboard from MSI

MSI Z690

Incredible Performance In a smaller Form Take a step into the future. MSI have returned with the MEG Z690 series motherboards; here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MSI Z690I Unify is perfect for those who are looking for unparalleled performance but limited on space. The Z690I Unify is filled with premium tech and bolstered with an arsenal of top-shelf modern features like; the very latest 5th generation PCI-e solution, DDR5 memory support, huge storage options with 3x m.2 slots (2x PCIe Gen4x4, 1x PCIe Gen3x4), lightning 20G USB connectivity, Audio/Core & DDR5 Memory boosts, an outstanding thermal solution with Aluminium coverings, VRM heatpipes, premium thermal-pads and quality M.2 cooling, plus Wi-Fi 6E support delivering speeds of up to 2400 Mbps, 2.5G LAN, advanced surface mount technology and a fully comprehensive rear I/O. The Z690I Unify combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

Mini-ITXForm Factor

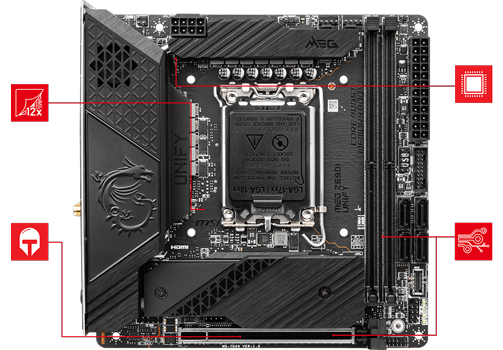

Special Features of the Z690I Unify

4K Recording

An aggressive digital VRM power design with direct digital power, 105A Smart Power Stage and titanium choke III to make sure your system runs smoothly even under the most extreme conditions.


12 layer
12 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability with no compromise.


Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.


SMT Process
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints and electromagnetic interference, delivering the clean and pure signal necessary for upper-tier performance.

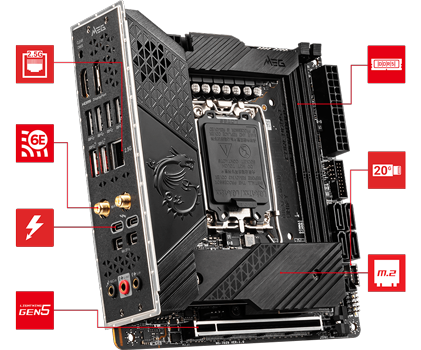

Next Generation Connectivity with MSI

4K Recording

2.5G LANOnboard 2.5G LAN with LAN manager delivers the best online experience without lag.


Front USB 20GLightning USB 3.2 Gen 2x2 port offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.


DDR5 MemoryA huge step forwards in DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.


All-New PCI-e 5.0 The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.


Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.


Triple M.2 ConnectorsOnboard 3x M.2 connectors with dual PCIe 4.0 solution, strengthened by M.2 Shield Frozr.

Premium Thermal Solution

4K Recording

Premium Thermal DesignFully aluminum IO cover and extended heatsink design help to maximise the surface of heat dissipation.


M.2 Shield Frozronboard M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.


Full aluminium backplateThe aluminium baseplate cools down your Mosfets with dedicated thermal pad.


Heat-Pipe DesignConnecting two MOS heatsinks to further enlarge the surface area of heat dissipation.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.


The Latest Technologies

4K Recording

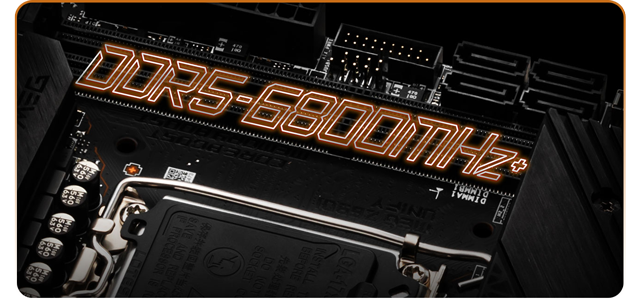

Welcome DDR5 MemoryA huge step forwards for DDR performance enhancement with the latest DDR5 memory. Combined with a dedicated SMT welding process and MSI Memory Boost technology, MEG Z690I Unify is ready to deliver world class performance.

Unmatched Memory Performance

4K Recording

The Purest Memory SignalMSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimised traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

The Next Generation

4K Recording

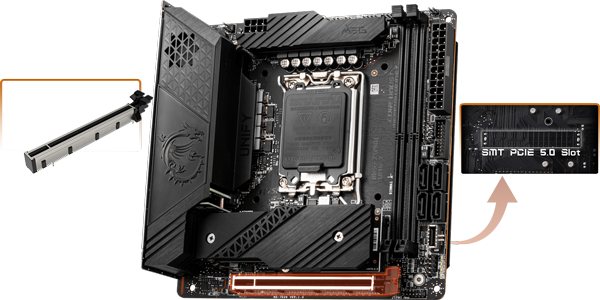

Lightning Gen 5 PCI-EMSI Lightning Gen 5 PCI-E takes the theoretical bandwidth of a x16 interface to whopping 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot reduces any interference and electrical noise, fully supporting the higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

Incredible Storage Solutions

4K Recording

QUINTUPLE M.2 WITH DOUBLE SIDE M.2 SHIELD FROZRIncredible onboard quintuple M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. whilst M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, allowing them to run faster.

Take Your Network To The Next Level

4K Recording

WI-FI 6E & BLUETOOTHUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

Amp' Up Your Audio Experience


High Quality Capacitors


Dedicated Headphone Amplifier

MSI Audio boost 5 Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by an ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.


High Quality Audio Jacks


ALC 4080 Audio Processor

Core Specifications
Edition MEG Z690I UNIFY
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 64GB (2x32GB)
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 2 x M.2, 22-42/80/110, PCIe Gen4x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 4 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TPM Header
  • 1 x USB 2.0 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel® I225V (2.5GbE LAN)
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2
Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x HDMI 2.1
  • 1 x Mic-In
  • 2 x Mini DisplayPort
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x USB 4 Type-C / PD / DP / TB4
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Additional Information
Scan Code LN121320
Model Number MEG Z690I UNIFY
GTIN 4719072886523
