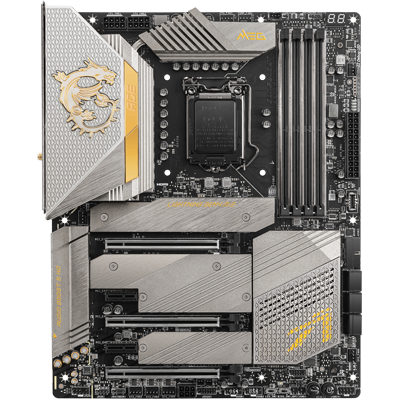

MSI Intel MEG Z590 ACE Gold Edition ATX Motherboard

MSI MEG Z590 ACE Gold Edition, Intel Z590, S 1200, DDR4, SATA3, PCIe 4.0, M.2, GbE, TB4, ATX

Thumbnail 1 : MSI Intel MEG Z590 ACE Gold Edition ATX Motherboard Thumbnail 2 : MSI Intel MEG Z590 ACE Gold Edition ATX Motherboard Thumbnail 3 : MSI Intel MEG Z590 ACE Gold Edition ATX Motherboard Thumbnail 4 : MSI Intel MEG Z590 ACE Gold Edition ATX Motherboard
Scan code: LN117847 Manufacturer code: MEG Z590 ACE GOLD EDITION
Order now and receive it by Thursday, 26th May
Was: £439.98
Get it Thursday, 26 MayIn stock
From £13.27 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £25.79
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £299.99
Total inc. interest: £309.41
Monthly Payment: £13.27
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £299.99
Total inc. interest: £318.29
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 26th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MEG Z590 ACE GOLD ED 11th Generation Intel ATX Motherboard from MSI

Z590 ACE

Your Ace in The Hole Ready to experience the future of gaming? As well as an element of prestige The MSI Z590 Ace GOLD Edition is here to support the very latest 11th Generation Intel processors; Bolstered with an arsenal of top-shelf features including; an extreme digital power design, outstanding cooling solution including an aluminium cover, VRM heatpipe, 7W/mK thermal pads, M.2 Frozr technologies and an aluminum backplate to ensure extreme performance with low temperatures, Dual TB4 ports, Quadruple M.2 connectors for maximum storage with one lightning PCIe 4.0 solution. Next generation connectivity is handled by an onboard 2.5G LAN and the latest Wi-Fi 6E support and in order to ensure maximum product longevity the motherboard itself has been fitted with an 8 layer PCB and a smart button to handle multiple forms of hardware control such as reset, safe boot, turbo fan and EZ LED control with a single click. The GOLD edition also features premium aesthetics with a platinum colour finish and genuine 24K-gold foil heatsink to perfectly redefine the concept of beauty. The MSI Z590 Ace GOLD Edition has what it takes to ensure you receive a high performance immersive gaming experience. Can you handle it?

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

ATXForm Factor

Special Features of the Z590 ACE GOLD ED

4K Recording

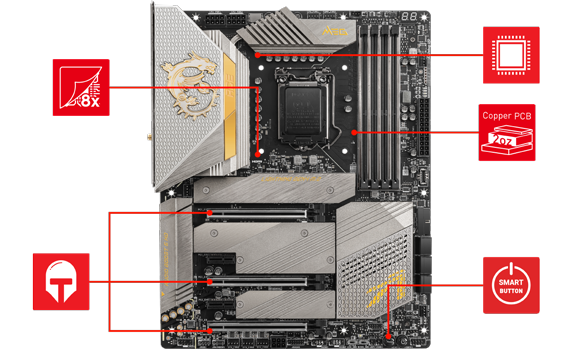

PCB Design
Multi-layer printed circuity optimises power delivery increasing system stability and thermal efficiency.


The Ace uses the highest quality components with direct digital power, 90A SPS and titanium choke III making sure your system runs smoothly even under the most extreme conditions.


2OZ Thickened
A 2oz thickened PCB provides an increase to performance and long-lasting system stability without any compromise.


Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.


A simple button that offers multiple forms of hardware control with a single click.

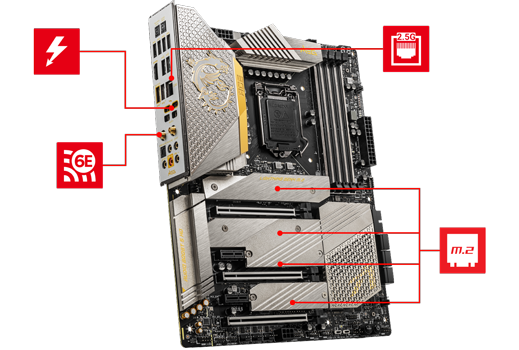

Next Generation Connectivity with MSI

4K Recording

2.5G LANGet ready to crush your enemies on the battlefield with MSI LAN Manager. Onboard 2.5G LAN delivers a supreme online experience without worrying about lag.


Dual Thunderbolt™ 4 portsBrings Thunderbolt performance to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture to bring you incredible connectivity.


Quadruple M.2 ConnectorsOnboard quadruple M.2 connectors for maximum storage performance with one Lightning Gen 4 solution.


Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

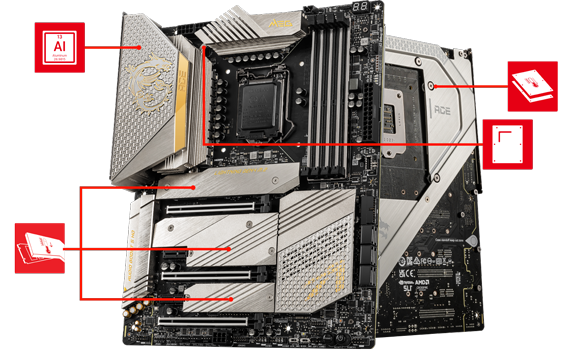

Premium Thermal Solution

4K Recording

Aluminium CoverA full coverage aluminium IO cover and extended heatsink design provide maximum surface area to ensure maximum heat dissipation efficiency.


M.2 FrozrOnboard m.2 thermal solution helps to prevent throttling keeping your M.2 SSDs safe and allowing them to run at maximum performance.


All aluminium BackplateThe heavy and durable aluminium backplate provides additional cooling to your MOSFETs with it's dedicated thermal pad.


Heatpipe DesignA heatpipe is used to connect the two MOS heatsinks to increase the overall surface of heat dissipation.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.


Unbelievable Power Solution

4K Recording

INTERSIL Digital PWM Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases. Combining dual power connectors and exclusive Mirrored Power Arrangement, MEG series motherboards are ready for the challenge of high-end processors.

See Whats Under The Cover

The Future is Now

4K Recording

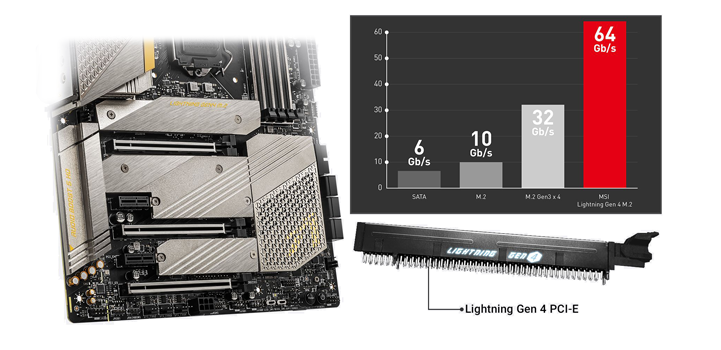

LIGHTNING GEN 4 SOLUTIONThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

Fast and Future Ready Storage


Maximum Storage SupportThe Z590 Ace GOLD Edition supports a staggering amount of onboard storage with support for the latest standards, which allows users to connect any ultra-fast storage device allowing you to access transfer speeds you only dreamed of.

Unmatched Memory Performance


Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

Z490 ACE Cooling features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MEG Z590 ACE GOLD Edition supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and higher-quality airflow. That way, you can enjoy the best graphics at the highest framerates with the action jumping from your screen when running the NVIDIA® SLI™ and AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Professional Gaming Audio


Amplify your game with Audio Boost 5 HD Like a dedicated sound card, Audio Boost 5 HD offers a premium audio processor, ESS audio DAC, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4082 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz, delivers game-changing studio grade sound.

Next Generation Connectivity

4K Recording

Wi-Fi 6e SupportUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

A Fully Comprehensive I/O

IO Panel
Core Specifications
Edition MEG Z590 ACE Gold Edition
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5333(0C)
  • DDR4 - 5600(OC)
Max. Memory Capacity 128GB
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 2 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 6-pin PCIe (Power)
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 6 x SATA III - 6Gb/s
  • 6 x System Fan header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Mini DisplayPort
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
