Scan code: LN113098 Manufacturer code: MEG B550 UNIFY

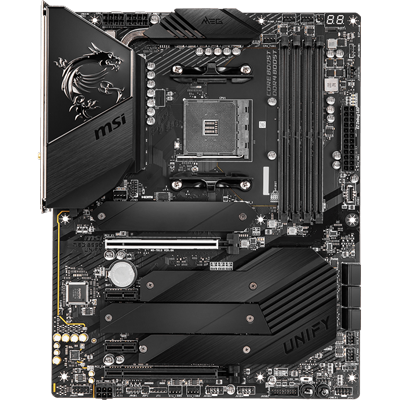

MSI AMD B550 MEG UNIFY ATX Motherboard

MSI MEG B550 UNIFY, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Quad M.2, CrossFire, 2.5GbE, USB 3.2 Gen2

Thumbnail 1 : MSI AMD B550 MEG UNIFY ATX Motherboard Thumbnail 2 : MSI AMD B550 MEG UNIFY ATX Motherboard Thumbnail 3 : MSI AMD B550 MEG UNIFY ATX Motherboard Thumbnail 4 : MSI AMD B550 MEG UNIFY ATX Motherboard
Scan code: LN113098 Manufacturer code: MEG B550 UNIFY
Was: £229.99
£179.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £16.16 / month (APR 14.9%)
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Master the Game

The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.


Premium Hardware Design

With years of experience, MSI is no stranger to building high-performance motherboards. Our R and D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

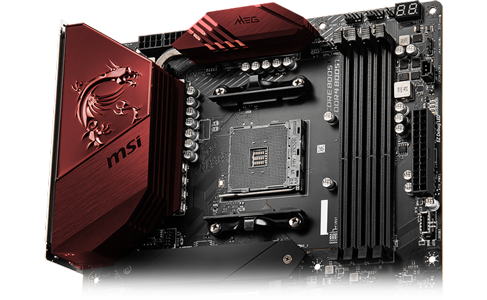

Thermal Solution for More Cores and Higher Performance

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.


Double Side M.2 Shield Frozr

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, double side M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.


Fully Controllable in BIOS and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


Optimised for Liquid Cooling

Designed to support the most popular All-In-One & customised water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.


Direct 14+2 Power Phase Design

Unleash and sustain maximum performance with an aggressive VRM design built with a total of direct 14+2 digital power phases. Combining dual power connectors and exclusive Core Boot technology, MEG series motherboard is ready for the challenge of high-end processors.


Core Boost

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while high-loading operation.


1-Second Overclocking

MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.


D.I.Y Stands Set

Unify series motherboard are aim to extreme power users, to provide the best user experience, the exclusive DIY Stands Set allow you to build a PC platform with ease. The DIY Stands Set even support fan installation with different scenario.


Pre-Installed IO Shield

Featuring the pre-installed IO shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

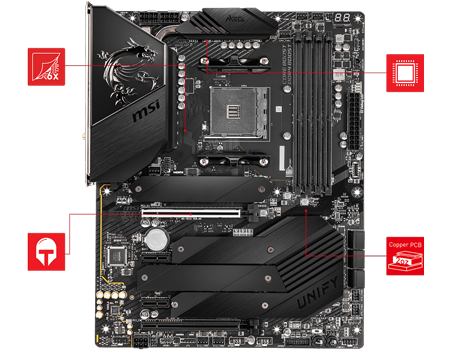

Flash BIOS Button

Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer 2 easy to use options to successfully boot your system again.


2oz Thickened Copper

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.


PCI-e Steel Armour

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.


Ultimate Motherboard Protection

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

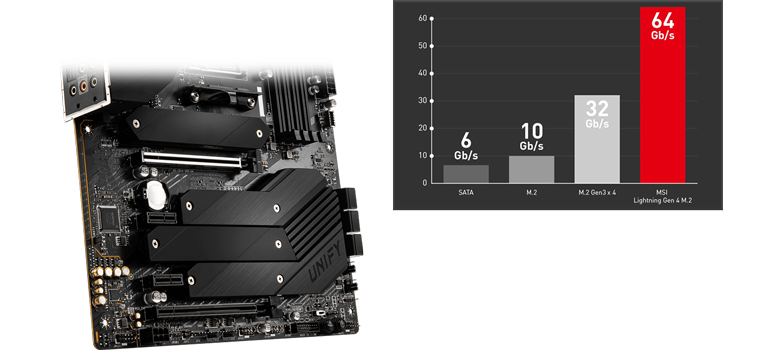

Lightning Gen 4 M.2

Utilising 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.


Fast and Future-Ready Storage

MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.


Optimised Storage Design

MEG B550 UNIFY series motherboard features exclusive onboard quadruple M.2 connectors for the maximum storage performance. The Industry leading design maximises bandwidth to fully utilise high-end storage devices, provides multiple configurations for demanding gamers and power users.

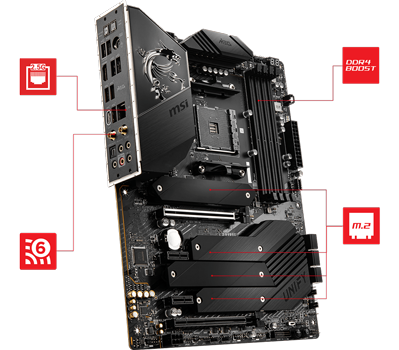

High-Bandwidth and Low Latency Networking

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

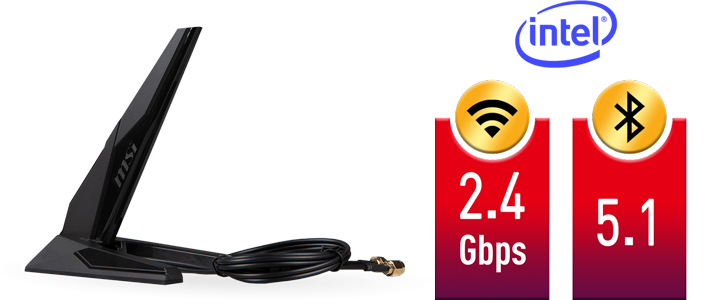

Support for WiFi 6

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

Features
• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Supports DDR4 Memory, Dual Channel 5100(OC) MHz+
• Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest Gen 4 solution with up to 64GB/s bandwidth for maximum transfer speed.
• Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU power connectors to unleash your true power.
• Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, AMD Turbo USB 3.2 GEN 2.
• Flash BIOS Button with Optmised ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
Specifications
Core Specifications
Edition MEG B550 UNIFY
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 5100+(OC)
Max. Memory Capacity 120GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen3x4
  • 3 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 30 x PCIe 4.0 x16, via Riser, Occupied, 4x NVMe HBA
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin CORSAIR connector
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 6 x 4-pin System Fan Connector
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 1 x Power button
  • 1 x Reset Button
  • 6 x SATA III - 6Gb/s
  • 1 x System Fan/Water Pump Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Port
  • 1 x USB 3.1 Gen1 Port
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
Network Chip/Modules 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)

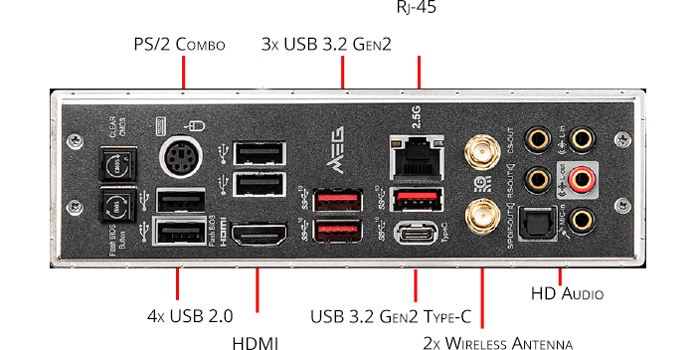

Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x Clear CMOS Button
  • 1 x HDMI 2.1
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi 802.11ax/BT5.0 Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 304 x 244 mm
Note
Additional Information
Scan Code LN113098
Model Number MEG B550 UNIFY
GTIN 4719072775056
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
