MSI MEG Intel Z490 ACE ATX Motherboard

MSI MEG Z490 ACE, Intel Z490, S 1200, DDR4, SATA3, 3x M.2, SLi/CrossFire, 2.5GbE, ax/BT5.1, USB 3.2 Gen2, ATX

Thumbnail 1 : MSI MEG Intel Z490 ACE ATX Motherboard Thumbnail 2 : MSI MEG Intel Z490 ACE ATX Motherboard Thumbnail 3 : MSI MEG Intel Z490 ACE ATX Motherboard Thumbnail 4 : MSI MEG Intel Z490 ACE ATX Motherboard
Scan code: LN107058 Manufacturer code: MEG Z490 ACE
Was: £384.98
£349.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £14.59 / month (APR 0%)
Monthly Payment: £29.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £349.99
Total inc. interest: £349.99
Monthly Payment: £14.59
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £349.99
Total inc. interest: £349.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 28th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

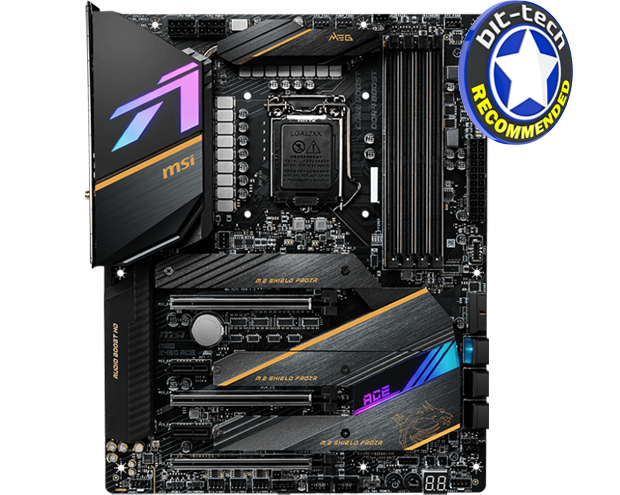

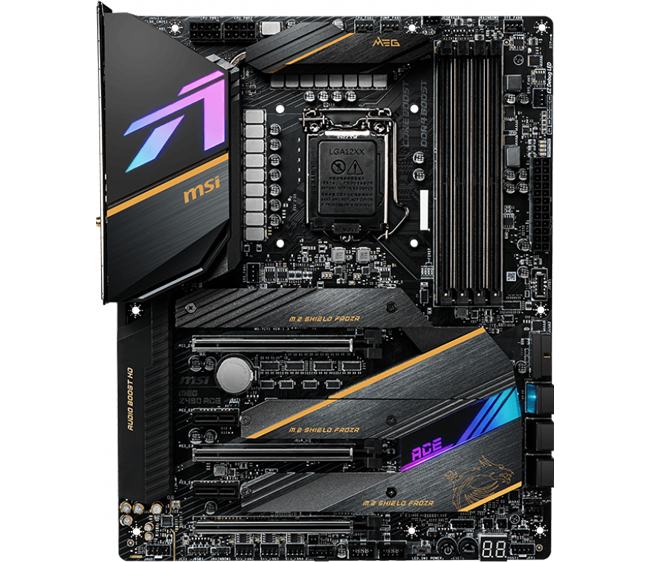

MSI MEG Z490 ACE - Intel 10th Gen Gaming ATX Motherboard

MSI Z490 ACE

The World Record Breaker MEG MotherboardThe Z490 Ace motherboard is a beautifully designed motherboard. The ACE Z490 model has been designed to push the boundaries of Intel Core 10th generation processors. The MEG ACE Z490 motherboard combines the strengths of MSI’s existing arsenal with new innovative technology resulting in significant improvements when gaming and working. Take complete control of the performance and personalise your motherboard with the extreme power design and outstanding cooling solution. On top of all this MSI mystic light allows you to choose from 16.8 million colors / 29 effects controlled in one click.

Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel Z490Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

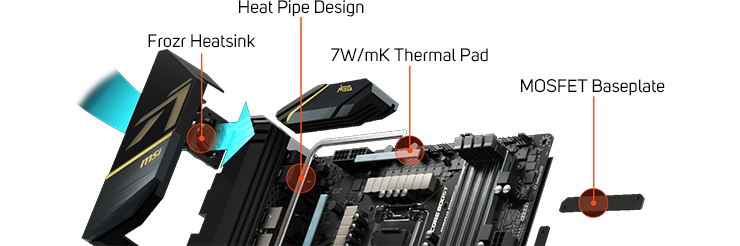

What is the Cooling like on the MSI Z490 ACE Motherboard?

Z490 ACE Cooling features

FULLY CONTROLLABLE FANS IN BIOS AND SOFTWAREM.2 Shield Frozr is the next generation M.2 thermal solution with a great design to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed.

Many Smart Features that Protect your Motherboard

Z490 ACE Cooling features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR The MSI MEG Z490 ACE supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running the NVIDIA® SLI™ and AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience. 6 PCB layers allow for higher bandwidth and faster transfer speeds which is also beneficial for reliable circuit transmission. A metal backplate also prevents bending and protects components which benefits your installation process while Double ESD protection doubles up the grounding layer around the mounting holes.

down

Humidity Protection

up

Temperature Protection

up

Circuit Protection

up

ESD Protection

up

EMI Protection

Give your Machine a Boost in 1 Second!

MSI Z490 Gameboost

Unleash and sustain maximum performance with an aggressive VRM design Combining dual power connectors and exclusive Mirrored Power Arrangement, MEG series motherboard is ready for the challenge of the new Intel 10th Gen Processors. MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS. Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision which creates perfect conditions for overclocking your CPU.

Personalize Your Gaming Rig with Dragon Centre

Mystic Light Z490

MILLIONS OF MARVELOUS COLORS, GREAT SELECTION OF EFFECTSMSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Create your own colourful masterpiece using the mystic light software Splash any color you want with just a few clicks! You can also optimise your monitor’s brightness, tweak overclock settings and control your fans. Take control of advanced motherboards features and unleash endless possibilities to tweak your machine the way you want it.

Fast and Future Ready Storage

BOOST YOUR HDD WITH INTEL OPTANEPC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. MSI have also included M.2 Genie which is a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.

down

3 x 32 Gbps

up

6 x 6 Gbps

many storage options for your PCMSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

Unmatched Memory Performance with DDR4 Boost

memory

Advanced performance with DDR4 BOOST MSI OC LAB does not merely work hard on extreme overclocking. Compare to Z390 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for Z490. The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

High Bandwidth and Low Latency Networking

Z490 ACE Networking

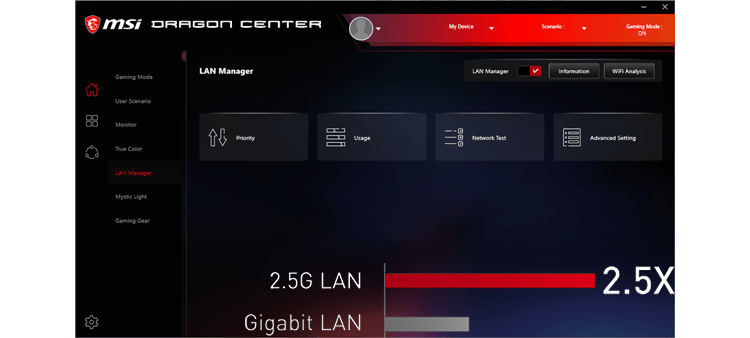

SURFACING WITH THE REAL MU-MIMO TECHNOLOGYOnboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

Hear your Enemies Approaching Before you See them!

GET CLEARER ORDER WITH VOICE BOOST Voice Boost automatically reduces the game’s audio when teammates speak, and sets volume back when no one speaks. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

down

HD ALC1220 AUDIO PROCESSORSupports DSD Super Audio CD playback & recording(64x better than regular CD quality) and 120dB SNR / 32-bit.

up

ESS AUDIO DACRecreates the optimal natural analogue sound with ultra-low distortion to ensure a perfect, realistic display of sound.

up

HIGH QUALITY AUDIO CAPACITORSA high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

up

GOLDEN AUDIO JACKS WITH S/PDIFKeep your sound perfect by transmit your audio with pure digital signal

up

DEDICATED HEADPHONE AMPLIFIERA dedicated headphone amp can drive audiophile headphones up to 600Ω impedance, delivering studio-grade sound quality.

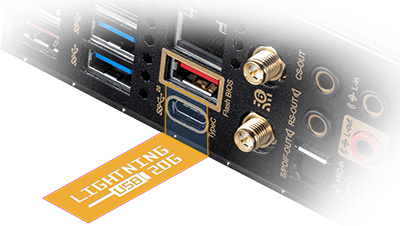

Lightning USB 20G Gives you Double Bandwidth

back

LIGHTNING USB 3.2 GEN 2x2 20GUsing USB 3.2 devices has never been faster! Featuring the Lighting ASmedia 3241 USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance. MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Specifications
Core Specifications
Edition MEG Z490 ACE
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) N/A
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost HD
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 3 x M.2 PCIe
  • 2 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN107058
Model Number MEG Z490 ACE
GTIN 4719072718923
