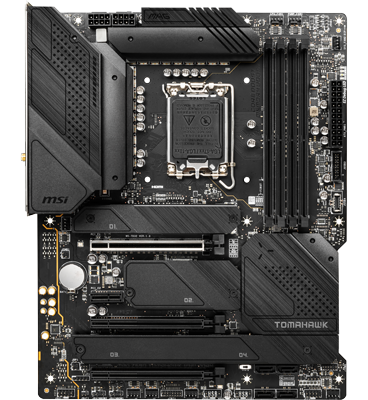

MAG Z690 Tomahawk (WIFI) DDR4 12th Generation Intel ATX Motherboard from MSI

MSI Z690

Blur The Line Between Performance and Aesthetics Take a step into the future. MSI have returned with the MAG Z690 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MSI Z690 Tomahawk Wi-Fi is filled with premium tech and bolstered with an arsenal of top-shelf modern features like; the very latest 5th generation PCI-e solution, huge storage options with 4x m.2 slots (3x PCIe Gen4x4 1x PCIe Gen3x4), lightning 20G USB connectivity, Audio/Core & DDR4 Memory boosts, a premium thermal design, onboard M.2 Shield Frozr, Wi-Fi 6 support delivering speeds of up to 2400 Mbps and a fully comprehensive rear I/O. The Z690 Tomahawk WiFi combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

ATXForm Factor

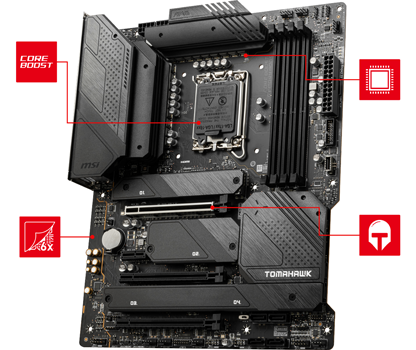

Special Features of the Z690 Tomahawk WiFi

4K Recording
down

Core Boost
Technology
With premium layout design, that is ready for unleashing the maximum performance.

up

Digital
PWM
An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, makes sure your system runs smoothly even under the most extreme conditions.

up

6 layer
PCB
6 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability with no compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

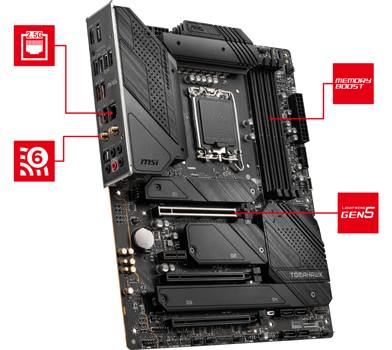

Next Generation Connectivity with MSI

4K Recording
down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

up

All-New PCI-e 5.0 The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

up

Intel Wi-Fi 6The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

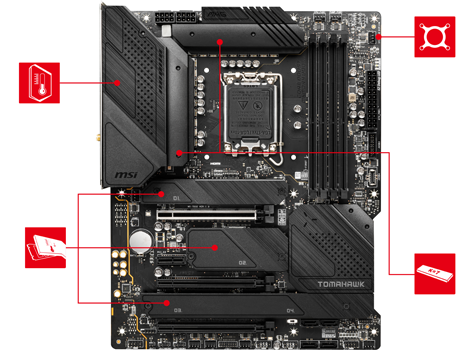

Premium Thermal Solution

4K Recording
down

Heatsinks with 7W/mK Thermal Pad7W/mK thermal pads provide better heat transfer to the heatsink increasing overall cooling efficiency.

up

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

up

Extended HeatsinkMSI extended heatsink and enhanced circuit design ensures better heat dissipation and cooling effects.

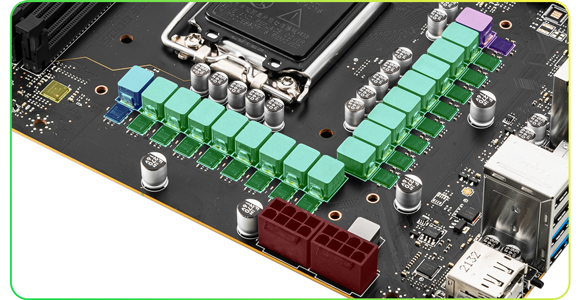

Aggressive Power Design

4K Recording

2x 8PinCPU Power connectors

16 Duet Rail Smart Power Stages

1 PhaseGT Power

1 PhaseAUX Power

Digital PWM IC

16 + 1 + 1 DUET RAIL SYSTEMUnleash and sustain maximum performance with an aggressive VRM design built with a total of 16 Duet Rail Power System(DRPS). Combining 2x 8-pin power connectors and exclusive Core Boost technology, MAG series motherboards are ready to sustain heavy daily work.

The Next Generation

4K Recording

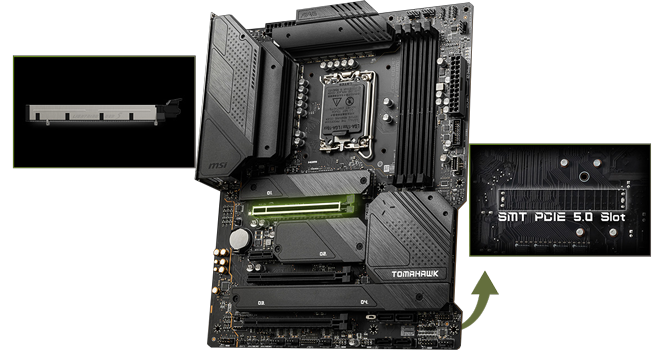

Lightning Gen 5 PCI-EMSI Lightning Gen 5 PCI-E takes the theoretical bandwidth of a x16 interface to whopping 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot reduces any interference and electrical noise, fully supporting the higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

Take Your Network To The Next Level

4K Recording

WI-FI 6 & BLUETOOTHUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6 adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

Amp' Up Your Audio Experience

down

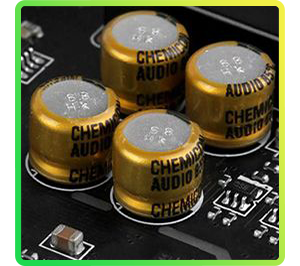

High Quality Capacitors

up

Dedicated Headphone Amplifier

MSI Audio boost 5 Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by an ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

up

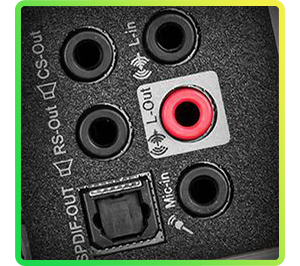

High Quality Audio Jacks

down

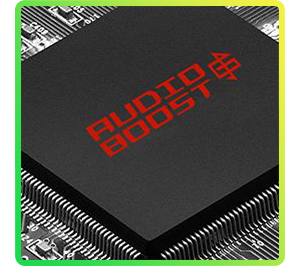

ALC 4080 Audio Processor

Fortify Your System

4K Recording

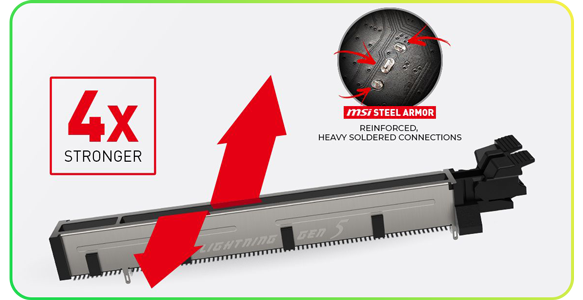

MSI Steel PCIe ArmourMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points are capable of supporting even the weight of the heaviest graphics cards. Plus when every advantage in games counts, Steel Armor protects the point of contact from external electromagnetic interference.

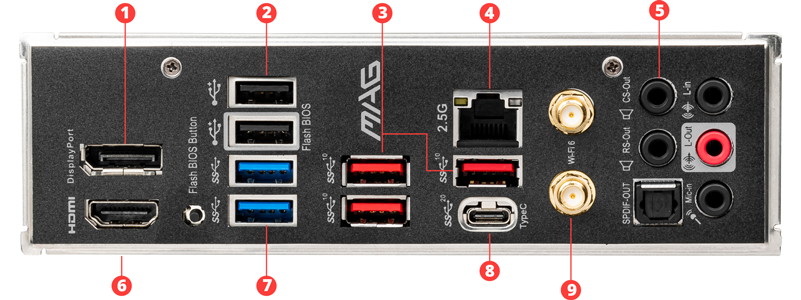

A Fully Comprehensive I/O

4K Recording

1. DisplayPort 1.4

2. 2x USB 2.0

3. 3x USB 3.2 Gen2

4. Rj-45

5. HD Audio Connectors

6. HDMI

7. 2x USB 3.2 Gen1

8. 1x USB 3.2 Gen2x2

9. Wifi/Bluetooth

Specifications
Core Specifications
Edition MAG Z690 TOMAHAWK WIFI DDR4
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 5200+(OC)
Max. Memory Capacity
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 4 x M.2 PCIe
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O 6 x SATA III - 6Gb/s
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN120173
Model Number MAG Z690 TOMAHAWK WIFI DDR4
GTIN 4719072886585
