MSI MAG Z590 TORPEDO Intel Z590 PCIe 4.0 ATX Motherboard
MSI MAG Z590 TORPEDO, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, CrossFire, 2.5GbE + GbE, ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£124.98|
|Total inc. interest:||£128.88|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 27th May
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

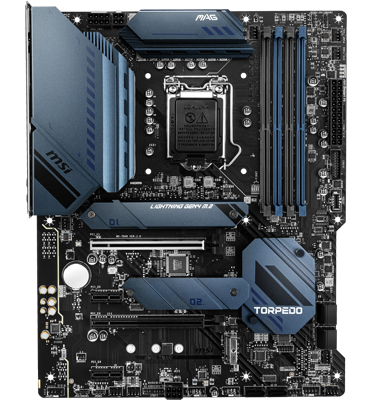

MAG Z590 TORPEDO 11th Generation Intel ATX Motherboard from MSI
A Whole New Generation Ready to experience the future of gaming? The MSI Z590 TORPEDO is here to support the very latest 11th Generation Intel processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2, lightning 20G USB connectivity, Audio/Core & DDR4 Memory boosts, a premium thermal design with extended heatsink design with 7W/mK thermal pads and a six layer PCB combined with dual onboard M.2 Shield Frozr. Network connectivity is handle by an onboard 2.5G + Gigabit LAN complete with LAN manager to deliver an incredible online experience. The Z590 Torpedo combines powerful aesthetics with premium performance and high-grade protection to bring you an immersive gaming experience, incredible product longevity and everything you need to squeeze every ounce of performance from your CPU, join the next generation with MSI Z590 Torpedo.

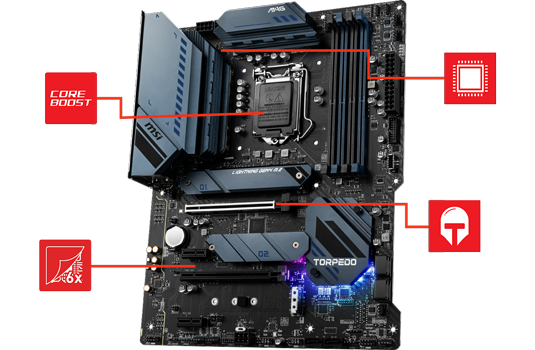

Special Features of the Z590 Torpedo
TechnologyWith premium layout design, that is ready for unleashing the maximum performance.
PWMHighest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
PCB6 layer PCB provides higher performance and long-lasting system stability without any compromise.
Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

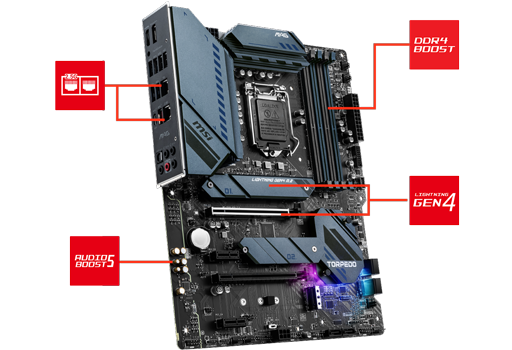

Next Generation Connectivity with MSI
2.5G Plus Gigabit LANFeaturing premium 2.5G LAN plus Gigabat lan with included LAN manager delivers a better network experience.
Audio Boost 5ALC4080 Codec with top quality caps for the most immersive gaming experience.
DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

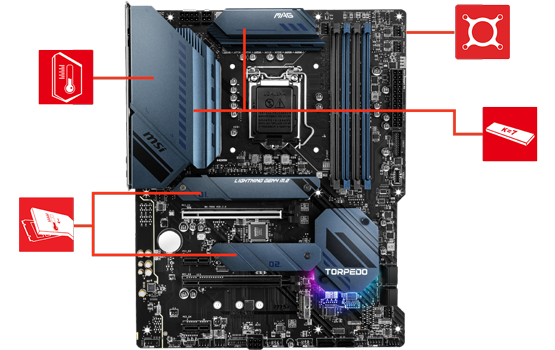

Premium Thermal Solution
7W/mK Thermal Pad7W/mK thermal pad provides more efficient and effective heat transfer to the heatsink.
M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan SupportControl watercooling pump speeds for best flow and noise control.
Enlarged Chipset HeatsinkLarger heatsink for chipset ensures better heat dissipation and cooling effects.

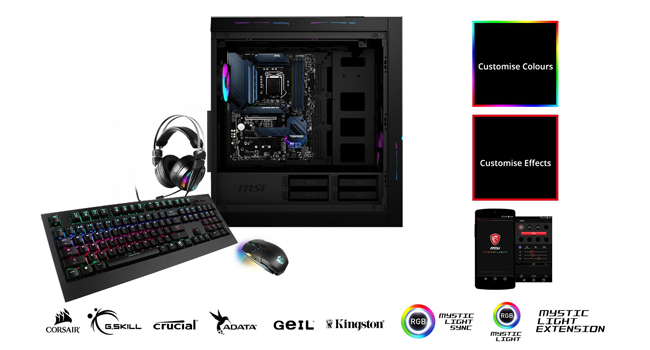

Light Up Your Ecosystem
MSI Mystic LightPersonalise your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >

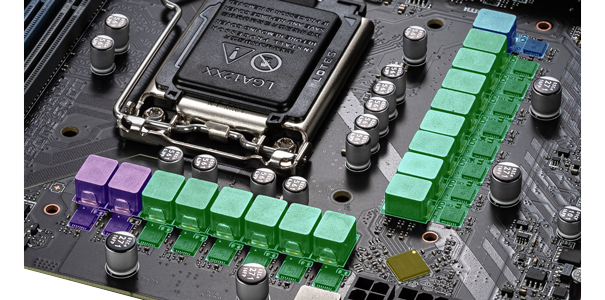

Unbelievable Power Solution
Time to Get Aggressive Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, MAG series motherboards are ready to sustain heavy demand.
2 PhaseGT Power
8+4CPU Power Connectors
1 PhaseSA Power
14 Duet RailCPU Power
Digital PWM IC

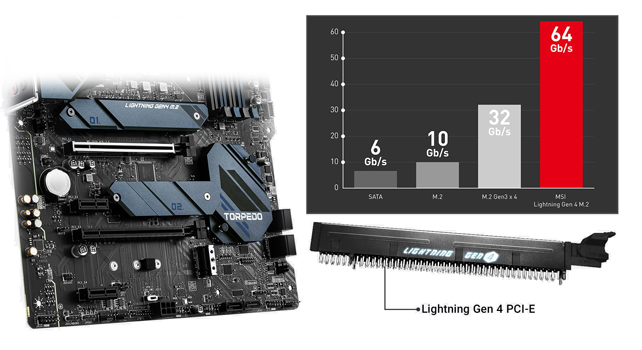

The Future is Now
LIGHTNING GEN 4 SOLUTIONThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
Experience Core Boost
faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.
Unmatched Memory Performance
Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MAG Z590 Torpedo supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
Overclock Your System in One Second!
MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!
Professional Gaming Audio
Amplify your game with Audio Boost 5 Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
A Fully Comprehensive I/O
|Edition||MAG Z590 TORPEDO|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek® ALC4080 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA / M.2 / PCIe|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
|Model Number||MAG Z590 TORPEDO|
