Hot Seller
Scan code: LN108237 Manufacturer code: MAG X570 TOMAHAWK WIFI

MSI AMD Ryzen X570 MAG TOMAHAWK WIFI AM4 PCIe 4.0 ATX Motherboard

MSI MAG X570 TOMAHAWK WIFI, AMD X570, AM4, DDR4, PCIe 4.0, 2x M.2, CrossFire, 2.5GbE, ax/BT5.1, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : MSI AMD Ryzen X570 MAG TOMAHAWK WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen X570 MAG TOMAHAWK WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen X570 MAG TOMAHAWK WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen X570 MAG TOMAHAWK WIFI AM4 PCIe 4.0 ATX Motherboard
Scan code: LN108237 Manufacturer code: MAG X570 TOMAHAWK WIFI
£219.98Item due on 14 August 2020
Due 14th Aug
From £10.56 / month (APR 14.9%)
Monthly Payment: £19.75
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £236.97
Monthly Payment: £10.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £253.38
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI X570 TOMAHAWK (Wi-Fi) 3rd Gen Ryzen ATX MAG Series Motherboard

MSI X570 Tomahawk

Conquer the Battlefield with this arsenal gaming motherboard Introducing the MSI X570 Tomahawk Wi-Fi, part of the highly rated MAG series and ready to support 2nd & 3rd generation AMD Ryzen CPUs with the AM4 socket, The Tomahawk is tuned to squeeze the best performance with exclusive MSI core boost, support for up to 4600 MHz DDR4 Memory. You can expect an all never level of gaming with the latest PCIe 4.0 standard for M.2 and PCIe expansion slots, the lightning Gen4 M.2 slots can support up to 64 GB/s bandwidth and faster transfer and lower latency than before. All this performance needs a complete thermal solution and with the X570 Tomahawk Wi-Fi you have just that with the integration of extended heatsinks, MSI’s exclusive Zero Frozr Technology and Frozr shields which will keep your components cool even under heavy demand. Take your experience to the next level with the MSI X570 Tomahawk Wi-Fi.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible Processors

ATXForm Factor

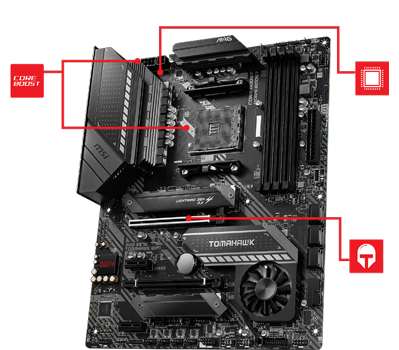

Special Features of the X570 Tomahawk

Main Features
Core Boost

Core Boost TechnologyCombining 8+4 pin power connectors and premium layout design, ready to unleash maximum performance.

Digital PWM

Digital PWMHighest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

Steel PCIE Slots

PCIe Steel ArmorProtecting VGA cards against bending and electromagnetic interference for better performance, stability and longevity.

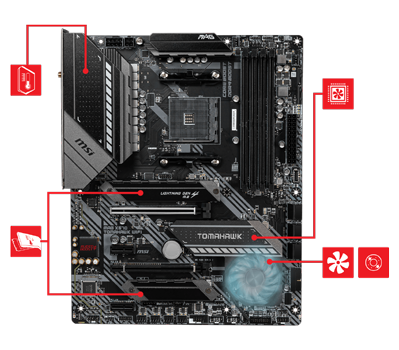

Premium Thermal Solution

Temperature Features
7w thermal Pad

M.2
Shield Frozr
Strengthened built in M.2 thermal solution, keeps M.2 SSDs safe preventing throttling allowing them to run faster.

Extended Heatsink

Extended
Heatsink
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors can run at full speed.

Pump Support

Zero
Frozr Technology
AI tuning system that auto adjusts your fan speeds by monitoring your chipset temperature, even eliminates all fan noise by stopping the fans under low-load

m.2 Shield

Frozr
Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

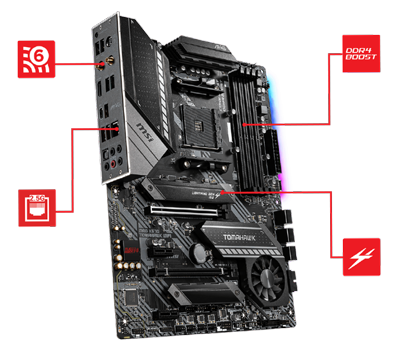

Next Generation Connectivity

Networking Features
Wi-Fi 6

Latest
Wi-Fi Solution
The latest wireless solution supports MU-MIMO and BSS color technology delivering eye-watering speeds up to 2400 Mbps.

DDR4 Boost

DDR4
Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

PCIe 4.0

Lightning
Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

2.5g LAN

Superb
Network Solution
Onboard 2.5G LAN with LAN manager delivering the ultimate online gaming experience.

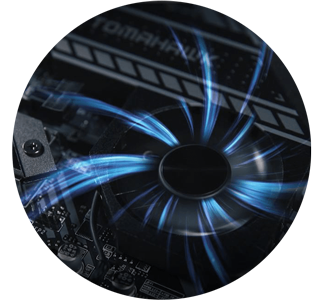

FROZR Heatsink Design

4K Recording

Exclusive Design for Maximum Airflow Higher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers.

Generation 4 Solution with M.2 Shield FROZR

MSI X570 Gaming plus

faster data transfer for M.2 devicesThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield FROZR is the next generation M.2 Thermal solution avoiding this by offering the best thermal protection to make sure the SSD maintains maximum performance.

Protect your Sensitive Components During Installation and Beyond

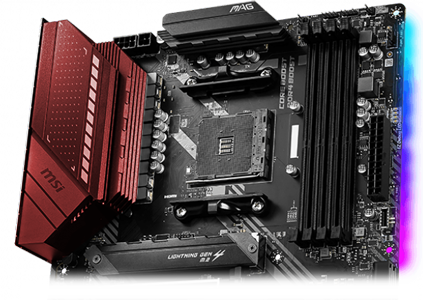

Extended Heatsink

Extended Heatsink and preinstalled IO shielding With newer processors housing more cores, thermal and power design becomes even more important to ensure temperatures remain stable. The MSI X570 Tomahawk features an all-metal extended heatsink with which you can also expect more efficient heat dissipation allowing even high end processors to run at full speed.

Experience Core Boost

X570 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.MSI X570 motherboards are optimized to maximize the performance on the AMD® Ryzen™ 3000 series processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds when compared to other brands. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what and with optimised memory traces you don't need to worry about your system crashing under load!

Overclock Your System in One Second!

MSI x570 Gameboost

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

The Next Generation of Wi-Fi

wifi6

EQUIPPED WITH 2.5G GAMING LAN Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.

Protecting your PCIe Slots

X570  PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

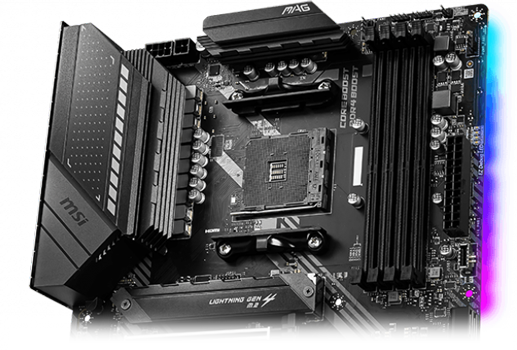

True Colour Control with MSI Mystic Light

Mystic Light

Your Motherboard Your Style Take personalisation up a notch with MSI Mystic Light, with 16.8 Million colours and 29 effects, create your own style and sync across mystic light supported products via the mystic light desktop or mobile application.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition MAG TOMAHAWK WIFI
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3066
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin RGB LED connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TBT connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Flash BIOS Button
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 2 x SMA antenna connectors
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108237
Model Number MAG X570 TOMAHAWK WIFI
GTIN 4719072718985
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
