Scan code: LN111511 Manufacturer code: B460 TORPEDO

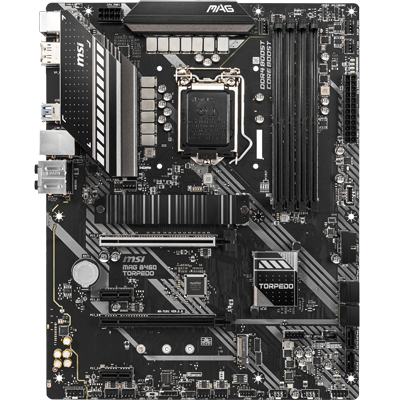

MSI MAG Torpedo Intel B460 ATX Motherboard

MSI MAG Torpedo, Intel B460, S 1200, DDR4, SATA3, 2x M.2, CrossFire, 2.5GbE, 4x USB 3.2 Gen1 Type-A, ATX

Thumbnail 1 : MSI MAG Torpedo Intel B460 ATX Motherboard Thumbnail 2 : MSI MAG Torpedo Intel B460 ATX Motherboard Thumbnail 3 : MSI MAG Torpedo Intel B460 ATX Motherboard Thumbnail 4 : MSI MAG Torpedo Intel B460 ATX Motherboard
Scan code: LN111511 Manufacturer code: B460 TORPEDO
£99.98Item due on 08 June 2021
Due 8th Jun
From £8.98 / month (APR 14.9%)
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MAG B460 Torpedo 10th Generation Intel ATX Motherboard from MSI

MSI B460 Torpedo

Conquer the Battlefield Get serious with the MAG B450 Torpedo ATX motherboard from MSI, designed to get the best possible performance from the latest 10th Generation Intel CPUs, ram-packed with features to bring high-end performance, sturdiness and durability to your system including Type-C connectivity, M.2 shielding for 1/2 of the your high-speed M.2 slots, Steel PCIe armour, MSI exclusive core and DDR4 boost and an extended heatsink to help maximise thermal efficiency and increase the longevity of your components, high definition audio and 2.5 Gigabit LAN. with all of this at your disposable you'll always be at the top of your game with MSI.

Intel B460Chipset

LGA 1200CPU Socket

ATXForm Factor

Special Features of the B460 Torpedo

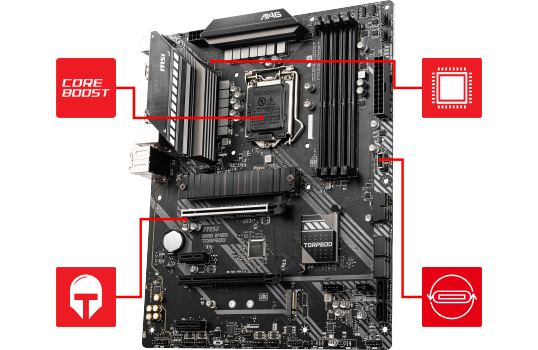

Main Features
Core Boost

Core Boost TechnologyWith premium layout design, that is ready for unleashing the maximum performance.

Digital PWM

Digital
PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

MSI Mystic Light

Front USB
Type-C
Compatible with the latest PC chassis and perfect for external drives and other mobile devices.

Steel PCIE Slots

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

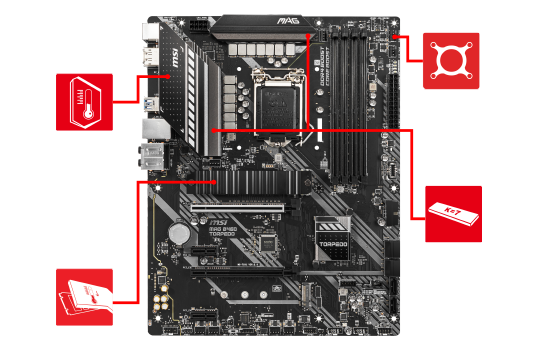

Premium Thermal Solution

Main Features
Core Boost

Extended HeatsinkMSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

Digital PWM

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

MSI Mystic Light

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

Steel PCIE Slots

7W/mK Thermal Pad7W/mK thermal pad provides better heat transfer to the heatsink.

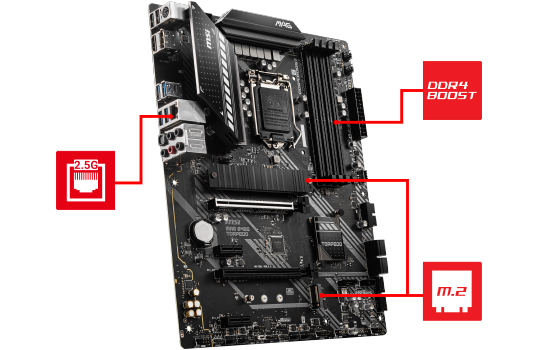

Next Generation Connectivity with MSI Torpedo

Next Gen Connections
2.5g Lan

2.5G Gigabit LANOnboard 2.5G LAN with LAN manager, delivering the best online gaming experience.

DDR4 Boost

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

M.2 Slots

Turbo M.2With 2 x M.2 slots . Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Unbelievable Power Solution

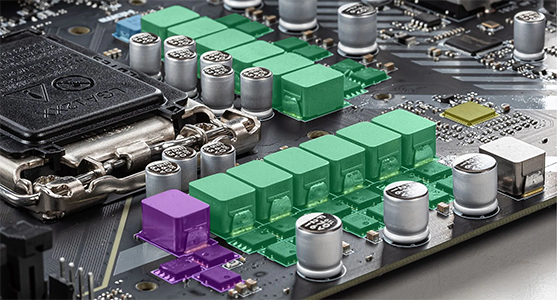

New VRM Power Design

Time to Get Aggressive Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. With exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

1 PhaseGT Power

8PinCPU Power Connectors

1 PhaseSA Power

CPU PowerCPU Power

Digital PWM IC

Protect your Sensitive Components During Installation and Beyond

Pre installed IO Shield

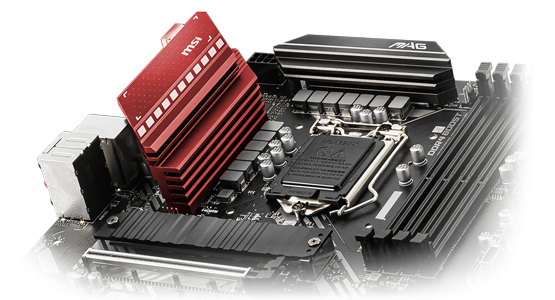

Extended HeatsinkThe MSI B460 Torpedo is designed to support the latest 10th generation intel CPUs meaning more cores, more power and more thermal output, MSI have extended the PWM heatsink on the Torpedo to ensure high-end CPUs can run at full speeds and you can realise your full potential.

Experience Core Boost

b460 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI B460 motherboards are optimized to maximise the performance on the 10th Gen Intel ® Core™ processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

B460  PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MAG B460 Torpedo supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition MAG B460 TORPEDO
Form Factor ATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin RGB LED connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 6 x System Fan header
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek RTL8125B
Rear I/O Connectors
  • 5 x Audio I/O
  • 1 x DisplayPort
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN111511
Model Number B460 TORPEDO
GTIN 4719072750695
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
14 days
RTB Period:
24 months
