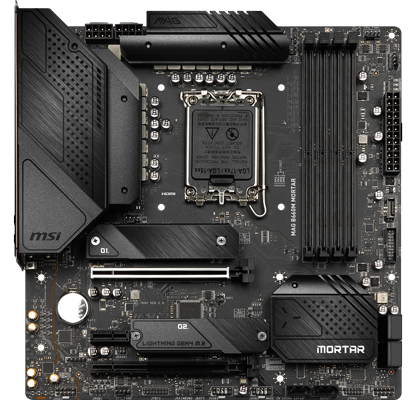

MAG B660M MORTAR Intel 12th Gen Micro-ATX Motherboard from MSI

MSI MAG B660M MORTAR MATX Intel Motherboard

Discover Breathtaking Performance Take a step into the future. MSI have returned with the MAG B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660M MORTAR is a gaming oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660M Mortar features PCIe 4.0 technology, latest DDR5 memory, Dual Gen4 M.2 support, lightning 20G USB connectivity, Core & DDR5 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr and a fully comprehensive rear I/O. The B660M Mortar combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.

Intel B660Chipset

LGA 1700CPU Socket

12th generation IntelCompatible CPUs

mATXForm Factor

Exclusive Features of the MAG B660M MORTAR

motherboard features
down

Core Boost
Technology
With a premium layout design, that is ready for unleashing the maximum performance.

up

Digital
PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

up

6 layer PCB
with 2oz Copper
6 layer PCB provides higher performance and long-lasting system stability without any compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

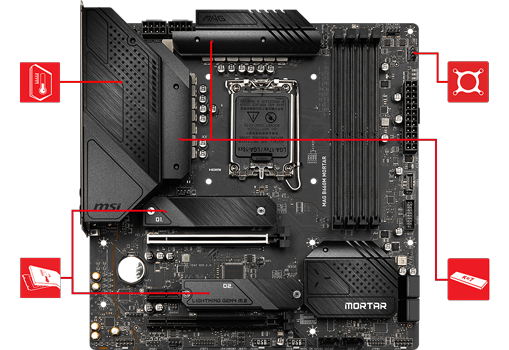

Premium Thermal Solution

Thermal Solution
down

Extended HeatsinkMSI extended heatsink and enhanced circuit design ensure even high-end processors to run in full speed.

up

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

up

Heatsinks with Thermal PadThe 7W/mK thermal pad provides better heat transfer to the heatsink.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

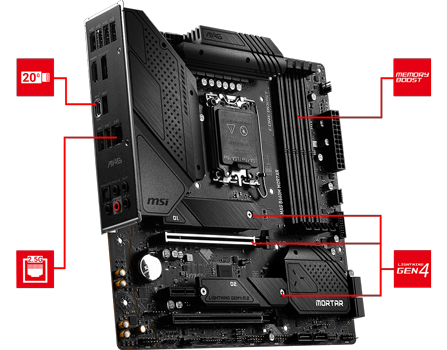

Next Generation Connectivity with MSI

Connectivity Features
down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

up

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

up

Lighting 20GBuilt-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Experience The Boundaries Of Modern Performance<

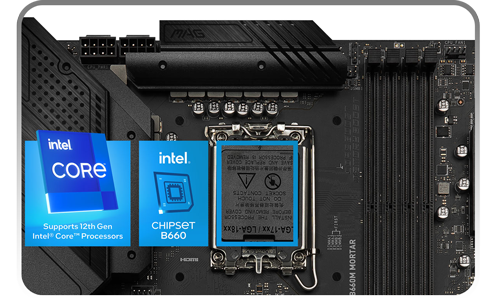

12th Gen Intel

Supports Intel Core 12th Gen ProcessorsThe MAG B660M MORTAR motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Aggressive Power Design

Power Design

12 Duet Rail CPU Power System

1 PhaseGT Power

1 PhaseAUX Power

Digital PWM IC

12+1+1 DUET RAIL POWER SYSTEMWith its dual 8-pin power connectors and exclusive Core Boost Technology, The MAG B660M MORTAR is able to sustain heavy CPU power loads to support system-demanding game settings:

Experience Core Boost

core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.

The Next Generation

PCIe Gen4

FORTIFIED PCI-E 4.0 X16MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Fast and Future-Ready Storage

Gen4 Storage

GEN4 M.2 CONNECTORSMSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

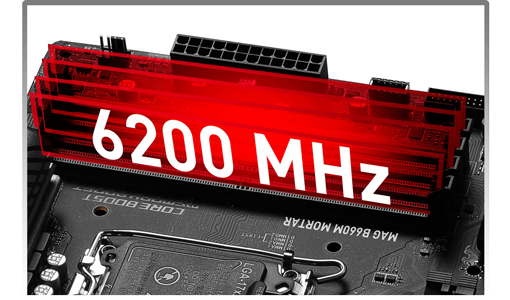

Get The Most from Your Memory

DDR5 Memory

Brand-New DDR5 MemoryA huge step forwards for DDR performance enhancement with the latest DDR5 memory. Combined with the dedicated SMT welding process and MSI exclusive Memory Boost technology, B660M MORTAR is ready to deliver the world class memory performance.

Specifications
Core Specifications
Edition MAG B660M MORTAR
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 6200(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support Intel Optane Memory Ready
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Connector
  • 2 x M.2
  • 1 x MONO out header
  • 6 x SATA III - 6Gb/s
  • 1 x SMBus header
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM (Trusted Platform Module)
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 3 x Audio I/O
  • 1 x Central Speaker Out
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-In (Optical)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
