Scan code: LN122430 Manufacturer code: MAG B660M MORTAR DDR4

MSI MAG Intel B660M MORTAR DDR4 MicroATX Motherboard

MSI MAG B660M MORTAR DDR4, Intel B660, S 1700, DDR4, SATA3, PCIe 4.0, 2xM.2, CrossFire, 2.5GbE, USB 3.2 Gen2, mATX

Thumbnail 1 : MSI MAG Intel B660M MORTAR DDR4 MicroATX Motherboard Thumbnail 2 : MSI MAG Intel B660M MORTAR DDR4 MicroATX Motherboard Thumbnail 3 : MSI MAG Intel B660M MORTAR DDR4 MicroATX Motherboard Thumbnail 4 : MSI MAG Intel B660M MORTAR DDR4 MicroATX Motherboard
Scan code: LN122430 Manufacturer code: MAG B660M MORTAR DDR4
Was: £189.98
£169.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £14.17 / month (APR 0%) or 0% for 4 months
Monthly Payment: £14.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £169.99
Total inc. interest: £169.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jan to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

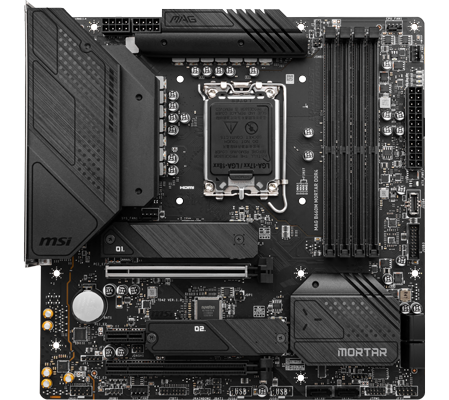

MAG B660M MORTAR DDR4 Intel 12th Gen Micro-ATX Motherboard from MSI

MSI MAG B660M MORTAR MATX Intel Motherboard

Discover Breathtaking Performance Take a step into the future. MSI have returned with the MAG B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660M MORTAR DDR4 is a gaming oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660M Mortar DDR4 features PCIe 4.0 technology, Dual Gen4 M.2 support, lightning 20G USB connectivity, Core & DDR4 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr and a fully comprehensive rear I/O. The B660M Mortar Wi-Fi combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.

Intel B660Chipset

LGA 1700CPU Socket

12th generation IntelCompatible CPUs

mATXForm Factor

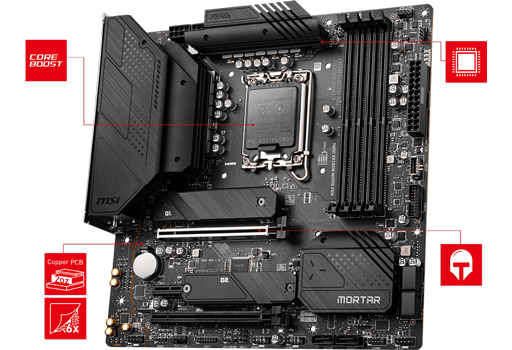

Exclusive Features of the MAG B660M MORTAR DDR4

motherboard features
down

Core Boost
Technology
With a premium layout design, that is ready for unleashing the maximum performance.

up

Digital
PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

up

6 layer PCB
with 2oz Copper
6 layer PCB provides higher performance and long-lasting system stability without any compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

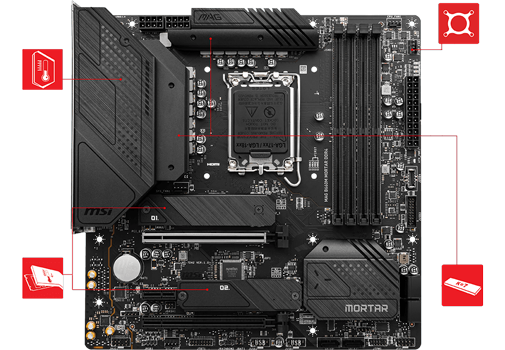

Premium Thermal Solution

Thermal Solution
down

Extended HeatsinkMSI extended heatsink and enhanced circuit design ensure even high-end processors to run in full speed.

up

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

up

Heatsinks with Thermal PadThe 7W/mK thermal pad provides better heat transfer to the heatsink.

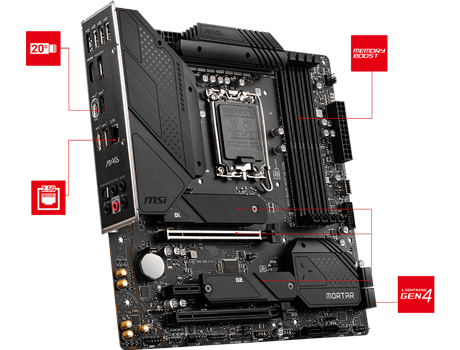

Next Generation Connectivity with MSI

Connectivity Features
down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

up

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

up

Lighting 20GBuilt-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Experience The Boundaries Of Modern Performance<

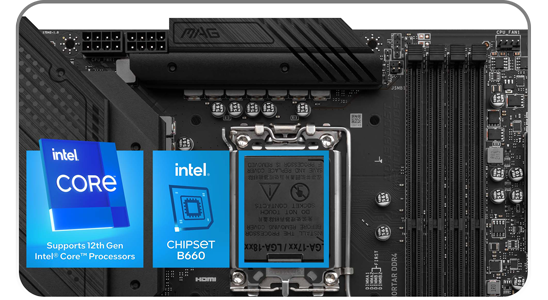

12th Gen Intel

Supports Intel Core 12th Gen ProcessorsThe MAG B660M MORTAR DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Aggressive Power Design

Power Design

12 Duet Rail CPU Power System

1 PhaseGT Power

1 PhaseAUX Power

Digital PWM IC

12+1+1 DUET RAIL POWER SYSTEMWith its dual 8-pin power connectors and exclusive Core Boost Technology, The MAG B660M MORTAR DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings

Experience Core Boost

core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.

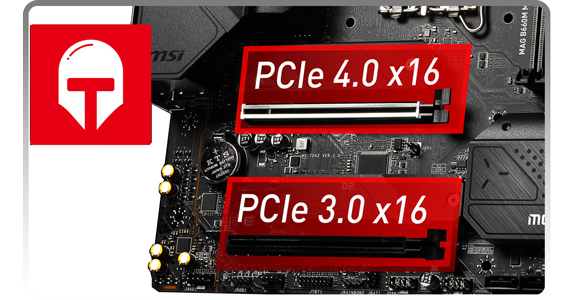

The Next Generation

PCIe Gen4

FORTIFIED PCI-E 4.0 X16MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Fast and Future-Ready Storage

Gen4 Storage

GEN4 M.2 CONNECTORSMSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

Specifications
Core Specifications
Edition MAG B660M MORTAR DDR4
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O 6 x SATA III - 6Gb/s
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN122430
Model Number MAG B660M MORTAR DDR4
GTIN 4719072909963
