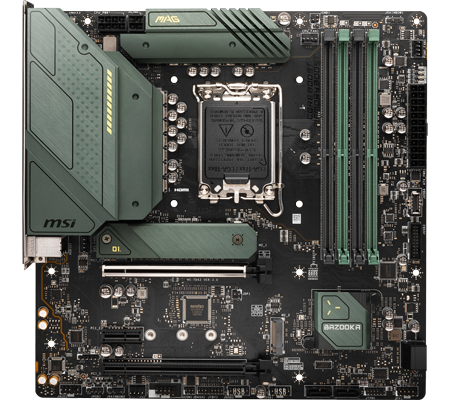

MAG B660M BAZOOKA DDR4 Intel 12th Gen Micro-ATX Motherboard from MSI
Discover Breathtaking Performance Take a step into the future. MSI have returned with the MAG B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660M BAZOOKA DDR4 is a gaming oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660M BAZOOKA DDR4 features PCIe 4.0 technology, Dual Gen4 M.2 support, Core & DDR4 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr and a fully comprehensive rear I/O. The B660M BAZOOKA DDR4 combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.
Experience The Boundaries Of Modern Performance

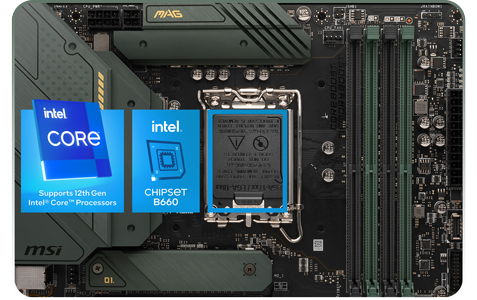

Supports Intel Core 12th Gen ProcessorsThe MAG B660M BAZOOKA DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

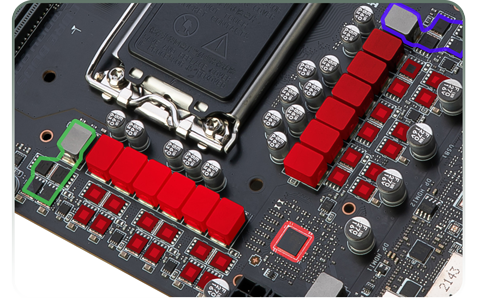

Aggressive Power Design
12 Duet Rail CPU Power System
1 PhaseGT Power
1 PhaseAUX Power
Digital PWM IC
12+1+1 DUET RAIL POWER SYSTEMWith its 8 pin plus 4 pin power connectors and exclusive Core Boost technology, the MAG B660M BAZOOKA DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
Experience Core Boost
faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.

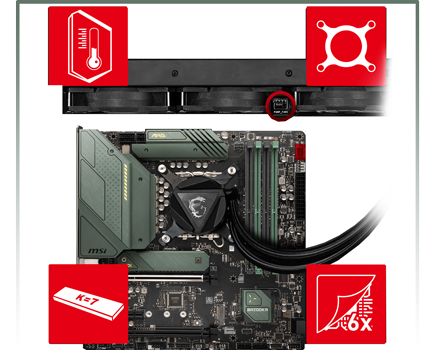

Designed To Keep Your Components Cool
VRM CoolingFeatures an extended heatsink and 7W/mK thermal pads.
PCB CoolingPremium 6-layer printed circuit design with 2oz thickened copper improves heat dissipation & reliability.
SSD CoolingM.2 Shield Frozr prevents thermal throttling.
System CoolingConnect and synchronise cooling with strategically placed pin-headers - including a dedicated pump-fan header.
The Next Generation

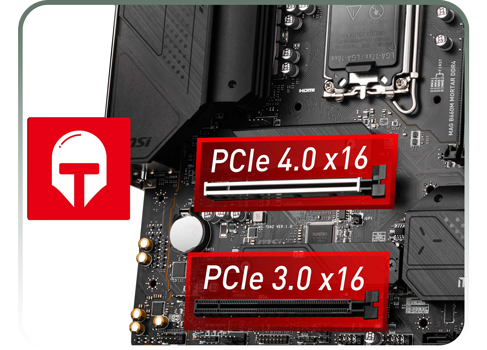

FORTIFIED PCI-E 4.0 X16MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Fast and Future-Ready Storage
GEN4 M.2 CONNECTORSMSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

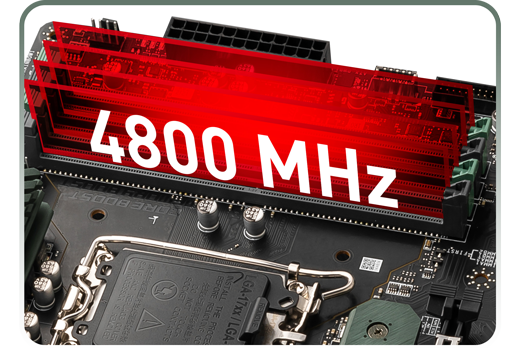

Maximise Your Memory
4 X DDR4 DUAL CHANNEL MemoryA fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.
|Edition||MAG B660M BAZOOKA DDR4|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||DDR4 - 4800(OC)|
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||7.1 Channel HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||Supported|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via|
|Storage Mode Support||Intel Optane Memory Ready|
|Network Interface Type||Wired 2.5 Gigabit LAN|
|Network Chip/Modules||1 x Realtek RTL8125 (2.5G LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||MAG B660M BAZOOKA DDR4|
