Scan code: LN122424 Manufacturer code: MAG B660 TOMAHAWK WIFI

MSI MAG Intel B660 TOMAHAWK WIFI ATX Motherboard

MSI MAG B660 TOMAHAWK WIFI, Intel B660, S 1700, DDR5, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, WiFi 6E/BT5.2, USB 3.2 Gen2, ATX

Thumbnail 1 : MSI MAG Intel B660 TOMAHAWK WIFI ATX Motherboard Thumbnail 2 : MSI MAG Intel B660 TOMAHAWK WIFI ATX Motherboard Thumbnail 3 : MSI MAG Intel B660 TOMAHAWK WIFI ATX Motherboard Thumbnail 4 : MSI MAG Intel B660 TOMAHAWK WIFI ATX Motherboard
Scan code: LN122424 Manufacturer code: MAG B660 TOMAHAWK WIFI
£220.49Item currently awaiting an ETA
Pre order
From £9.75 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £18.96
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £220.49
Total inc. interest: £227.42
Monthly Payment: £9.75
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £220.49
Total inc. interest: £233.93
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MAG B660 TOMAHAWK WIFI Intel 12th Gen ATX Motherboard from MSI

MSI MAG B660 Tomahawk Wifi ATX Intel Motherboard

Discover Breathtaking Performance Take a step into the future. MSI have returned with the MAG B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660 TOMAHAWK WIFI features PCIe 4.0 technology, Dual Gen4 M.2 support, Core & DDR5 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr, Wifi 6 support, Lightning 20G connectivity and a fully comprehensive rear I/O. The B660 TOMAHAWK WIFI combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.

Intel B660Chipset

LGA 1700CPU Socket

12th generation IntelCompatible CPUs

ATXForm Factor

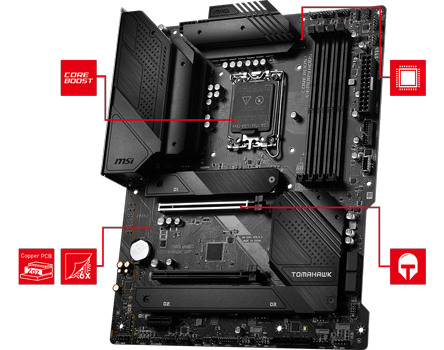

Special Features of the MAG B660 Tomahawk Wifi

down
down

Core Boost TechnologyWith premium layout design, that is ready for unleashing the maximum performance.

up

6 layer PCB with 2oz Thickened Copper6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

up

Digital PWMHighest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

down

PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

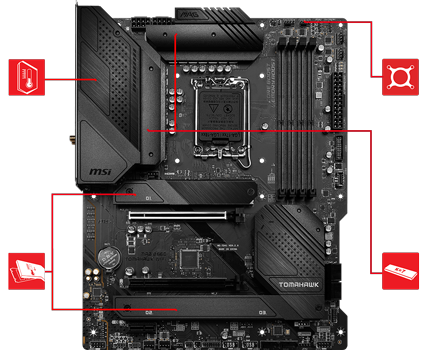

An Impeccable Cooling Solution

down
down

Extended HeatsinkMSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

up

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

down

Heatsinks with 7W/mK Thermal Pad7W/mK thermal pad provides better heat transfer to the heatsink.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

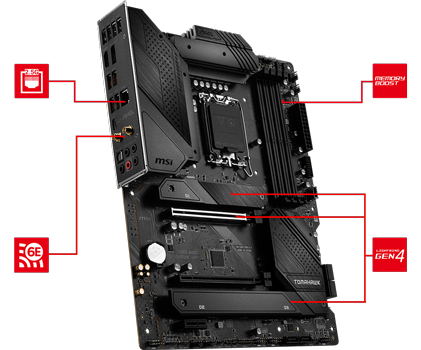

Next-Generation Connectivity

down
down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

Wi-Fi 6EThe latest wireless solution supports 6GHz Spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

up

Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

down

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Experience The Boundaries Of Modern Performance

12th Gen Intel

Supports Intel Core 12th Gen ProcessorsThe MAG B660 TOMAHAWK WIFI motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

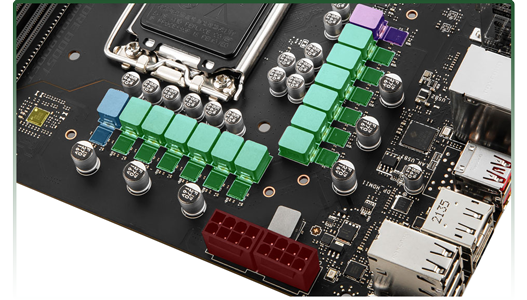

Aggressive Power Design

Power Design

12 Duet Rail CPU Power System

1 PhaseGT Power

1 PhaseAUX Power

Digital PWM IC

12+1+1 DUET RAIL POWER SYSTEMWith its dual 8 pin power connectors and exclusive Core Boost Technology, the MAG B660 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings.

Experience Core Boost

core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.

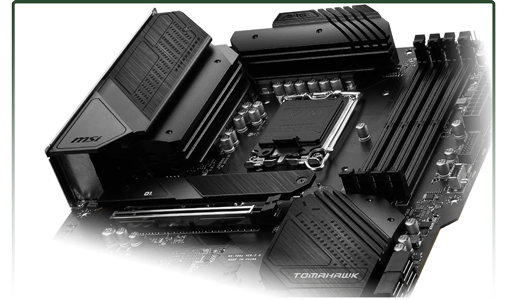

More Cores, More Performance, More Cooling

4K Recording

MSI Extended Heatsink DesignWith more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

The Next Generation

PCIe Gen4

FORTIFIED PCI-E 4.0 X16MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Fast and Future-Ready Storage

Gen4 Storage

2 x Gen4 x4 64Gb/s slots

1 x Gen4 x2 32Gb/s slot

GEN4 M.2 CONNECTORSMSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

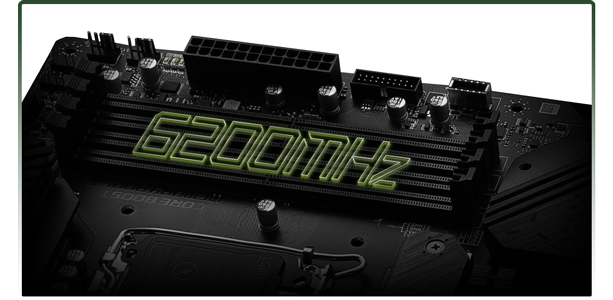

Maximise Your Memory

Memory XMP

4 X DDR5 DUAL CHANNEL MemoryA fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimised memory speed and stability.

Take Your Network To The Next Level

Wifi 6E

2.5G LAN A 2.5 Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2x2 Type-C Connect to devices and transfer files at high bandwidth rates: 20 Gb/s.

WIFI 6E The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

HD Audio 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.

Specifications
Core Specifications
Edition MAG B660 TOMAHAWK WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4000(OC)
  • DDR5 - 4800
  • DDR5 - 5200(OC)
  • DDR5 - 6200(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x2
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 5 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM (Trusted Platform Module)
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2
  • 1 x Realtek RTL8125-CG (2.5G LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF (Optical)
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN122424
Model Number MAG B660 TOMAHAWK WIFI
GTIN 4719072924942
