MSI AMD B550 MAG MORTAR Micro-ATX Motherboard

MSI MAG B550M MORTAR, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, 2.5GbE, USB 3.2 Gen2, Mic

Thumbnail 1 : MSI AMD B550 MAG MORTAR Micro-ATX Motherboard Thumbnail 2 : MSI AMD B550 MAG MORTAR Micro-ATX Motherboard Thumbnail 3 : MSI AMD B550 MAG MORTAR Micro-ATX Motherboard Thumbnail 4 : MSI AMD B550 MAG MORTAR Micro-ATX Motherboard
Scan code: LN108118 Manufacturer code: MAG B550M MORTAR
Was: £154.99
£139.99
Order now and receive it by Monday, 21st September
From £11.67 / month (APR 0%)
Monthly Payment: £11.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £139.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 21st Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

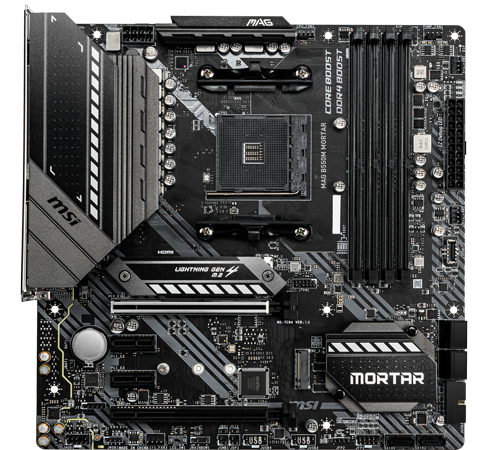

MAG B550M Mortar 3rd Generation Ryzen M-ATX Motherboard from MSI

MSI b550m no wi-fi

Conquer the Battlefield Introducing the all new B550M Mortar Motherboard from MSI This Micro ATX motherboard is perfect for those who prefer performance in a smaller form factor. The B550M Mortar supports 3rd Generation Ryzen Processors and boasts lightning fast PCIe 4.0 support, a 2oz copper PCB to give you peace of mind when it comes to heat dissipation. Part of the MAG series, born through rigorous quality testing and designed to be a symbol of sturdiness and durability and with its easy installation and user friendly interface make this motherboard perfect for entry level gamers and is sure to provide you with an incredible user experience.

AMD B550Chipset

AM4CPU Socket

M-ATXForm Factor

Special Features of the B550M Mortar

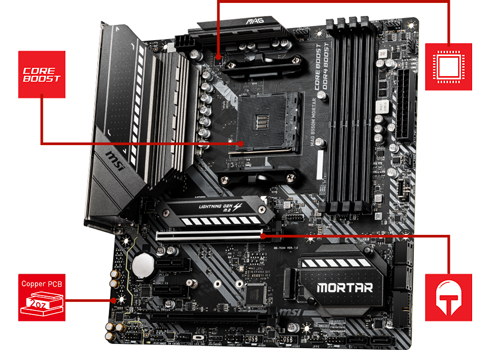

Main Features
Core Boost

Core Boost TechnologyMSI's premium layout design, that is ready to unleash maximum performance.

Digital PWM

Digital PWMHighest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

Steel PCIE Slots

PCIe Steel ArmorProtecting VGA cards against bending and electromagnetic interference for better performance, stability and longevity.

2oz Copper PCB

2oz Thickened Copper PCBAn enhanced PCB design improves heat dissipation and performance reliability.

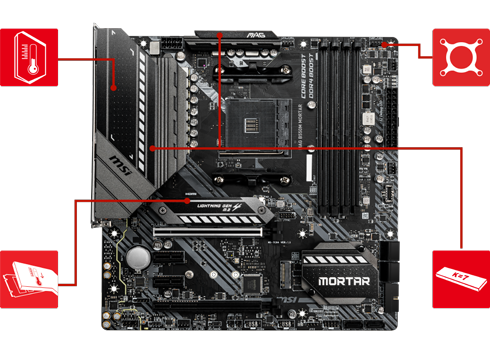

Premium Thermal Solution

Temperature Features
7w thermal Pad

7W/mK Thermal PadPreminum 7W/mK thermal pad covers both the MOSFET and chokes, providing better heat transfer to the heatsink.

Extended Heatsink

Extended HeatsinkMSI extended PWM heatsink and enhanced circuit design ensures even high-end processors can run at full speed.

Pump Support

Pump Fan SupportOptimise your watercooling pump speeds for better flow and noise control.

m.2 Shield

M.2 Shield FrozrBuilt-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, helping them run faster.

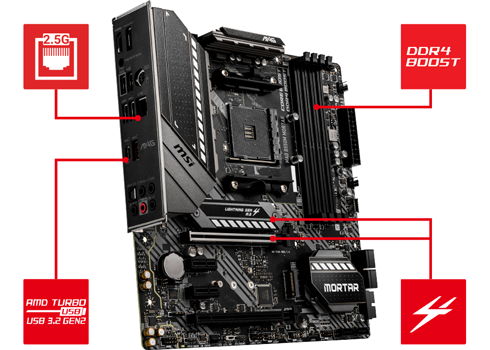

Next Generation Connectivity

Networking Features
Turbo USB

Turbo USBFeaturing the TURBO USB 3.2 GEN 2 10Gbps, with reversible Type-C connector.

DDR4 Boost

DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

PCIe 4.0

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

2.5g LAN

2.5G plus Gigabit LANFeaturing 2.5G LAN with LAN manager to deliver a better networking experience.

Unbelievable Power Solution

New VRM Power Design

10 +2 +1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboards are ready to sustain heavy daily work.

1 PhaseAPU Power

2 PhasesSOC Power

10 PhasesDuet Rail Power System/Smart Power Stage

Digital PWM IC

Protect your Sensitive Components During Installation and Beyond

Extended Heatsink

Extended Heatsink With newer processors housing more cores, thermal and power design becomes for important to ensure temperatures remain stable. The MSI B550M Mortar features an all-metal extended heatsink to enlarge the surface area. You can also expect more efficient heat dissipation allowing even high end processors to run at full speed.

Experience Core Boost

b550 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.

Give yourself a Lightning Fast Experience

4K Recording

LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds when compared to other brands. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what and with optimised memory traces you don't need to worry about your system crashing under load!

Protecting your PCIe Slots

B550  PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MAG B550M Mortar supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Connections at your Fingertips

B550m Mortar  I/O

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition MAG B550M MORTAR
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3066(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
