New
Scan code: LN110281 Manufacturer code: MAG A520M VECTOR WIFI

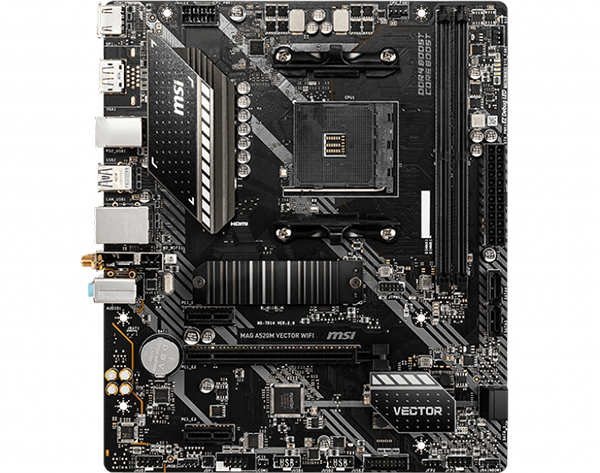

MSI MAG AMD Ryzen A520M VECTOR WiFi AM4 MicroATX Motherboard

MSI MAG A520M VECTOR WiFi, AMD A520, S AM4, DDR4, SATA3, M.2, Realtek GbE, ac WiFi/BT, USB 3.2 Gen1 A, MicroATX

Thumbnail 1 : MSI MAG AMD Ryzen A520M VECTOR WiFi AM4 MicroATX Motherboard Thumbnail 2 : MSI MAG AMD Ryzen A520M VECTOR WiFi AM4 MicroATX Motherboard Thumbnail 3 : MSI MAG AMD Ryzen A520M VECTOR WiFi AM4 MicroATX Motherboard Thumbnail 4 : MSI MAG AMD Ryzen A520M VECTOR WiFi AM4 MicroATX Motherboard
Scan code: LN110281 Manufacturer code: MAG A520M VECTOR WIFI
£76.49
Order now and get it tomorrow, Thu 24th Sep
Delivery Options
  • By DPD On 24th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI MAG A520M Vector motherboard with Wi-Fi

MSI MAG A520M Vector motherboard with Wi-Fi

BUILD A UNIQUE & IMPRESSIVE SYSTEMThe MAG series has had rigorous quality testing and is designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. The MSI A520M Vector Wi-Fi supports 3rd Gen AMD Ryzen™ & 4000 G-Series Desktop Processors with extremely fast memory capabilities. This MSI motherboard features a wealth of features making it ideal for gamers.

AMD A520Chipset

AM4CPU Socket

Micro ATXForm Factor

Thermal Solution for more Cores and Higher Performance

thermal solution

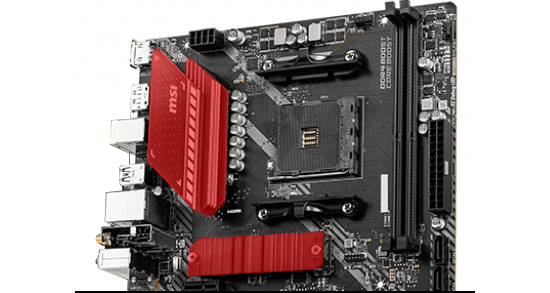

extended heatsink design with M.2 shield Frozr With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

Have Complete Control of all your Fans!

Total Fan Control

FAN AUTODETECT DC OR PWM MODE With MSI motherboards you can be in complete control of speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI fan headers can automatically detect if a fan needs to run in DC or PWM mode, streamlining the fan tuning experience.

Fast and Future Proof Storage

MILLIONS OF MARVELOUS COLOURS, GREAT SELECTION OF EFFECTSMSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

rgbstrip

1 X M.232 Gbps

phone

4 X Sata6 Gbps

Excellent Memory Performance

RGB

EASY OVERCLOCKING WITH A-XMP PROFILE MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. The A-XMP in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

Stable, Secure and Fast Networking

LAN

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!This next-generation Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency. MSI LAN Manager allows you to change applications' traffic priority and customize bandwidth for each application.

Sound That Pulls You into the Game

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

HIGH QUALITY AUDIO CAPACITORS

HIGH QUALITY AUDIO CAPACITORSA high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

audio boost

DEDICATED HD AUDIO PROCESSORMake sure you enjoy the purest sound quality in both stereo and surround sound.

audio connectors

HIGH QUALITY AUDIO JACKSKeep your sound perfect by transmit your audio with pure digital signal.

Specifications
Core Specifications
Edition MAG A520M VECTOR WIFI
Form Factor MicroATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2666(OC)
  • DDR4 - 2800
  • DDR4 - 2800(OC)
  • DDR4 - 2933
  • DDR4 - 2933(OC)
  • DDR4 - 3000
  • DDR4 - 3000(OC)
  • DDR4 - 3066
  • DDR4 - 3066(OC)
  • DDR4 - 3200
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 210 mm
Note
Additional Information
Scan Code LN110281
Model Number MAG A520M VECTOR WIFI
GTIN 4719072752583
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
