Scan code: LN77636 Manufacturer code: 911-7A67-02S

MSI H270I Gaming Pro ac WiFi Kaby Lake Mini ITX Motherboard

MSI H270I GAMING PRO AC, Intel H270, S 1151, DDR4, SATA3, M.2 (PCIe/SATA), Intel GbE/WiFi , USB 3.1 Gen1 A, Mini ITX

Thumbnail 1 : MSI H270I Gaming Pro ac WiFi Kaby Lake Mini ITX Motherboard Thumbnail 2 : MSI H270I Gaming Pro ac WiFi Kaby Lake Mini ITX Motherboard Thumbnail 3 : MSI H270I Gaming Pro ac WiFi Kaby Lake Mini ITX Motherboard Thumbnail 4 : MSI H270I Gaming Pro ac WiFi Kaby Lake Mini ITX Motherboard
Scan code: LN77636 Manufacturer code: 911-7A67-02S
£116.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

H270I Gaming Pro AC: Mini but Mighty

MSI H270I Mini-ITX Gaming Motherboard

HIGH-PERFORMANCE IN A COMPACT FORM FACTOR Perfect for gaming in an ultra-compact form factor with Intel’s latest Kaby Lake CPUs, the MSI H270I Gaming Pro AC comes full with a wealth of cutting-edge features such as GAMING LAN, Audio Boost, & Turbo M.2 normally only found on larger boards. The board also comes kitted-out with an award-winning BIOS, DDR4 Boost and incredible VR capabilities, supporting 7th, 6th, Pentium and Celeron processors for the LGA 1151 CPU socket.

Intel H270Chipset

1151CPU Socket

Mini-ITXForm Factor

DDR4Memory Type

Incredible Speeds with DDR4 Boost

MSI DDR4 Fast Boost

UNMATCHED MEMORY PERFORMANCE MSI motherboards are packed with features to fuel your PCs memory with more speed, higher overclockability and incredible stability. With DDR4 Boost you’ll discover incredible memory performance, with optimized traces and a fully isolated memory circuitry to ensure higher memory speeds to make sure your system never crashes during gaming or working.

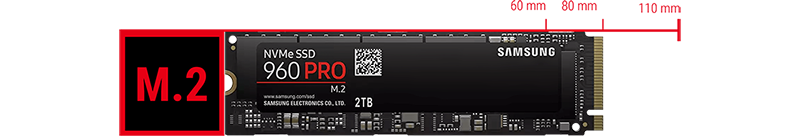

Lightning fast M.2 Connectivity

MSI super-fast Turbo M.2 connection

ENJOY ULTRA-FAST LOADING TIMES Discover insanely fast operation with Turbo M.2 which is over five times quicker than a regular SATA III connection. Reap all the benefits of rapid load times as Gen3 Turbo M.2 can deliver speeds of up to 32Gb/s.

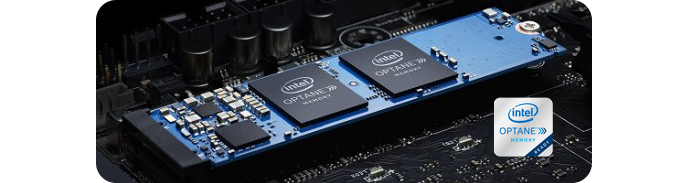

Intel® Optane™ Memory

H270I Intel Optane Memory

UNPARALLELED CONNECTIVITY Intel® Optane™ is a revolutionary memory technology supported by the H270I. Optane memory works to accelerate your storage and contribute to fast loading and boot up times to make your PC incredibly fast and responsive.

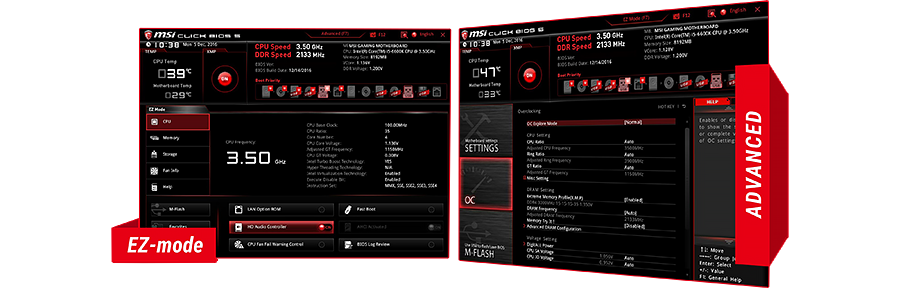

MSI’s Intuitive BIOS Software

MSI Bios Interface

ENDLESS CONTROL & CUSTOMIZATION OPTIONS The sleek, high-resolution MSI BIOS contains all the latest options for beginners to hardcore enthusiasts. The extensive features let you fine tune your system in both EZ-mode for quick alteration, or in the advanced mode for more in-depth changes. The BIOS comes with a clean layout, and also has search and favourites options so you can quickly access the features you need most. Hardware monitor lets you take control of your system fans and check primary system vitals, with the ability to set up to 4 temperature targets to automatically adjust fan speeds.

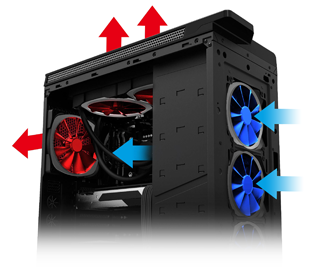

Constant Cooling Flow

MSI included fan headers

STAY SUPER COOL WHILE GAMING Keeping your PC cool is a priority when striving for amazing performance. The H270I comes fitted with two addressable fan headers and a water pump PIN header to deliver a cool and silent system, along with DC and PWM modes for optimal tuning. Hysteresis ensures your fans spin up efficiently to make sure your system stays silent, no matter what.

Perform Tasks Instantly with Gaming Hotkey

MSI H270I Gaming Hotkey

CUSTOMIZE YOUR SYSTEM THE WAY YOU LIKE Gaming hotkey lets you simply assign functions to any key whether to launch your favourite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! Easily program your most-used commands and execute them with a single keystroke. You’re free to choose any key you want, so choose wisely.

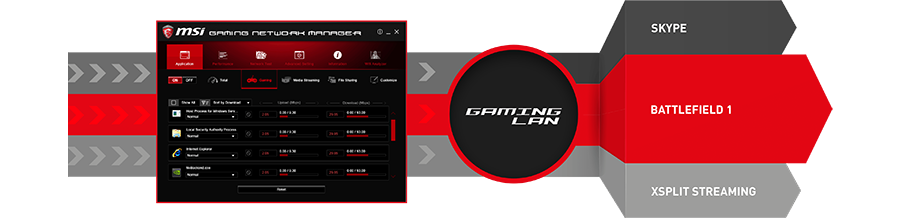

Discover Gaming Without any Lag

MSI Gaming LAN

MSI GROUND-BREAKING GAMING LAN & MANAGER Dominate your enemies on the digital battlefield with MSI GAMING LAN, giving you the greatest lag-free gaming experience. The GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games to give you low latency, and lets you change bandwidth and traffic priority for applications you are using to give you fast and precise speeds when gaming and/or streaming or when using software like XSplit Gamecaster.

Experience True Sound Immersion

CUTTING-EDGE AUDIO BOOST TECHNOLOGY MSI Audio Boost offers studio-grade sound quality to give you the most immersive gaming experience, using premium quality components to deliver the most exciting audio and gameplay. Audio Boost has been engineered to deliver truly immersive Hi-Fi sound to give gamers a grand advantage over their opponents during matches.

MSI Audio processor

HIGH DEFINITION AUDIO PROCESSORAudio Boost is powered by an EMI-shielded high quality HD audio processor to give you uninterrupted sound.

MSI De-pop protection

NO LOUD POPPING SOUNDSDe-Pop protection eliminates any sound when plugging/unplugging audio devices to protect your ears.

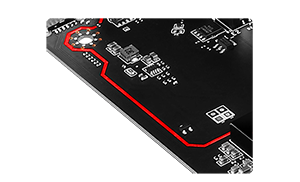

MSI accented border

ISOLATED LED BORDERA bright border illuminated by LEDs showcases and protects the Hi-Fi audio unit.

MSI Audio capacitors

GOLDEN CHEMI-CON AUDIO CAPACITORSBringing to you a warmer and realistic sound, the Chemi-Con capacitors are considered to be one of the ultimate choices for sound.

MSI high-quality PCB layers

INDIVIDUAL PCB LAYERSThe PCB features separated left & right audio layers for clean, seamless sound quality.

MSI audio connectors

BE IMMERSED IN TRUE SURROUND SOUND5.1 audio provides high quality audio connectors to give you the finest signal output and less distortion.

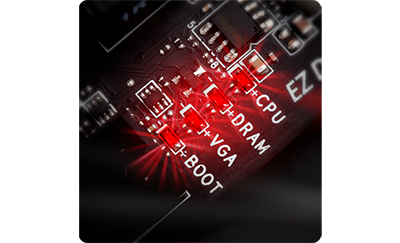

Easily find the Source of the Problem

MSI EZ Debug Lights

EZ DEBUG LED LEDs for key components will show you the source of any problems so you can easily get back up and running.

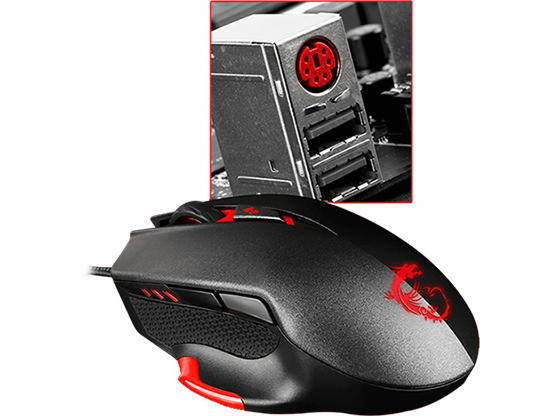

Ultimate Power in the Palm of Your Hand

MSI H270I Gaming Device Port

DEDICATED PORT FOR YOUR GAMING PERIPHERALS The H270I contains a GAMING Device Port that delivers unbelievable optimized connectivity for your high-end peripherals that allows them to unleash their greatest performance. Mouse Master software allows you to tweak your mouse DPI to enhance your accuracy for pin-point precision and accurate gameplay.

X-Boost your USB Performance

MSI H270I X-Boost

SUPER CHARGE YOUR PHONE & GAMING GEAR X-Boost can be enabled to optimize your devices for improved transfer speeds, and can deliver up to 20% increased USB performance to give faster data transfers. This intuitive tool is easy to use and can automatically detect and optimize the USB devices that you connect.

Fortify your System with Durable Materials

MSI H270I Quality materials

UNBEATABLE QUALITY AND RELIABILITY Only premium quality components are used to form MSI motherboards. They integrate the latest technological innovations that deliver a superior gaming and computing experience. Demanding testing under extreme conditions ensure that you get a dependable, high performance motherboard that is gaming certified and delivers the best FPS for lag-free gameplay.

Specifications
Core Specifications
Edition
Form Factor Mini-ITX
CPU Socket 1151
Chipset Intel H270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-42/60/80, PCIe/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (867Mbps)
  • 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN77636
Model Number 911-7A67-02S
GTIN 4719072496180
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
