MSI NVIDIA GeForce GTX 1070 8GB Gaming Z Graphics Card

MSI GeForce GTX 1070 GAMING Z 8GB GDDR5 VR Ready Graphics Card, 1920 Core, 1632 MHz GPU, 1835 MHz Boost, Twin Frozr VI

MSI
Scan code: LN72966 Manufacturer code: GTX 1070 GAMING Z 8G Request call
£503.48
In stock
Pay on Scan Finance with a 10% deposit from just £12.57 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 9th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

MSI GeForce GTX 1070 Twin Frozr VI GAMING Z

MSI GAMING Z GTX 1070

The Gaming Z 1070 graphics card is for the enthusiasts that desire the peaked graphical performance of a 1070. For a little extra in cost this MSI 1070 primarily brings a higher clock and boost speed, pushing game and media immersion to its limits. As well as the enhanced speeds the GTX Gaming Z 1070 boasts an LED on the back-plate for some added style, built right into the MSI gaming logo.

Take on today’s most challenging graphics intensive PC games without missing a beat. The GeForce GTX 1070 graphics card delivers the incredible speed and power of NVIDIA Pascal™ the most advanced GPU architecture ever created. This is the ultimate gaming platform. #GameReady.

1920
CUDA Cores

8GB
GDDR5

1506MHz
Base Clock

1683MHz
Boost Clock

HIGH QUALITY CORE COMPONENTS

COOL LED EFFECTS

Stylize Your 1070 GPU with RGB LED



Through the MSI Gaming App each LED on the 1070 GAMING can be controlled individually and customized using the various animation effects. These animatiosn range from responding to game or music sounds to a breathing effect - of course they can always be turned off.

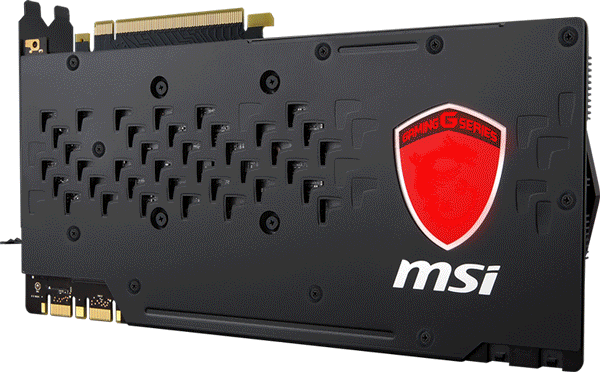

RGB LED BACKPLATE

Style Your GAMING Z Even More



A powerful graphics card needs a strong build to harness its performance. MSI GAMING graphics cards are fitted with a solid metal back plate to make it extra tough. The backplate on MSI GAMING Z graphics cards feature a premium RGB LED MSI GAMING shield which can be controlled in the MSI Gaming App.

GAMING Z 1070 ADVANCED AERODYNAMICS

Advanced GPU Cooling Technologies



The GAMING Z from MSI has various aspects to help keep this gaming GPU as cool as possible. Every detail of this intricate heat-sink plays an essential part in providing a cool and quiet gaming experience.

Airflow Control


This GTX 1070 utilizes advanced aerodynamics, Airflow Control Technology directs more air directly onto the TWIN FROZR VI heat pipes. The special deflectors on the heat sink enlarge the surface area, creating lower temperatures and better gaming.

Smooth Heat Pipes


Embedded within the GAMING Z 1070 GPU are copper heat-pipes running through the cards fins. These 8mm thick pipes have been made with a smooth square shape, this will maximize heat transfer from the surface of the copper base plate.

Solid Base-Plate


To temper the heat generated by a powerful GPU, MSI GAMING series graphics cards use a solid nickel-plated copper base plate. The base plate catches the heat from the GPU and transfers it to the heat pipes for dissipation - further increasing the cooling.

TORX 2.0 FAN MOUNTED GAMING Z 1070

Dispersion Fan Blade

Steeper curved blade, accelerates airflow, increasing effectiveness

Traditional Fan Blade

Steeper curved blade, accelerates airflow, increasing effectiveness

Advanced TORX 2.0 Fan

TORX fan technology works in teamwork with TWIN FROZR VI to achieve new levels of cooling. The fans design generates 22% more air pressure for supremely silent performance when gaming. The fans also feature double ball-bearings for a strong and lasting core for years of smooth gaming - also helps with noise elimination.

ZERO FROZR GAMING Z COOLING

Fans Spinning

During intense gaming or benchmarking

Fans Stop

Completely silent during idle, multimedia or light gaming

MSI GTX 1070 FROZR Cooling

MSI released this technology in 2008 and it has since become an industry standard among graphics cards. FROZR will eliminate fan noise by stopping the fans in low-load situations, meaning you can keep focus on your gaming, streaming or other media without the noise of spinning fans.

HIGH QUALITY COMPONENTS

1

Rugged Anti Bending strip

2

Memory Cooling Plate for stable & high overclocks

3

Larger PCB for extra cooling

4

Extra 6 pin (75 Watt) power connector

5

PWM Heatsink with micro fins to ensure cool temperatures

Military Class 4



A deciding factor in your graphics card’s performance is the quality of components thata re used. GAMING Z 1070 makes use of only MIL-STD-810G certified components to ensure the highest quality possible. When stress tested under torturous circumstances these components have proven very durable.

MSI GAMING APP

SILENT MODE


The best environment for minimal fan noise

GAMING MODE


Balance between in-game performance and silence

OC MODE


Max performance from higher clock speeds and fan performance

Control your GAMING Z 1070



This app from MSI allows you to access single click performance profiles that can unlock extra potential for gaming, or keep your 1070 card silent during light sessions. It also features the EyeRest tab, giving you easy access to image quality improving technology. The LED control tab gives you full control over your MSI GAMING LED lights to set the mood.

GAMING Z MOBILE CONTROL

Customize GTX 1070 From Your Mobile



The exclusive MSI Gaming App is now also available for Android so you can control your graphics card from your phone without having to switch to Windows - uninterrupted gaming from MSI.

MSI GAMING APP & AFTERBURNER

Complete Control over your GAMING Z



This technology belongs to MSI but is recognized throughout the world of graphics cards overclocking. It displays hardware performance and grants you complete control over your 1070 GPU. Plus it grants the ability to customize fan profiles, record videos / games and is great for benchmarking.

GTX 1070 CONNECTIONS

HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI

GEFORCE GTX VR READY

GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.

Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.

Specifications
Specifications
Chipset GeForce GTX 1070
Edition GAMING Z
Manufacturing process 16 nm
Microarchitecture Pascal
Cores 1920
Streams N/A
Core Clock 1632 (1657 in OC Mode) MHz
Boost Clock 1835 (1860 in OC Mode) MHz
Memory Size 8GB
Memory Type GDDR5
Memory Clock 8108 MHz
Memory Bus 256 Bit
Cooling Solution Dual Fan (2)
Cooler Design Twin Frozr VI
Included/Fitted Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 1 x HDMI 2.0b
Maximum Digital Resolution 7680x4320 @ 60Hz
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
NVIDIA SLI Support 2 Way SLi with High Bandwidth Bridge Support
GeForce GTX VR Ready Yes
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Width Dual Slot
Low Profile Compatible No
Low Profile Support N/A
Graphics Card TDP/Power 150W
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 1 x 8-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature 94 °C
Dimensions 279 x 140 x 42 mm
Package Type Retail
