MSI Cubi 5 Intel i5 Barebone Mini PC

MSI Barebones Mini PC Cubi 5, Intel Core i5 10210U, DDR4, Intel UHD Graphics, 2.5"/M.2, WiFi 6 Support, GbE, HDMI/DP

MORE INFO
MORE INFO
Thumbnail 1 : MSI Cubi 5 Intel i5 Barebone Mini PC Thumbnail 2 : MSI Cubi 5 Intel i5 Barebone Mini PC Thumbnail 3 : MSI Cubi 5 Intel i5 Barebone Mini PC Thumbnail 4 : MSI Cubi 5 Intel i5 Barebone Mini PC
Scan code: LN109339 Manufacturer code: 936-B18311-008
£349.99
Add To Basket
In stock
Order now and get it tomorrow, Thu 28th Jan
From £16.80 / month (APR 14.9%)
Monthly Payment: £31.42
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £349.99
Total inc. interest: £377.04
Monthly Payment: £16.80
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £349.99
Total inc. interest: £403.18
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 28th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

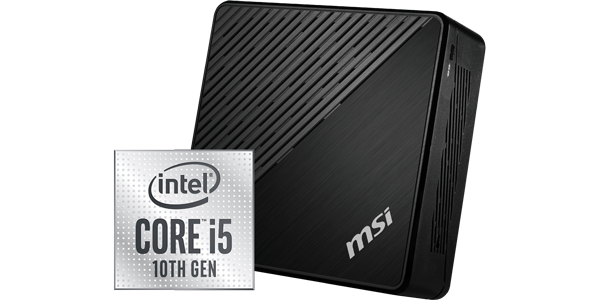

Cubi 5 10M Intel Core i5 Barebone Mini-PC from MSI

Cubi 5

Worlds First 10th Gen Intel Efficient Mini-PC The MSI Cubi 5 is a small but powerful miniature desktop PC, perfect for use at home whether as a HTCP (home theater) an all around media PC or even at the office/commercial projects making it ideal for countless applications. Bolstered by a powerful Intel Core 10th Generation i5 processor, space for 1x m.2 SSD and 1x 2.5" HDD/SDD, 2 SO-DIMM slots for DDR4 2666MHz up to a maximum capacity of 64GB and type-C connectivity, this palm sized beauty with an easy to upgrade design is quiet, energy efficient and can even mounted to the back of a monitor with standard VESA-mount making your Cubi 5 almost invisible.

Intel® Core™ i5-10210UProcessor

Intel UHD GraphicsOnboard Graphics

2666 MHzDDR4 Memory Speed

Powered by Intel Comet Lake

FREE FROM LIMITATIONSPowered by the latest Intel 10th Generation i5 Core processor, delivering high end computing in a beautiful, miniature form factor.

Small Enough to Hold in Your Palm

Great Thing Come in Small Packages MSI Cubi 5 is the smallest mini PC in its kind. With a 0.66 liter case that still provides all the elements of a desktop-worthy PC.

Mountable Straight to Your Monitor

Out of Sight Out of MindCubi 5 is designed with a mini size and supports standard VESA-mount. Mount the Cubi 5 to the back of your monitor and make the PC completely invisible giving your setup and ultra-clean spacious feel.

Intuitive, Upgradable, What More Can You Ask?

Super Easy To UpgradeThe MSI Cubi 5 has just 4 screws in the bottom cover making it super easy to gain access and replace the M.2 SSD, memory modules and 2.5” HDD/SSD storage slots. It’s just that simple and it also supports an external power switch making powering on the system much easier if you have chosen to rear mount this mini-pc this is a convenient switch on the desk and hitting it rather than bend down to turn the computer on.

Please Note

External Power Switch Cable is not included and must be purchased separately.

How Loud is the Fan?

Quiet, Energy Efficient DesignNot just great aesthetics, this barebone Mini-PC has a superb thermal design and a low noise fan resulting in a low noise level of only 23.6dB in idle mode.

MSI Cares About Your Productivity

Quiet, Energy Efficient DesignIs one monitor not enough? Are you watching a lot of webpages and applications on a small monitor? With the HDMI and DP ports, MSI Cubi 5 can support dual monitors, you can do and view more.

Connections at Your Fingertips

1x HDMI OUT (1.4)

1x DisplayPort (1.2)

3x USB 3.2 Gen 1 Type A

1x USB 3.2 Gen 1 Type C

2x USB 2.0

1x Headphone-out

1x Microphone-in

1x RJ-45

Specifications
Edition Cubi 5 10M
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i5
CPU Model 10210U
Architecture Comet Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed 1.6 GHz
Burst Frequency 4.2 GHz
CPU Cache 6MB
CPU Cooler
Max. TDP 15 W
CPU Socket Integrated CPU
Chipset System-on-Chip
Motherboard Form Factor Bespoke/Custom
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2666
Max. Memory Capacity 64GB (2x32GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed 300 MHz
Max. GPU Speed 1100 MHz
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 4096x2304 (4K)
Graphics Interface On-board
Expansion Slots 1 x M.2, 22-80, PCIe Gen3x4
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive N/A
Drive Bays 1 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
  • 1 x Intel® I219V (Gigabit LAN)
Front Panel
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Back Panel
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black
Dimensions 124 x 53.7 x 124 (mm WxHxD)
Weight 0.55 kg
Includes
Notes
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN109339
Model Number 936-B18311-008
GTIN 4719072682170
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
MSI
