Scan code: LN115308 Manufacturer code: B560M PRO-VDH WIFI

MSI Intel B560M PRO-VDH WIFI Micro-ATX Motherboard

MSI B560M PRO-VDH WIFI, Intel B560, S 1200, DDR4, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, WiFi 6, BT5.1, USB 3.2 Gen2,Micro-ATX

Thumbnail 1 : MSI Intel B560M PRO-VDH WIFI Micro-ATX Motherboard Thumbnail 2 : MSI Intel B560M PRO-VDH WIFI Micro-ATX Motherboard Thumbnail 3 : MSI Intel B560M PRO-VDH WIFI Micro-ATX Motherboard Thumbnail 4 : MSI Intel B560M PRO-VDH WIFI Micro-ATX Motherboard
Scan code: LN115308 Manufacturer code: B560M PRO-VDH WIFI
Order now and receive it by Tuesday, 5th July
£109.99
Get it Tuesday, 05 JulIn stock
From £9.46 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £9.46
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £113.43
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 5th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

B560M PRO-VDH WIFI Intel 11th Gen mATX Motherboard from MSI

MSI B560M PRO-VDH-WIFI MATX Intel Motherboard

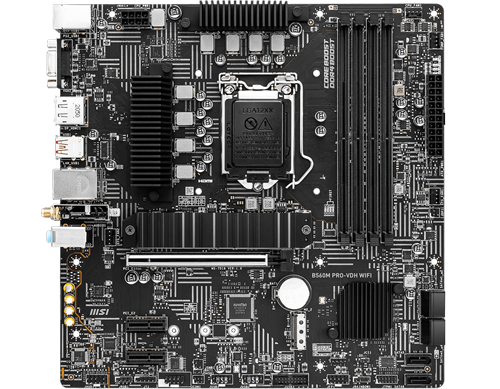

Reliability Even Under Extreme Conditions The MSI B560M PRO-VDH WIFI MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the latest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Intel B560Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

mATXForm Factor

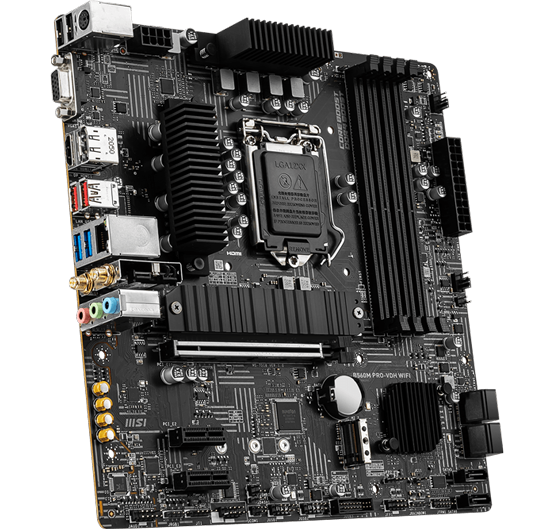

Special Features of the B560M PRO-VDH WIFI Motherboard

motherboard features
down

Core Boost
Technology
With a premium layout design, that is ready for unleashing the maximum performance.

up

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

up

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

up

2.5g Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

Intel Wi-Fi 6The latest wireless solution supports MU-MIMO and BSS colour technology, delivering speeds up to 2400Mbps.

up

PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

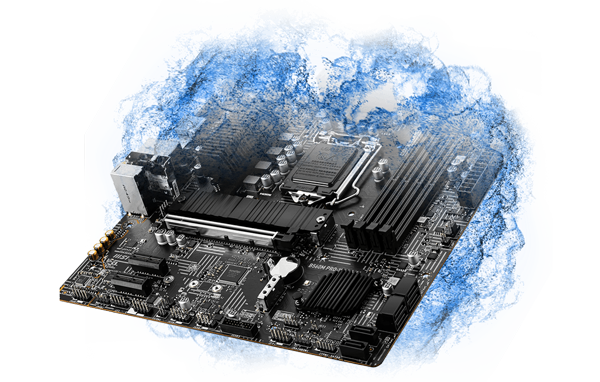

Premium M.2 SHIELD FROZR Solution

Thermal Solution

OPTIMIZED FOR WATER COOLING WITH A DEDICATED WATER PUMP PIN HEADERPart of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed.

Experience Core Boost

core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

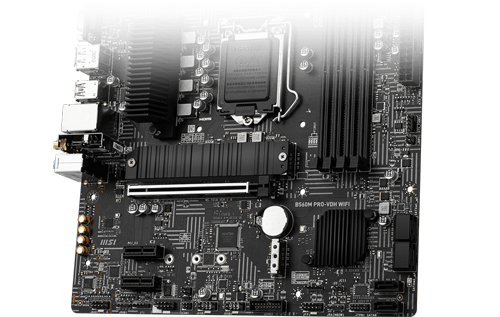

Fast and Future-Ready Storage

Storage

LIGHTNING GEN 4 PCI-E and steel armor design MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device.

Professional Gaming Audio with an Isolated Design

audio

Amplify your game with Audio Boost Make sure you enjoy the purest sound quality in both stereo and surround sound. A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured, thanks to high quality audio capacitors. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

High-Bandwidth and Low-Latency Network

Ports

Connect with USB 3.2 Gen 1 Featuring 2.5Gbps LAN which provides incredible data transfer speed faster than general Gigabit LAN. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.

Specifications
Core Specifications
Edition B560M PRO-VDH WIFI
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5066(OC)
  • DDR4 - 5200(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM (Trusted Platform Module)
  • 2 x USB 2.0 Header
  • 2 x USB 2.0 Port
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
  • 1 x Realtek RTL8125 (2.5G LAN)
  • 1 x Realtek RTL8125B

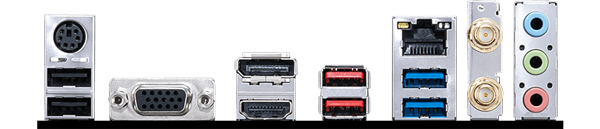

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 mm x 244 mm mm
Note
Additional Information
Scan Code LN115308
Model Number B560M PRO-VDH WIFI
GTIN 4719072807849
