MSI Intel B560M PRO-VDH Micro-ATX Motherboard
MSI B560M PRO-VDH, Intel B560, S 1200, DDR4, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, Micro-ATX
By DPD On 25th Oct
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

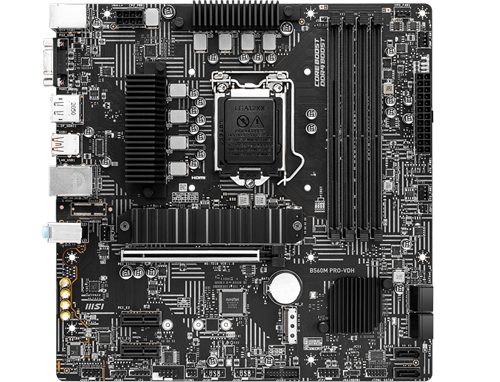

B560M PRO-VDH WIFI Intel 11th Gen mATX Motherboard from MSI
Reliability Even Under Extreme Conditions The MSI B560M PRO-VDH MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the latest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

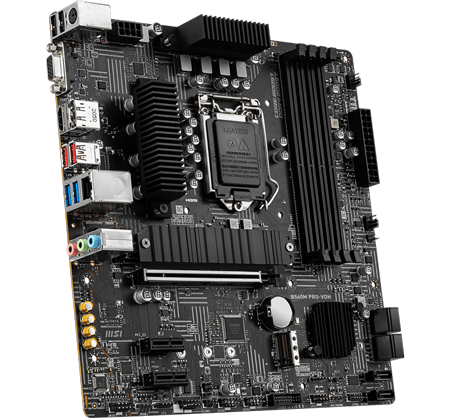

Special Features of the B560M PRO-VDH Motherboard
TechnologyWith a premium layout design, that is ready for unleashing the maximum performance.
DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5g Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.
PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.
Premium M.2 SHIELD FROZR Solution
OPTIMIZED FOR WATER COOLING WITH A DEDICATED WATER PUMP PIN HEADERPart of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface.
You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed.
Experience Core Boost
faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Unmatched Memory Performance
Advanced performance with DDR4 BOOST MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

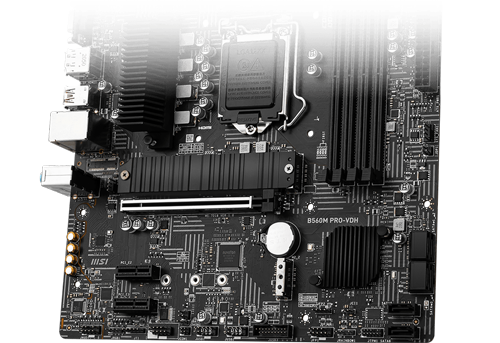

Fast and Future-Ready Storage
LIGHTNING GEN 4 PCI-E and steel armor design MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device.
Professional Gaming Audio with an Isolated Design
Amplify your game with Audio Boost Make sure you enjoy the purest sound quality in both stereo and surround sound. A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured, thanks to high quality audio capacitors. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.
High-Bandwidth and Low-Latency Network
Connect with USB 3.2 Gen 1 Featuring 2.5Gbps LAN which provides incredible data transfer speed faster than general Gigabit LAN. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC897 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||N/A|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|RAID Support via|
|Storage Mode Support|
|Network Interface Type||Wired 2.5 Gigabit LAN|

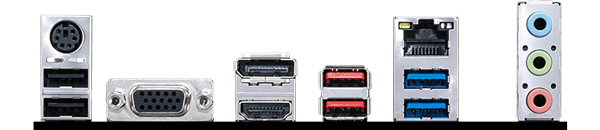

|Rear I/O Connectors||
|Board Dimensions||244 mm x 244 mm mm|
|Model Number||B560M PRO-VDH|
