Scan code: LN108495 Manufacturer code: B450 GAMING PRO CARBON MAX WIFI

MSI AMD Ryzen B450 GAMING PRO CARBON MAX WIFI AM4 ATX Motherboard

MSI B450 GAMING PRO CARBON MAX WIFI, AMD B450, S AM4, DDR4, SATA3, 2x M.2, GbE, ac WiFi/BT5, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : MSI AMD Ryzen B450 GAMING PRO CARBON MAX WIFI AM4 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen B450 GAMING PRO CARBON MAX WIFI AM4 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen B450 GAMING PRO CARBON MAX WIFI AM4 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen B450 GAMING PRO CARBON MAX WIFI AM4 ATX Motherboard
Scan code: LN108495 Manufacturer code: B450 GAMING PRO CARBON MAX WIFI
£119.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £10.78 / month (APR 14.9%)
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 2nd Nov To 3rd Nov to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

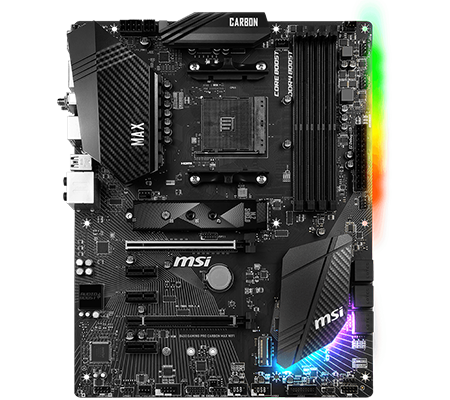

MSI B450 GAMING PRO CARBON MAX WIFI Motherboard

b450 gaming pro carbon

INSPIRED BY THE CURVE AND SHAPE OF SUPER CARSGet serious gaming performance with the B450 GAMING PRO CARBON MAX WIFI and its arsenal of game enhancing abilities. GAMING LAN, Turbo M.2, optimized gaming audio and great cooling with a gaming theme are just a few of many empowering aspects. The B450 GAMING PRO CARBON MAX WIFI makes use of the striking design combined with PCI-e lane armouring whilst boosts to other areas such as the DDR4 memory power help push this motherboard above others and allow speeds of up to 4133(OC) MHz. Plus, you can be sure it will last thanks to the high-quality components used in construction.

Please note: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4.

AMD B450Chipset

AM4CPU Socket

ATXForm Factor

Convenient System Assembly

smart design

TROUBLESHOOTING DIY FRIENDLY DESIGN MSI motherboards offer a wealth of convenient and smart designs, such as a convenient pin-header keep out zone, friendly SATA & USB locations, and more. This allows DIY users to design the perfect gaming rig. Utilise countless system tuning and troubleshooting tools to push your system to new heights. Cooling your PC is essential for reliable performance, so MSI motherboards feature an excellent power design with a solid and heavy heatsink, with enough fan headers so you can control your system any way you need.

Optimized Layout for Perfect Stability and Performance

memory

UNMATCHED MEMORY PERFORMANCE Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.

A Motherboard Designed for Compatibility in Mind

compatibility

Easier to Pick compatible Products MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products.

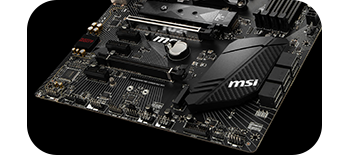

Take your System to the Next Level

storage

FAST AND FUTURE-READY STORAGE MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Offering a Wide Variety of Fast Device Options

usb

MAXIMIZE YOUR USB DEVICE PERFORMANCE Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s.

Play with the Fastest Speeds

msi lan

GAIN AN IN-GAME ADVANTAGE Discover enhanced audio and advanced LAN networking capabilities that turn any gaming experience into a super immersive one.

Dominate the Battlefield with Lag-Free Performance

connectivity

INCREDIBLE CONNECTIVITY Easily crush your enemies during battle with MSI GAMING LAN. Built with high-quality components, MSI GAMING LAN is tuned to deliver the best online gaming experience with zero lag.

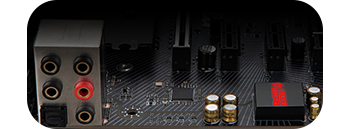

Surround yourself in Beautiful Sound

audio

STUNNING AUDIO QUALITY MSI motherboards deliver the highest sound quality through the use of premium quality audio components to offer the most immersive sound experience when gaming. Enjoy breathtaking, game-changing sound.

Made with Aesthetics in Mind

design

EXHILARATING AND INSPIRING Every MSI motherboard is built based on a specific topic in order to match different tastes and styles. Also, MSI adopts a modern style to design the heatsink through huge surfaces and sleek, simple cuts to make it look powerful and new. Combined with neutral colours, such as black, grey, and silver, MSI motherboards provide a perfect fit for different RGB LED effects. Inspired by supercars, the GAMING PRO CARBON offers a distinctive look and feel and continues the tradition of colourful customization with MSI Mystic Light RGB.

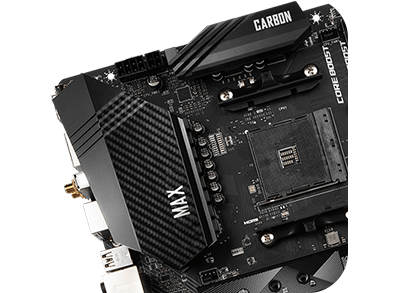

Built on Everlasting Quality

durability

MADE TO LAST THE TEST OF TIME Using only the finest quality components and integrating the latest technological innovations, MSI motherboards deliver the best possible professional experience. The motherboards undergo rigorous quality testing under the most extreme conditions to ensure a super reliable, long-lasting and high performance motherboards.

Fine Tune your Performance to Suit your Needs

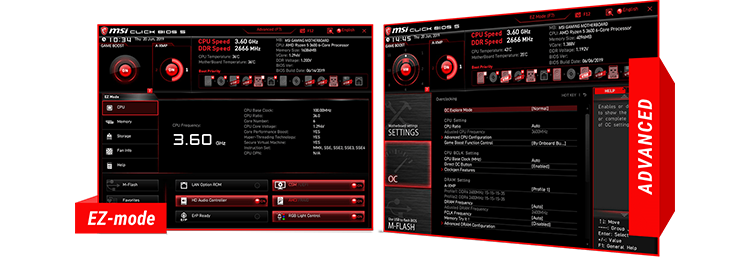

PERFORMANCE ENHANCING APPS Complete your high performance experience with an array of performance enhancing software from MSI. From an easy to use BIOS to impressive live stream tools, get the most out of your motherboard. Get more from an impressive BIOS design that's designed to be easy to use. Fine-tune your MSI motherboard for gaming performance, efficiency, or overclocking world records.

bios

GAME BOOSTQuickly overclock your CPU with a single button for more performance.

A-XMPChoose from a preset A-XMP profile and automatically overclock compatible DDR memory.

M-FLASHConveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITORGet immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

TOTAL FAN CONTROLMonitor and manage fan speeds for system and CPU fans.

SECURE ERASE+Wipe an SSD with an optimized formatting algorithm and enjoy an SSD with maxed free space.

MEMORY TRY ITGet extreme speed out of your system memory and get more performance.

M.2 GenieQuickly and easily set up a RAID 0 array for M.2 and U.2 SSDs with this automated utility.

SEARCH & FAVORITESA permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

Specifications
Core Specifications
Edition GAMING PRO CARBON MAX WIFI
Form Factor ATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3066(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen2
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 2-pin LED power input
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 5050 RGB LED 12V connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x CORSAIR connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x Rainbow 5050 RGB LED 5V connector (JRAINBOW1)
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9260 (ac WiFi, BT5)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x Wi-Fi antenna connector holes
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108495
Model Number B450 GAMING PRO CARBON MAX WIFI
GTIN 4719072716158
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
