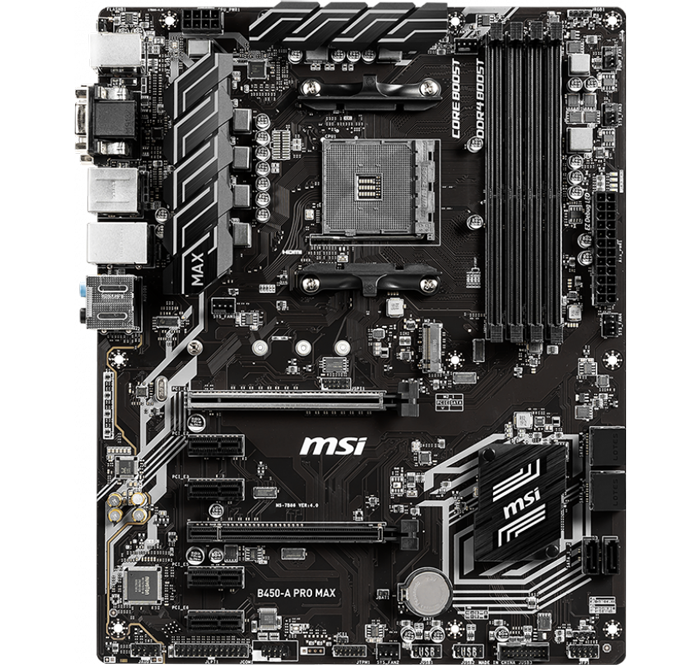

MSI AMD Ryzen B450-A PRO MAX AM4 ATX Motherboard

MSI B450-A PRO MAX, AMD B450, S AM4, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek GbE, USB 3.2 Gen2 A, ATX

Thumbnail 1 : MSI AMD Ryzen B450-A PRO MAX AM4 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen B450-A PRO MAX AM4 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen B450-A PRO MAX AM4 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen B450-A PRO MAX AM4 ATX Motherboard
Scan code: LN100732 Manufacturer code: B450-A PRO MAX
There are 6 people viewing this product
Was: £88.99
£74.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Showcase your Skills with the MSI B450 A-PRO MAX

b450 MAX

MAX GAMING power ATX Motherboard from MSIGet serious gaming performance with the B450 A-PRO MAX and its arsenal of game enhancing abilities. GAMING LAN, Turbo M.2, optimized gaming audio and great cooling with a gaming theme are just a few of many empowering aspects. The B450 A-PRO max makes use of the striking design combined with PCI-e lane armouring whilst boosts to other areas such as the DDR4 memory power help push this motherboard above others and allow speeds of up to 4133(OC) MHz. Plus, you can be sure it will last thanks to the high-quality components used in construction.

Please note: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4.

AMD B450Chipset

AM4CPU Socket

ATXForm Factor

Keep Working and Gaming Through Intense Workloads

b450 cooling

STAY COOL AND SUSTAIN PERFORMANCE Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

Convenient System Assembly

RGB

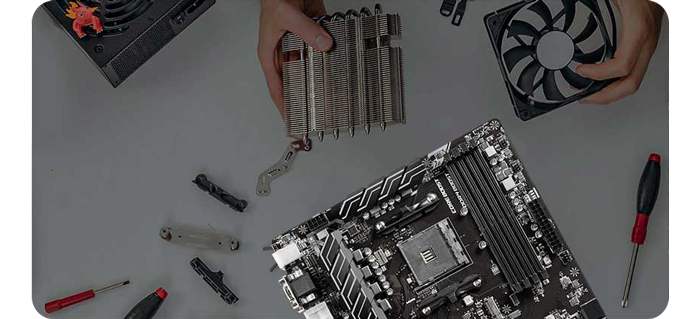

TROUBLESHOOTING FRIENDLY DESIGN MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.

Optimized Layout for Perfect Stability and Performance

back

UNMATCHED MEMORY PERFORMANCE Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. you never have to worry about your system crashing during games with MSI DDR4 BOOST.

A Motherboard Designed for Compatibility in Mind

RGB

Easier to Pick compatible Products MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products.

Packed and Easy to Use BIOS Setup

RGB

PERFORMANCE ENHANCING APPS Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.

Take your System to the Next Level

back

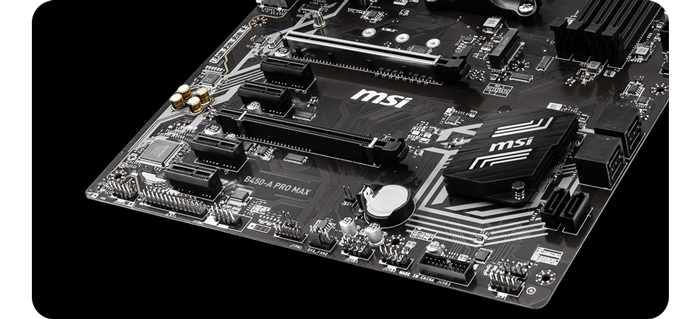

FAST AND FUTURE-READY STORAGE MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Offering a Wide Variety of Fast Device Options

back

MAXIMIZE YOUR USB DEVICE PERFORMANCE Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s.

Control Your System with MSI Dragon Center

Easy to Access Software to Monitor your system The exclusive and brand-new UI merges all the MSI software functions into one specific application – MSI Dragon Center. Not only integrates all the MSI software functions, but also sync all the MSI desktop products to work together, providing the best user experience. No more messy programs or ICONs, just one click and you can enjoy all the functions in Dragon Center.

Gaming Mode MSI Gaming Mode provides the most suitable setting for your whole gaming system, bring you the best gaming experience with one click.

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need.

OC Setting Interface With an intuitive interface, OC Setting allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.

Mystic Light Control Create your own colorful masterpiece with ease. Make your PC look and feel brand new with any color you want with just a few clicks.

Specifications
Core Specifications
Edition B450-A PRO MAX
Form Factor ATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3066(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 4 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 5050 RGB LED 12V connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 3 x Audio I/O
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x Flash BIOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN100732
Model Number B450-A PRO MAX
GTIN 4719072665975
