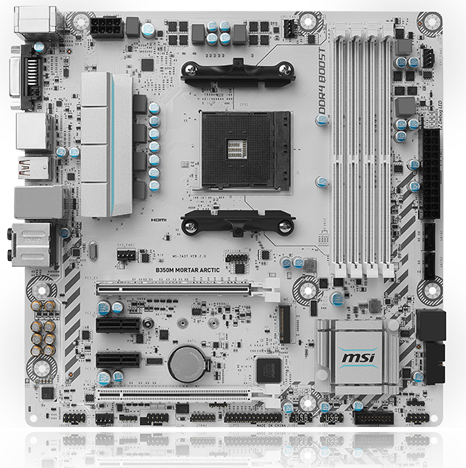

MSI AMD AM4 Ryzen B350M MORTAR ARCTIC Micro ATX Motherboard

MSI B350M MORTAR ARCTIC, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way CrossFire, GbE, USB 3.1 Gen1 A+C, MicroATX

MSI
Scan code: LN79803 Manufacturer code: B350M MORTAR ARCTIC Request call
£88.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

Micro ATX Motherboard from MSI. MORTAR ARCTIC B350

AM4 MSI Motherboard
Gaming Motherboard for conquering the battlefield!

MORTAR ARCTIC is a powerful ARSENAL GAMING motherboard from MSI. This B350M runs on Ryzen power and comes packed with an array of intuitive and next-generation tools. Built for a refined gaming experience the MORTAR ARCTIC is a Micro ATX form factor ensuring it fits into any PC. Its style is enhanced through the use of Mystic Light technology while it’s structure is backed up and protected via Steel Armor. Besides all the impressive embedded tech the B350M MORTAR ARCTIC connections boast both Type-A and Type-C ports, GAMING LAN, Gaming Device port and golden audio jacks!

"We are proud to be a part of the MSI GAMING testing program to help give gamers the best hardware to play games at the highest level."
- Olof 'olofmeister' Kajbjer, Fnatic CS:GO Team

AMD B350
Chipset

AM4
CPU Socket

Micro ATX
Form Factor

LED Lighting

AM4 MSI Motherboard Feature
Customize your Gaming PC

Connect external RGB strips and sync other RGB capable gear to set up your own color scheme using only 1 application: Mystic Light Sync. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style. Feel like using a different color? Completely change the look of your system in 1 second!

Works with certified Mystic Light Sync products

Compatible Mystic Light Brands

Reactive Fan Tech

AM4 MSI Motherboard Feature
MSI Board and Command Center

MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent.

Optimized SSD Storage

AM4 MSI Motherboard Feature
Exceptional X-Boost tech enhancments

When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.

Gaming Boosts with MSI B350

AM4 MSI Motherboard Feature
Unique MSI gaming advantages

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

VR Ready B350 GAMING PRO

VR Ready
Immersive Virtual Reality Power

Want the best of the best VR experience without any compromise? Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid, smooth and realistic experience in which content truly comes alive.

B350 Pro Gaming Audio

  • Isolated Audio with LED Line LED Line
  • Chemi-Con Audio capacitors Audio Capacitors
amplify your in-game audio with audio boost 4

Like a dedicated sound card Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Game with Low Latency

AM4 MSI Motherboard Feature
Dominate the Game with MSI LAN

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

DDR4 Memory Potential

DDR4 Memory Performance
Unmatched Signal Purity & Compatibility

Memory Signal Purity - MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Best Compatibility - Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

USB Type-C Boosting

AM4 MSI Motherboard Feature
Maximize your USB Device performance

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

High-End Components

AM4 MSI Motherboard Feature
Built on everlasting quality

Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

Specifications
Core Specifications
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B350
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort 1.2
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 3 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
SCAN/MSI
Telephone:
0871 472 4747
Customers also bought
Reviews
MSI B350M MORTAR ARCTIC, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way CrossFire, GbE, USB 3.1 Gen1 A+C, MicroATX is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from DOES NOT WORK WITH RYZEN 5 WITHOUT BIOS UPDATE Bought this board assuming that the Ryzen 5 I bought with it would work flawlessly out of the box,... oh how wrong I was! I ended up buying a Ryzen 7 as that's all the factory BIOS supports out of the box, was told by scan they would not refund me for my Ryzen 5 as i'd installed it into the mobo (which makes no sense, thanks for letting me waste £190 scan!!) Best part about it? The £300 ryzen 7 I bought that IS SUPPOSED TO WORK WITH THIS BOARD, does not work... I have literally been pulling my hair out over this, had to list my Ryzen 5 on ebay! Starting to think the mobo I recieved is faulty as the red ez debug CPU light comes on every time, i've tried so many fixes!
Date published: 2017-05-28
  • y_2017, m_11, d_17, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_79803, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Which bios do these have

Hello I was wondering if these ship with the updated bios yet that doesn't conflict with ryzen 5?
Asked by: Cloudestro
Hello, Unfortunately we are unable to confirm the BIOS version as they are not specified to us. At this time however it is still likely you would need a BIOS update before this would be functional with Ryzen 5. Regards,
Answered by: JackB
Date published: 2017-07-26
