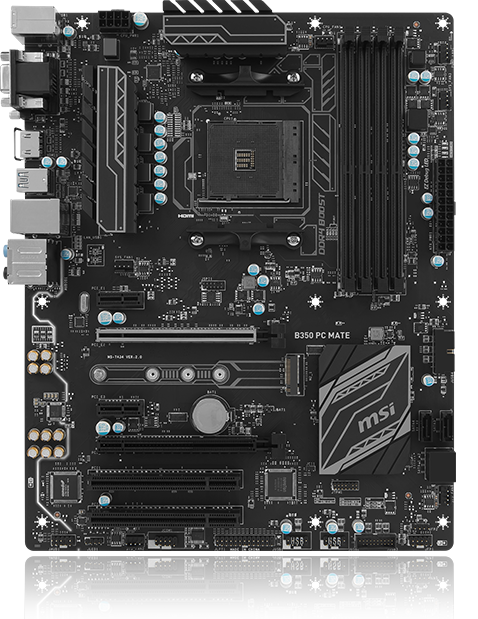

MSI AMD AM4 Ryzen B350 PC MATE ATX Motherboard

MSI B350 PC MATE, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way CrossFire, GbE, USB 3.1 Gen1 A+C, ATX

MSI
Scan code: LN79802 Manufacturer code: B350 PC MATE Request call
£75.49Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range

There are 6 people viewing this product

Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

B350 MSI Motherboard. PC MATE Ryzen Socket

AM4 MSI Motherboard
Cutting-edge business solutions from MSI

As part of MSI PRO SERIES motherboards you can be sure the B350 PC MATE is capable of clever business solutions and produces top-end performance. It comes packed with cutting-edge technologies such as Turbo M.2, DDR4 Boost and Type-C ports. Plus, this B350 Ryzen motherboard boasts a variety of defences to help with protection such as double ESD protection and PCI-E Steel Armor.

AMD B350
Chipset

AM4
CPU Socket

ATX
Form Factor

Clever Fan Headers

AM4 MSI Motherboard Feature

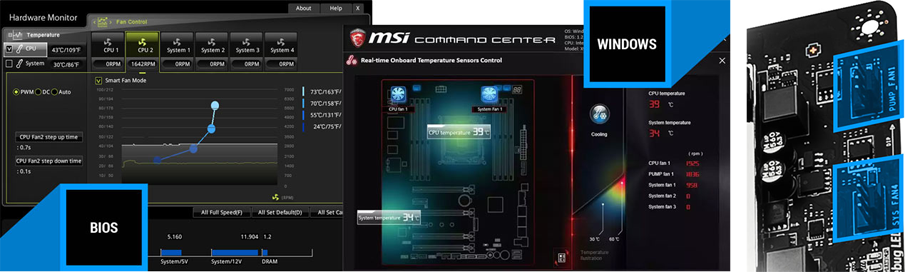

Complete PC MATE control command center

MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent.

*Image for display purpose only

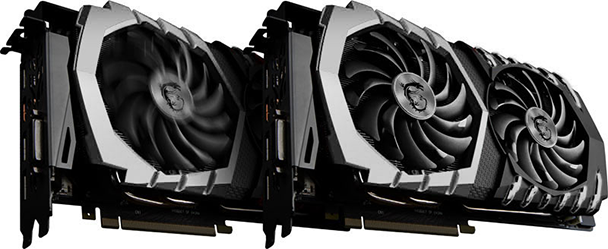

Multiple GPU support

AM4 MSI Motherboard Feature
Advancing your graphics levels!

Professionals and enthusiasts strive for the best performance to make their systems faster. MSI motherboards fully support multi GPU technologies. Optimal PCI slot placement allows for the best fit and usage conditions to ensure the best thermal conditions.

Turbo B350 M.2 & X-Boost

AM4 MSI Motherboard Feature
Extreme storage performance

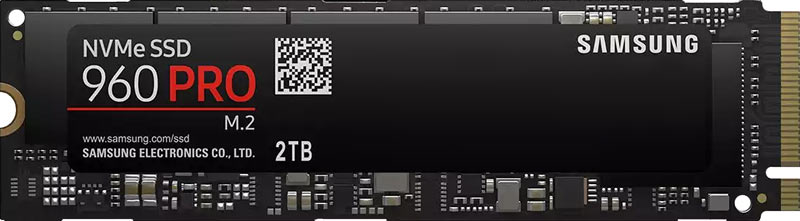

M.2: Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection!

X-Boost: When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.

Professional Gaming Audio

  • Isolated Audio with LED Line LED Line
  • Chemi-Con Audio capacitors Audio Capacitors
amplify your in-game audio with audio boost

Like a dedicated sound card Audio Boost offers a HD audio processor, a dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest HI-FI audio signal.

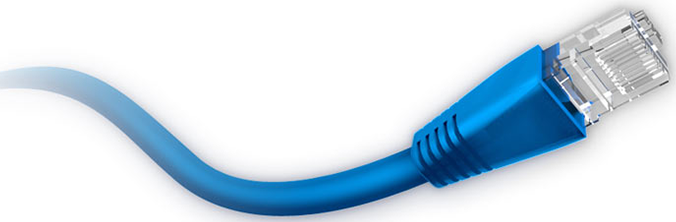

Gigabit LAN

AM4 MSI Motherboard Feature
Professional networking with bandwidth management

The high quality Gigabit LAN adapter is optimized for professional and multimedia use with outstanding performance to deliver a secure, stable and fast network connection.

DDR4 Memory Performance

DDR4 Memory Performance

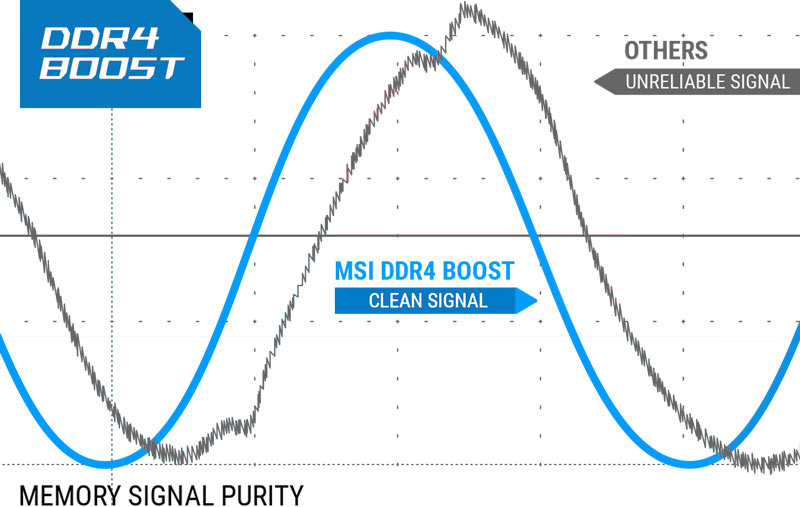

Unmatched Signal Purity & Compatibility

Memory Signal Purity - MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Best Compatibility - Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during heavy workloads.

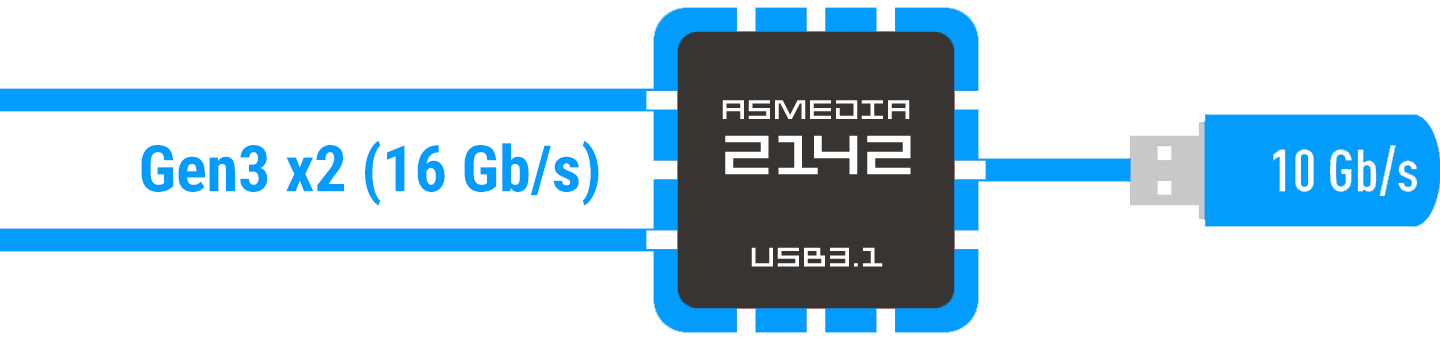

Lightning USB 3.1

DDR4 Memory Performance DDR4 Memory Performance
USB Device with maximized performance

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

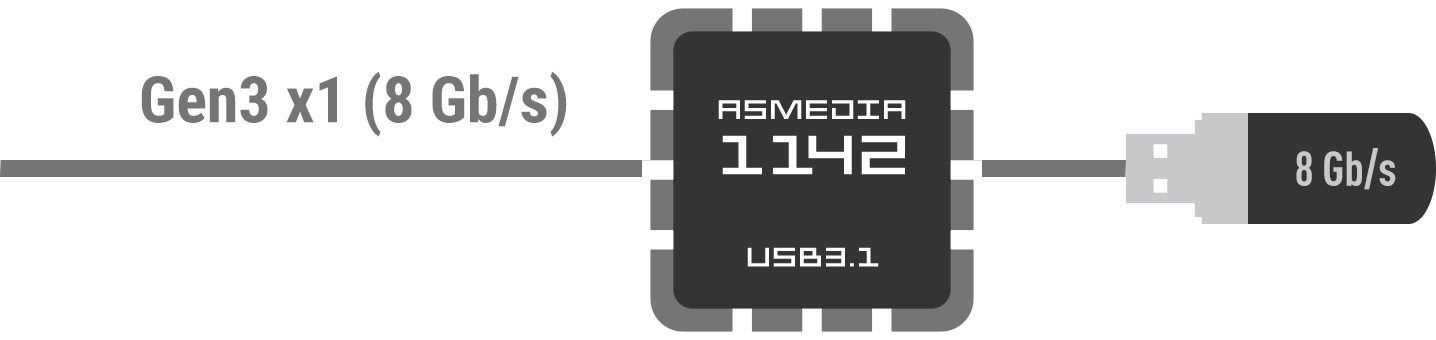

MSI Lightning USB see in BLUE other USB in GREY.

Premium B350 Quality Protection

AM4 MSI Motherboard Feature
Built on everlasting quality

Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

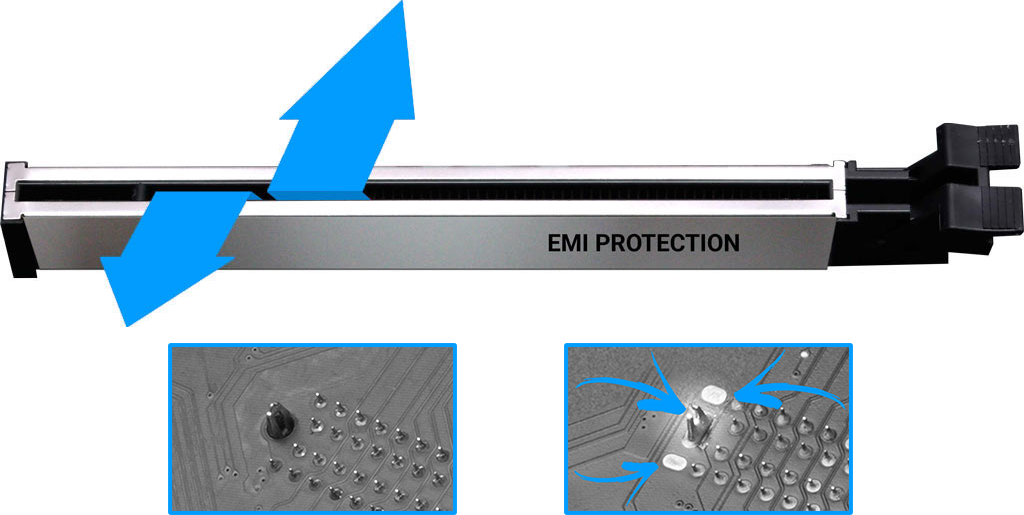

Top: Reinforced Steel PCIe Slot, protects against EMI
Left: Other none strengthening design
Right: MSI Steel Armor, reinforced, heavy soldered connections

Specifications
Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD B350
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 2 x PCI
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 3 x Audio I/O
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 3 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
