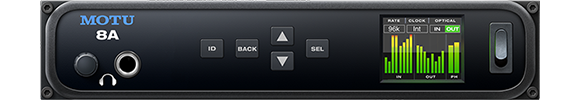

MOTU 8A Thunderbolt / USB3 Audio Interface (Mac/Windows)

MOTU 8A Thunderbolt / USB3 Audio Interface, 8x8 Analogue I/O, AVB Networking, ESS Sabre32 Ultra DAC, 8 Channel ADAT

MOTU
Scan code: LN78321 Manufacturer code: 8A Request call
£798.00
Pay on Scan Finance with a 10% deposit from just £19.93 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD On 12th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview
The MOTU 8A features the same award-winning analogue quality and performance as the flagship 16A interface, packing all this in to a mobile half-rack enclosure. It absolutely shines with the renowned ESS Sabre32 Ultra DAC technology, 8x8 analogue I/O and 8 Channel ADAT with the performance of MOTU's low-latency driver performance.


34 simultaneous audio channels
You get 8 x 8 balanced analog, 8-channel ADAT optical and independent headphone out for 16 inputs and 18 outputs. The optical ports also support stereo TOSLink (optical S/PDIF).

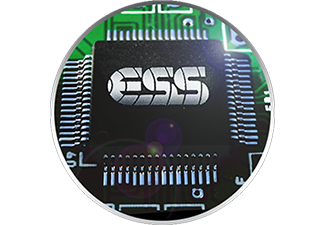

Superb analog audio quality and high-end converters
Performance suitable for the most demanding situations
Renowned ESS Sabre32 Ultra™ DAC technology delivers 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 16A.


Ultra-low latency and proven, high-performance MOTU drivers
The best possible latency performance
The 8A delivers round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt™ — and an astonishing 1.9 ms over USB — with high-performance DAW hosts.


Mobile operation and universal connectivity
Ultimate portability and flexibility

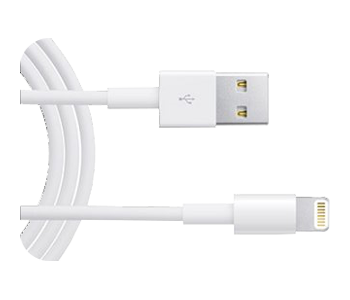

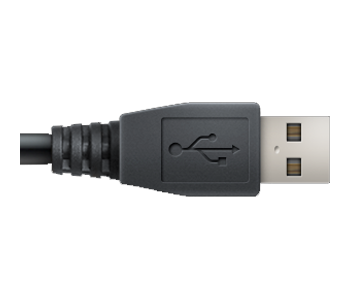

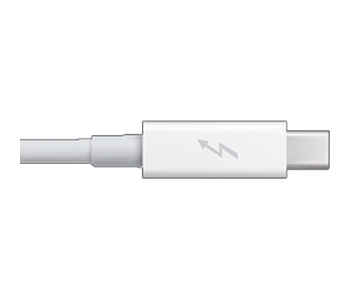

Connects to your computer with Thunderbolt™, super-speed USB 3.0 or AVB/TSN Ethernet — with support for up to 256 audio channels (128 in and 128 out). USB audio class-compliant firmware and high-performance, industry-standard drivers work with any audio apps. Connects to your iPad™ with a standard camera connection kit (adapter).

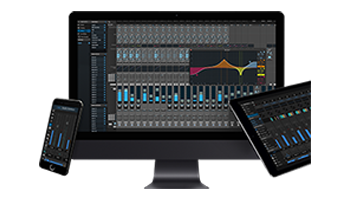

DSP mixing and effects processing
Console-style mixing with 48 channels and 12 busses
The 8A's full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.

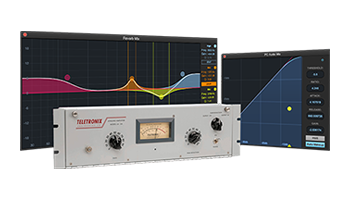

Modeled vintage effects processing
Vintage processing with 32-bit float precision
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs. The 8A's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

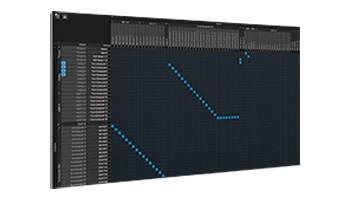

Flexible matrix routing and splitting
Route your audio anywhere with one-click ease
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the audio network.

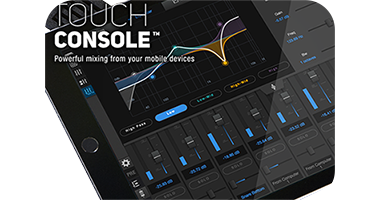

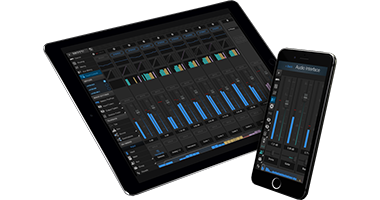

Web app control from any device
Control everything from your laptop, tablet and smartphone
The software that you use to control the 8A doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 8A's on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform — Mac, Windows, Linux, iOS, Android — as long as it shares the same network.


Stand-alone operation with wireless control
No computer or laptop needed
Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.


System expansion
Expand your system with more I/O and Wi-Fi control

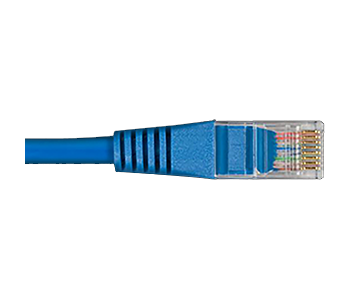

Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable.


Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).
Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.


Comprehensive metering
View all I/O activity at a glance — in full color
The full-color LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.


AudioDesk
Powerful audio workstation technology for Mac and Windows
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
Features Superb analog audio quality and high-end converters
Renowned ESS Sabre32 Ultra™ DAC technology delivers 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 16A.

Ultra-low latency and proven, high-performance MOTU drivers
Round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt™ with high-performance DAW hosts.

Mobile operation and universal connectivity
Connects to your computer with Thunderbolt™, super-speed USB 3.0 or AVB/TSN Ethernet for up to 256 audio channels (128 in and 128 out). Class-compliant firmware and Industry standard drivers work with any audio apps. Connects to iPad™ with a standard camera connection kit (adapter).

34 simultaneous audio channels
8 x 8 balanced analog, 8-channel ADAT optical and independent phone out for 16 inputs and 18 outputs.

DSP mixing and effects processing
Flexible 48-input digital mixer with 7 stereo aux busses, 3 group sends, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression.

32-bit floating point processing
The 8A's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.

Flexible matrix routing and splitting
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the audio network.

Stand-alone operation with wireless control
Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

Web app control from any device
Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.

System expansion
Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).

AVB/TSN audio networking
Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

Optical I/O
Connect outboard digital processors, digital mixers or other gear. 8 channels of ADAT at 44.1/48 kHz, 4 channels of SMUX at 88.2/96 kHz or stereo TOSLink (optical S/PDIF) up to 96 kHz.

Comprehensive metering
The full-color LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
Specifications
Computer Interface Type
  • Thunderbolt
  • USB 3
Analogue Inputs (Total) 8
Analogue Outputs (Total) 8
Connections (Input)
  • 8 x 1/4" TRS jack (Balanced)
  • 1 x Optical Toslink
Mic Preamps (Max) 0
Instrument Inputs (Max) 8
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range 123 dB
Connections (Output)
  • 8 x 1/4" TRS jack (Balanced)
  • 1 x 1/4" TRS stereo headphone
  • 1 x AVB Ethernet
  • 1 x Optical Toslink
Dimensions (mm) 22 x 4.5 x 17.75 cm WxHxD
DSP Processing Yes
Misc. Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
MOTU
