MOTU - '24 AO' USB / AVB / iOS Audio Interface

MOTU - '24 AO' USB / AVB / iOS Interface, 192 kHz. 24 Bit, 0 Mic Preamps, iPad Compatible

Thumbnail 1 : MOTU - '24 AO' USB / AVB / iOS Audio Interface MOTU - '24 AO' USB / AVB / iOS Audio Interface : video thumbnail 1
Scan code: LN62125 Manufacturer code: 24Ao
3xs Approved
£882.00Stock arrives 3-5 days from time of order
ETA 3-5 days
FREE DELIVERY ON YOUR ENTIRE BASKET
From £30.14 / month (APR 14.9%)
Monthly Payment: £79.18
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £882.00
Total inc. interest: £950.14
Monthly Payment: £42.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £882.00
Total inc. interest: £1,016.02
Monthly Payment: £30.14
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £882.00
Total inc. interest: £1,084.71
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £22.03 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

USB / AVB / iOS Audio Interface
MOTU - '24 AO'

motu 24ao

Premium Audio ExperienceThe MOTU 24 AO features AVB technology, allowing you to share high-quality audio with low latency and DSP mixing capabilities over any standard network. The design of the 24 AO was focused mainly on line-level output, making the 24 analog out channels perfect for sending audio to a front of house mixer, studio processing set up or analog summing amplifier. The built-in mixer comes with several options for DSP processing, routing and summing choices. The MOTU 24 AO also fits into any audio set up with its high-speed USB 2.0 connectivity and extra 24 channels of ADAT optical I/O.

Amazing Features • 32-bit floating point DSP-driven digital mixer with EQ, dynamics, and effects provides latency-free routing
• AVB audio networking allows yout to easily expand your system and additional AVB equipped audio interfaces
• 24 high-quality analog outputs are available on both DB-25 D-sub connectors and Phoenix connectors
• 24-channels of ADAT optical digital I/O lets you expand your system with extra equipment
• A versatile 24-in/48-out network audio interface for studio and live sound applications

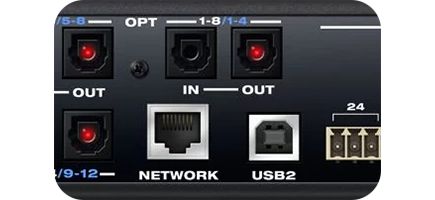

Packed With High-Quality Connections

motu 24ao

Perfect Your Signal PathThe MOTU 24 A0 makes connecting up to 24 analog line channels plain and simple, no matter if it’s using DB-25 D-subs or Phoenix inputs. You also get three pairs of ADAT optical ports built in, giving you the option of adding an extra 24 channels of digital I/O via USB 2.0 or AVB network.

With up to 123dB of dynamic range the 24 AO is the ideal system for going before your analog summing mixer, live mixing desk or studio rack in your signal chain, or any alternative audio signal chains you may have.

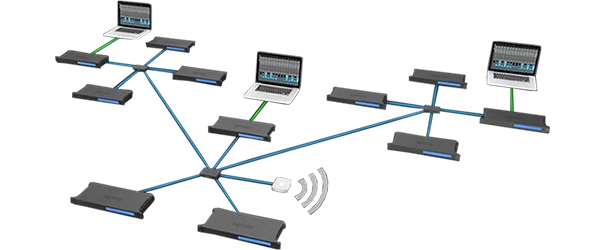

Expand With AVB Network

motu 24ao

Versatile ConnectivityUsing the Ethernet connection, you can link additional MOTU audio interfaces with AVB technology. Either by connecting using a standard Ethernet cable as part of the audio network or by using an additional MOTU AVB setting.

An Ethernet cable link is just a case of directly connecting your other AVB device to your first one. If you’re connecting using MOTU AVB Switches, you can connect up to five units which gives you a possibility of linking hundreds of I/O over a wide area. No latency will be an issue as its all connected using a standard Cat-5e Ethernet cable.

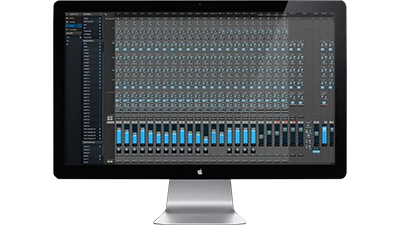

The Power Of DSP

motu 24ao

EQ, Compression & EffectsThe onboard DSP mixer found on the MOTU 24 AO gives you even more useful functionality, with up to 48 inputs and 12 stereo busses that allow you to create extensive routing set ups separate from your laptop or PC.

When connecting a wireless router to the 24 AO you gain access to all the internal mixing capabilities, such as processing and effects, all accessible using an app on an iOS device, which allows your interface to work as a standalone mixer. No matter if you’re in the studio or in a live situation, you’ll be sure to make use of the professional DSP EQ, gate, compression and reverb effects.

The Tech Spec

Features Specification
Computer Connectivity USB 2.0
Form Factor Rackmount
Simultaneous I/O 24 x 48
Analog Outputs 3 x DB-25, 6 x Phoenix
Digital Inputs 3 x Optical (ADAT)
Digital Outputs 3 x Optical (ADAT)
USB 1 x Type B
Data I/O 1 x Ethernet
Clock I/O In, Out/Thru
OS Requirements - Mac iOS/iPad compatible (with camera connection kit)
OS Requirements - PC USB 2.0 audio class compliant hosts
Rack Spaces 1U
Dimensions Height: 1.75"
Width: 19"
Specifications
Computer Interface Type USB 2
Connections (Input)
  • 3 x ADAT Optical
  • 1 x Word Clock (BNC)
Mic Preamps (Max) 0
Instrument Inputs (Max) 0
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible Yes
Connections (Output)
  • 6 x 12-pin Phoenix
  • 3 x ADAT Optical
  • 1 x AVB Ethernet
  • 3 x DB-25 / 25 Pin D-Sub - Analogue
  • 1 x Word Clock (BNC)
Dimensions (mm)
DSP Processing Yes
Misc. Notes
Additional Information
Scan Code LN62125
Model Number 24Ao
GTIN 839128005952
