Mixars - Quattro 4-Channel Digital Mixer for SERATO DJ
Mixars - Quattro 4-Channel Professional Digital Mixer for SERATO DJ, 16 RGB Pads, Dual USB Inputs, 2 Mic Inputs
Scan code:
LN126525
Manufacturer code:
140101008
Order now and receive it
by Thursday, 7th July
From
£23.61
/ month (APR 5.9%)
or
0%
for 4 months
With a 10% deposit from just
£19.46
/ month (APR 15.9%)
Delivery Options
- By DPD On 7th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
4-Channel Digital Mixer for SERATO DJ
Mixars - Quattro
Mix Like A Pro!The Mixars QUATTRO is a Professional 4-channel mixer designed for the release of SERATO DJ, featuring dual USB audio connection, 16 RGB control pads and effect control section. The QUATTRO is a fully fleged mixer made to dominate the club scene with incredible audio quality fully integrated with the world-renowned software, SERATO DJ.
This mixer offers the best layout, control, and reliability thanks to its 16 RGB pads, four effects (Filter, Noise, Gate, Crush) for each channel, FX section with 14 additional effects, send/return, and dedicated sampler volume. With the best high-quality audio output that ensuries superb sound quality in a club, in a small venue or at home. The dual USB ports enable you to hook up two laptops for easy changeover. It simultaneously supports control-signal and playback for four DVS decks in SERATO DJ.
4Channels
20 Hz - 20 kHzFrequency Response
16RGB Pads
at a glance
• 4-Channel Digital Mixer for SERATO DJ
• 16 RGB PADS with Hot Cue and Sampler control
• Dedicated 4 high-quality effects for each channel
• Dual USB audio connections
• 2 Microphone Inputs
The Tech Spec
| Features | Specification | Inputs | Channel 1: 4 x RCA (2 x Serato phono/line and 2 x line) Channel 2: 4 x RCA (2 x Serato phono/line and 2 x line) Channel 3: 4 x RCA (2 x Serato phono/line and 2 x line) Channel 4: 4 x RCA (2 x Serato phono/line and 2 x line) Mic 1: Combo XLR-1/4" / 6.35 mm TRS Mic 2: 1/4" / 6.35 mm TRS Return: 2 x 1/4" / 6.35 mm TRS |
|---|---|
| Outputs | Master 1: 2 x XLR Master 2: 2 x RCA Record: 2 x RCA Booth: 2 x 1/4" / 6.35 mm TRS Send: 2 x 1/4" / 6.35 mm TRS Headphones: 1 x 1/4" / 6.35 mm and 1 x 1/8" / 3.5 mm Input and Output Impedance Input/Output Impedance and Sensitivity (1 kHz, EQ Flat, Maximum Gain) |
| Input Impedance and Reference Input Level | LINE: 47 kOhms / -14 dBV (200 mV) PHONO: 47 kOhms / -50 dBV (3.16 mV) MIC: 5 kOhms / -54 dBV (2 mV) RETURN: 47 kOhms / -20 dBV (100 mV) USB: -12 dBFS Output Impedance and Reference Out Level: Master (XLR): 600 Ohms / 0 dBV (1 V) ±2 dB (signal to signal 600 Ohms) Booth: 600 Ohms / 0 dBV (1 V) ±2 dB (signal to signal 600 Ohms) Master (RCA): 1 kOhm / 0 dBV (1 V) ±1 dB (load = 100 kOhm) Record: 1 kOhm / -9 dBV (355 mV) ±1 dB (load = 100 kOhm) Send: 1 kOhm / -14 dBV (200 mV) ±1 dB (load = 100 kOhm) Phone: 32 Ohms / -3 dBV (708 mV) ±1 dB (load = 32 ohms) |
| Maximum Gain | Maximum Gain: (EQ Flat, Reference Input Level, Maximum Gain) Master (XLR) / Booth Output: Line: +14 dB (at 600 Ohms) ±1 dB Phono: +50 dB (at 600 Ohms) ±2 dB Mic: +54 dB (at 600 Ohms) ±2 dB Return: +20 dB (at 600 Ohms) ±1 dB Master (RCA) Output: Line: +14 dB (at 100 kOhms) ±1 dB Phono: +50 dB (at 100 kOhms) ±2 dB Mic: +54 dB (at 100 kOhms) ±2 dB Return: +20 dB (at 600 kOhms) ±1 dB Record Output: Line: +5 dB (at 100 kOhms) ±1 dB Phono: +41 dB (at 100 kOhms) ±2 dB Mic: +45 dB (at 100 kOhms) ±2 dB Return: +11 dB (at 600 Ohms) ±1 dB Send Output: Line: +0 dB (at 100 kOhms) ±1 dB Phono: +36 dB (at 100 kOhms) ±2 dB Mic: +40 dB (at 100 kOhms) ±2 dB |
| Maximum Input | (EQ-flat, Mic, Trim, Master at 9 o'clock, adjust input 1 kHz level to output level less than 1% THD with A-weight/20 kHz LPF) Line: > +15 dBV, THD < 1% Return: > +9 dBV THD < 1% Phono: > -21 dBV THD < 1% Mic: > -25 dBV THD < 1% |
| Maximum Output | Line Input, EQ-flat, Mic, Trim, Master at Max, adjust input 1 kHz level to output level less than 1% THD with A-weighted / 20 kHz LPF) Master (XLR): > +17 dBV, load = 600 Ohms, THD < 1% Booth: > +17 dBV, load = 600 Ohms, THD<1% Master (RCA): > +17 dBV, load = 100 kOhms, THD < 1% Record: > +8 dBV, load = 100 kOhms, THD < 1% Send: > +3 dBV, load = 100 kOhms, THD < 1% Phone: > +4 dBV, load = 32 Ohms, THD < 1% |
| Frequency Response | EQ-flat, Phono at -60 dB / other reference input level, Mic, Trim, Master at maximum Line: 20 Hz to 20 kHz +2/-3 dB Mic: 20 Hz to 20 kHz +2/-3 dB Phono: 20 Hz to 20 kHz +2/-3 dB USB: 20 Hz to 20 kHz (48 kHz/24-bit-1 kHz, 20 Hz to 20 kHz .WAV) +2/-3 dB |
| THD + N | (1 kHz input, Mic, Trim, and Master at 12 O'clock, with A-weighted / 20 kHz LPF) Line: 0.01% at 0 dB input Return: 0.01% at 0 dB input Phono: 0.02% at -36 dB input Mic: 0.03% at -40 dB input |
| S/N Ratio | (1 kHz input, Mic/Aux, Trim, Master at 12 O'clock, with A-weighted / 20 kHz LPF, input short when no signal) Line: 81 dB at 0 dB input Return: 81 dB at 0 dB input Phono: 81 dB at -36 dB input Mic: 74 dB at -40 dB input |
| Crosstalk | (1 kHz input, Mic/Aux, Trim, Master at 12 O'clock, with A-weighted / 20 kHz LPF, input short when no signal) Line: > 81 dB at each channel input at 0 dB input Phono: > 81 dB at each channel input at -36 dB input |
| Channel Separation (R/L) | (1 kHz input, Mic/Aux, Trim, Master at 12 O'clock, with A-weighted / 20 kHz LPF, input short when no signal) Line: > 81 dB between L and R channel at 0 dB input Phono: > 81 dB between L and R channel at -36 dB input |
| Equalizer | (Reference input level, Mic/Aux, Trim Master at Max with 20 kHz LPF) Line: Low Band: 70 Hz, +12 dB / -25 dB (±1 dB) Middle Band: 1 kHz, +12 dB / -25 dB (±1 dB) High Band: 13 kHz, +12 dB / -25 dB (±1 dB) Mic: Hi: 10 kHz, -28 dB (±2 dB) Low: 100 Hz, -28 dB (±2 dB) |
| Channel Fader Kill | (0 dB 1 kHz reference input level, trim, master, at maximum with A-weighted / 20 kHz LPF) Channel Fader: > 91 dB at 1 kHz Crossfader: > 91 dB at 1 kHz |
| Sensitivity Difference Between L & R | Level difference L&R (1 kHz, reference input level, Trim, Master at maximum with A-weighted / 20 kHz LPF) Line: ±1 dB Phono: ±1.5 dB |
| Power | Power Supply: 100 to 240 VAC, 50/60 Hz Consumption: 20 W |
| Included Accessories | USB cable & power cord |
| Dimensions (W x D x H) | 12.6 x 14.3 x 4.2" / 320.0 x 362.0 x 107.0 mm |
| Weight | 11.8 lb / 5.4 kg |

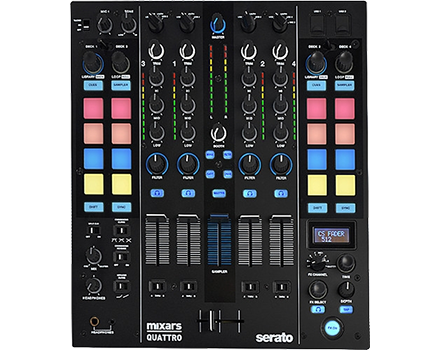

Mixars - Quattro 4-Channel Digital Mixer for SERATO DJ
