2-Channel Battle-Style Mixer with Serato DJ Integration

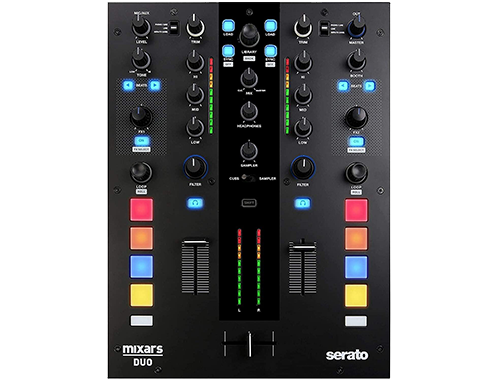

Mixars - DUO MKII
Official Serato mixer
Mixars’ DUO MKII is a 2-channel battle-styled mixer complete with full Serato DJ integration. This intuitive mixer sports 8 RBG backlit pads for triggering up to 8 cue points for each deck or the SP-6 sampler whilst the dedicated library enables you to quickly search for and load tracks without ever having to lay hands on your computer. Furthermore, there’s dedicated knobs for controlling Serato DJ's FX on each channel.
The integrated Galileo Essential crossfader was designed in collaboration with Pro X Fade and features the latest in conductive plastic technology with razor-sharp cuts for precise scratching. The Galileo offers reverse, curve adjustment, and cut-in adjustment on the front panel. The 8mm fader stem is designed for extensive scratching without breakage and includes a sloped fader cap for better grip.
The built-in USB hub provides two additional USB 2.0 ports for MIDI controllers and jump drives. The Mixars Duo MKII offers switchable phono/line inputs, mic/aux inputs, XLR and RCA master outputs, 1/4" booth outputs, a 24-bit/96 kHz audio soundcard, and an analog low-/high-pass filter on each channel.
at a glance
• 8 RGB Pads for activating Cue Points or the Sampler
• Galileo crossfader
• Loop and FX controls
• XLR and booth outputs
• 2 Phone and Line inputs
• USB hub
The Tech Spec
| Features | Specification | Input Level and Impedance | 1 kHz Input; Mic/Aux, Trim, Master at maximum Line: 10 kOhms / -14 dBV (200 mV) Phono: 47 kOhms / -50 dBV (3.16 mV) Aux: 10 kOhms / -14 dBV (200 mV) Mic: 5 kOhms / -54 dBV (1.99 mV) (Unbalanced) USB: (N/A) / -3.4 dBV (96 K-782 TK. 16/1 kHz -20 dB) |
|---|---|
| Output Level and Impedance | 1 kHz Input; Mic/Aux, Trim, Master at maximum All: Nominal: ±1 dB; Limited: ±2 dB Master: 1 kOhm / 0 dBV (1 V) Balanced: 600 Ohms / 0 dBV (1 V) Booth: 600 Ohms / 0 dBV (1 V) Phones: 33 Ohms / -3 dBV (708 mV) Record: 1 kOhm / -9 dBV (400 mV) |
| Frequency Response | Reference Input Level, Mic/Aux, Trim, Master at maximum Line: 20 Hz to 20 kHz (Nominal: +1/-1.5 dB, Limited: +2/-3 dB) Aux: 20 Hz to 20 kHz (Nominal: +1/-1.5 dB, Limited: +2/-3 dB) Phono: 20 Hz to 20 kHz (Nominal: +1/-2 dB, Limited: +2/-3 dB RIAA) Mic: 20 Hz to 20 kHz (Nominal: +1/-2 dB, Limited: +2/-3 dB) |
| Maximum Input | Mic/Aux, Trim, Master at 9 o'clock. 1 kHz input level adjusted to output level <1% T.H.D with an A-weighted 20 kHz LPF Line: Nominal: +15 dBV, Limited: +14 dBV Aux: Nominal: +15 dBV, Limited: +14 dBV Phono: Nominal: -21 dBV, Limited: -22 dBV Mic: Nominal: -25 dBV, Limited: -26 dBV |
| Maximum Output | Mic/Aux, Trim, Master at Maximum. 1 kHz input level adjusted to output level <1% T.H.D with an A-weighted 20 kHz LPF Master Unbalanced: Nominal: +17 dBV, Limited: +16 dBV Master Balanced: Nominal: +17 dBV, Limited: +16 dBV Booth Output: Nominal: +17 dBV, Limited: +16 dBV Phones: Nominal: +5 dBV, Limited: +4 dBV |
| S/N Ratio | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal) Line (0 dB Input): Nominal: 86 dB, Limited: 83 dB Phono (-36 dB Input): Nominal: 86 dB, Limited: 83 dB Aux (0 dB Input): Nominal: 86 dB, Limited: 83 dB Mic (-40 dB Input): Nominal: 79 dB, Limited: 75 dB |
| THD + N | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF Line (0 dB Input): Nominal: 0.01%, Limited: 0.02% Aux (0 dB Input): Nominal: 0.01%, Limited: 0.02% Phono (-36 dB Input): Nominal: 0.02%, Limited: 0.05% Mic (-40 dB Input): Nominal: 0.03%, Limited: 0.06% |
| Crosstalk | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal) Line (Each Channel Input at 0 dB): Nominal: 85 dB, Limited: 82 dB Phono (Each Channel Input at -36 dB): Nominal: 85 dB, Limited: 82 dB |
| Channel Separation (R/L) | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal) Line (Between L and R Channels at 0 dB Input): Nominal: 85 dB, Limited: 82 dB Phono (Between L and R Channels at -36 dB Input): Nominal: 85 dB, Limited: 82 dB |
| EQ Section | Reference Input Level, Mic/Aux, Trim Master at maximum with a 20 kHz LPF Low Band Reference Frequency: 70 Hz Middle Band Reference Frequency: 1 kHz High Band Reference Frequency: 13 kHz Maximum Level: +12 dB; Nominal: ±1 dB, Limited: ±1.5 dB (applies to all bands) Minimum Level: -25 dB; Nominal: ±1 dB, Limited: ±1.5 dB (applies to all bands) |
| Audio Card Support | USB 2.0 24-bit / 96 kHz |
| Power | Power Source: 100-240 VAC, 50/60 Hz Power Consumption: 13 W |
| Dimensions | 10.4 x 14.5 x 4.1" / 265.0 x 369.0 x 104.1 mm |
| Weight | 9.1 lb / 4.2 kg |
