End Of Life
Scan code: LN38603 Manufacturer code: MN-WD150B

MicroNEXT MN-WD150B 150Mbps USB Wireless Adapter

MicroNEXT MN-WD150B WiFi N 150Mbps USB 2.0 Adapter

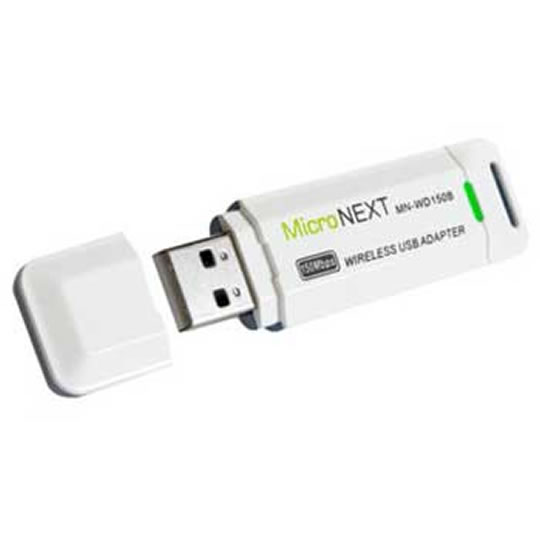

Thumbnail 1 : MicroNEXT MN-WD150B 150Mbps USB Wireless Adapter
MicroNEXT MN-WD150B 150Mbps USB Wireless Adapter : image 1
Scan code: LN38603 Manufacturer code: MN-WD150B
End Of Life
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview The MicroNEXT MN-WD150B Wireless N USB Adapter complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, and IEEE 802.11b standards. Wireless transmission rates can reach up to 150Mbps.

The USB adapter with internal Omni-directional antennas works well with other 11g and 11n protocol wireless products

This product can also simultaneously operate bandwidth intensive applications using a lot of bandwidth which are sensitive to interruption. When using multiple bandwidth intensive applications, the most sensitive of these applications can be given priority over the others to be allocated more bandwidth in order to assure quality.
Features Features
Complies with IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b standards

Provides USB 2.0 Hi-Speed interface
20/40MHz interoperable channels dramatically increase performance
Up to 150Mbps data transfer rate in 802.11n mode of operation
Supports Wi-FI Protected Security (WPS), supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
Simple Configuration and monitoring
Supports Roaming technology, guaranteeing efficient wireless connections.
Simple and easy to use user manageable software for a relaxed easy configuration of wireless client.
Compatible with 802.11g and 11b equipment, Intel Centrino Compatibility tested
Supports Windows 2000/XP/Vista OS
Internal Antenna

Specifications

Standard IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Interface USB2.0
Frequency Range 2.4GHz-2.4835GHz
Radio Data Rate 11n: 150/135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M(adaptive)
11b: 11/5.5/2/1M(adaptive)
Channel 1~11 (US, Canada) ; 1~13 (Europe) ; 1~14 (Japan)
Spread Spectrum DSSS
Modulation BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Transmission Distance Indoor up to 100m , outdoor up to 300m (it is limited in an environment)
Receive [email protected] 11n: [email protected]% PER
11g: [email protected]% PER
11b: [email protected]% PER
Transmit Power 17dBm
Antenna plus 2dBi
LED Indicator Status
Data Security WPA; 64/128-bit WEP; TKIP/AES
Environment Operating Temperature: 0?~40? (32?~104?)
Operating Humidity: 10%~90% non-condensing
Dimensions 58mm*20mm*10mm

Operation System WIN2000/XP/VISTA/Win7

Package Contents
802.11n Wireless USB Adapter
User Manual
Software CD
